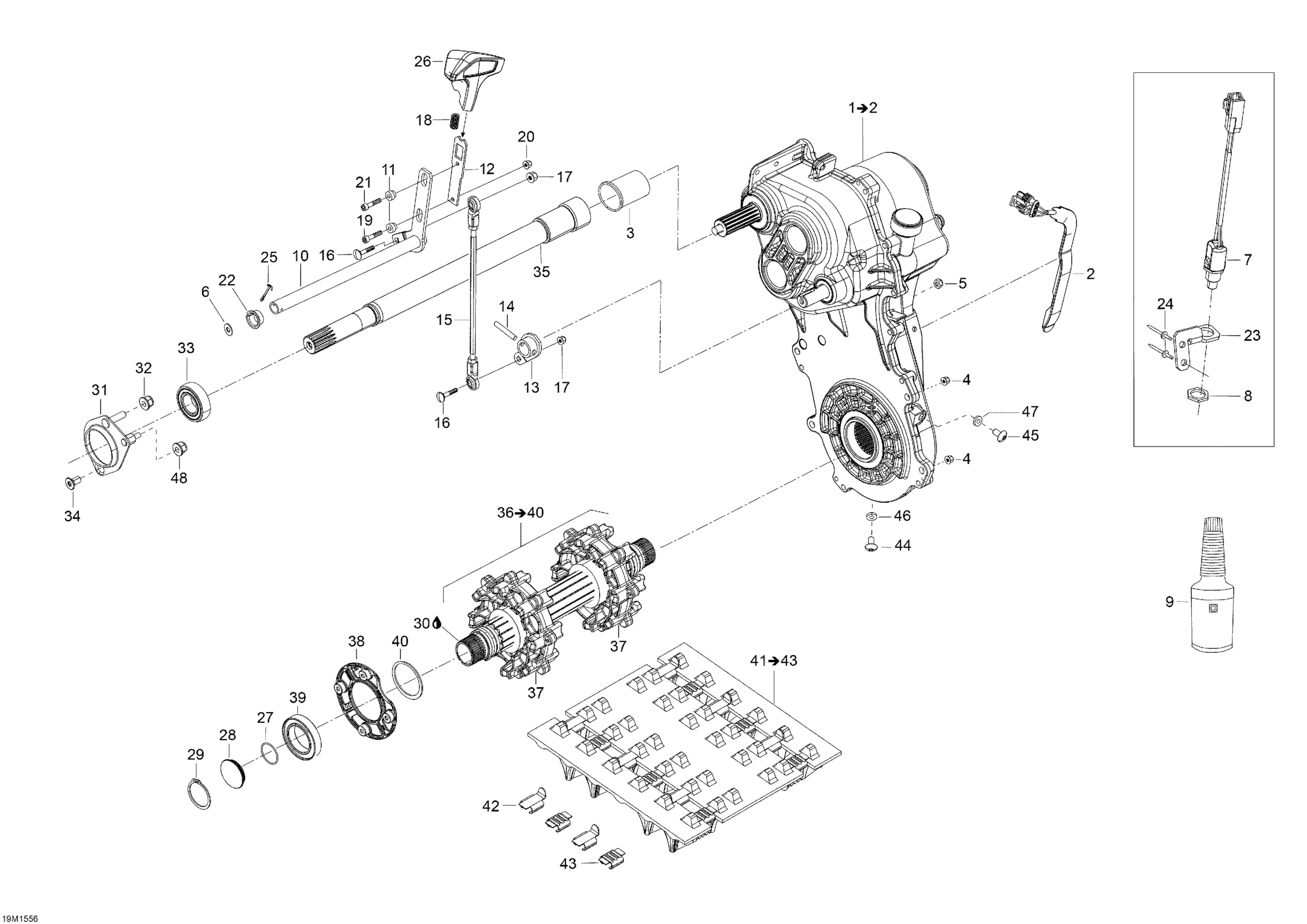

Ski-Doo Expedition LE 900 ACE, 2015 05- Drive System _19M1556 Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2.00

2

Rotation Sensor

504152896

$37.99

3

Protective Rubber

504153054

$17.49

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Washer

503189273

$3.28

7

Switch Ass'y

515176472

$72.99

8

Brass Nut

250000373

$7.51

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Lever Shifter

504153288

$154.99

11

Sleeve

504152787

$28.49

12

Shifter Arm

504153287

$51.99

13

Welded Lever | Gear Box 1.98

504153280

$88.99

14

Pin

41012

$6.39

15

Shifter Rod

504153258

$45.99

16

Carriage Bolt M6 X 20

250000677

$2.11

17

Elastic Stop Nut M6

232561434

$1.99

18

Spring

504152882

$38.99

19

Socket Screw M5 X 25

205052544

$1.68

20

Flange Elastic Nut M5

233251434

$2.00

21

Forming Screw M5 x 16

250000676

$1.01

22

Bushing

504152890

$42.49

23

Sensor Bracket

504152902

$17.99

24

Rivet Hucklok

293150163

$2.99

25

Cotter Pin

250400035

$2.11

26

Handle

504152837

$80.99

27

O-Ring

293300122

$2.11

28

Magnetic Cap

504152619

$23.49

29

Circlip

504152572

$6.95

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Bearing Housing

504153187

$29.49

32

Hex. Flange Elastic Nut M8

233281414

$1.47

33

Ball Bearing

293350074

$38.49

34

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

35

Counter Shaft | Gear Box 2.30

504152963

$248.99

36

Drive Axle Ass'y | With Gear Box 1.98

504153976

$529.99

37

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Retaining Ring

504153886

$21.99

39

Ball Bearing

293350059

$30.99

40

Shim

504153207

$12.49

41

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Allen Screw M8 x 10

619230037

$6.03

45

Allen Screw M10 x 16

619230038

$4.02

46

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

47

Seal Ring

619230047

$4.02

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
