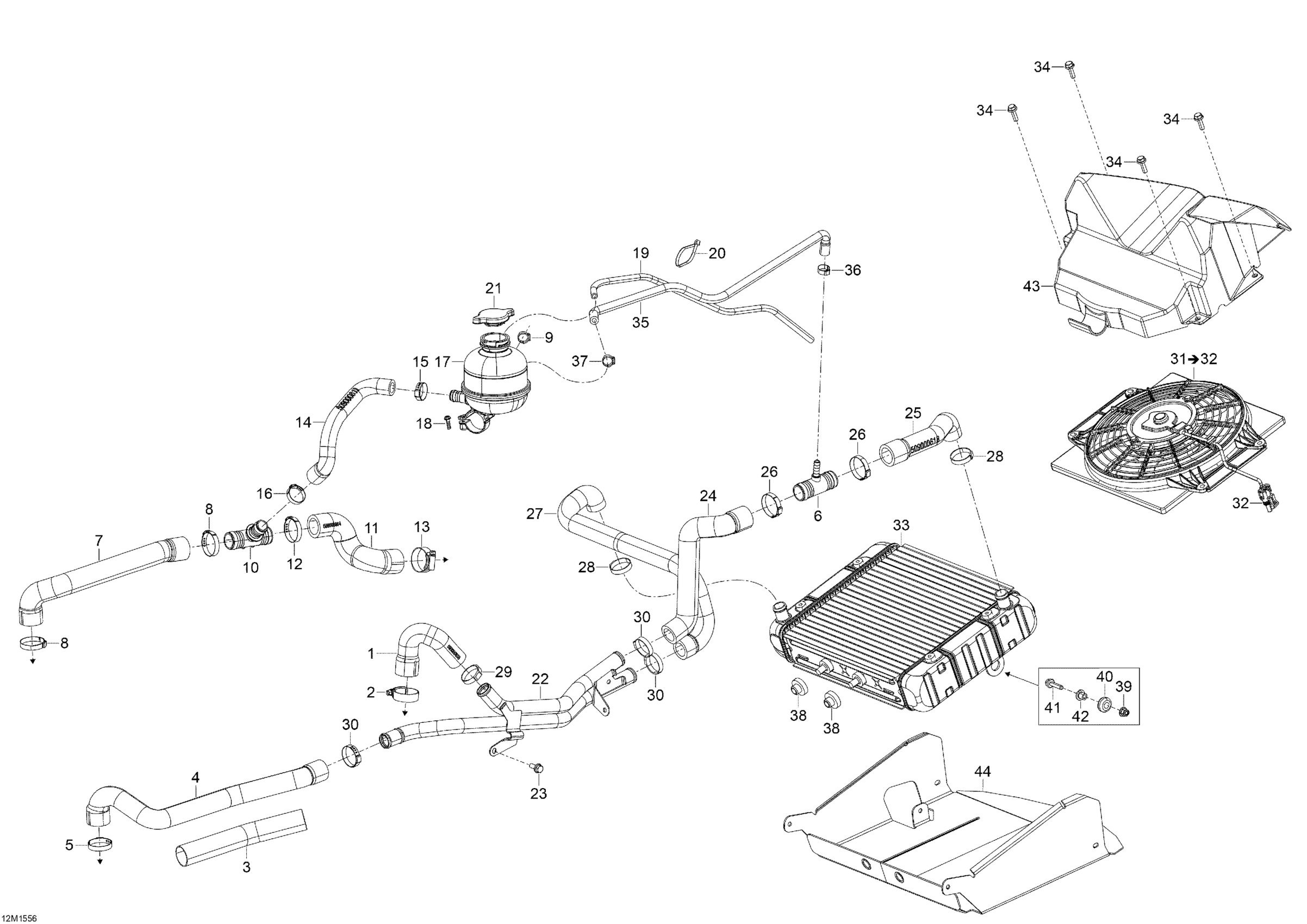

Ski-Doo Expedition LE 900 ACE, 2015 Cooling System _12M1556 Diagram

#

Description
Price

1

Engine Outlet Hose | Engine 900 ACE Expedition

509000858

$17.66

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

4

Hose

509000634

$23.82

5

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

6

T-Fitting

509000510

$11.52

7

Radiator Return Hose

509001062

$14.54

8

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

9

Oetiker Gear Clamp

293650025

$2.46

10

T-Fitting

509000372

$7.87

11

Engine Inlet Hose | Engine 900 ACE

509000864

$13.58

12

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

13

Aba Gear Clamp, 26-38 MM

509000443

$5.68

14

Filling Hose

509001063

$13.58

15

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

16

Crimp Clamp

293650099

$4.60

17

Cooling Tank

509000875

$86.89

18

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

19

Hose

509000775

$9.86

20

Tie-Rap 180 mm

414115200

$0.09

21

Radiator Pressure Cap

509000180

$11.69

22

Water Pipe

509000800

$105.35

23

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

24

Radiator Hose

509000617

$13.60

25

Radiator Hose

509000618

$13.60

26

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

27

Radiator Hose

509000560

$18.43

28

Oetiker Gear Clamp

293650165

$4.32

29

Oetiker Clamp

293650141

$4.28

30

Clamp

509000735

$5.86

31

Fan Ass'y | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

509000692

$225.35

32

Male Connector, 2 Circuits

278000220

$11.02

32

Female Terminal

409007300

$0.36

33

RADIATOR - Call your local BRP dealership

509000691

Unavailable

34

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

35

Breather Hose

509000860

$23.05

36

Crimp Clamp, 15.3-706R

293650047

$2.64

37

Oetiker Gear Clamp

293650025

$2.46

38

Grommet

709200285

$7.09

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Grommet

709000582

$4.38

41

Hex. Flange Screw M6 X 25

207662544

$0.53

42

Bushing

293900100

$6.31

43

Outlet Duct Ass'y

509000866

$43.05

44

RADIATOR SUPPORT - Call your local BRP dealership

509000865

Unavailable
