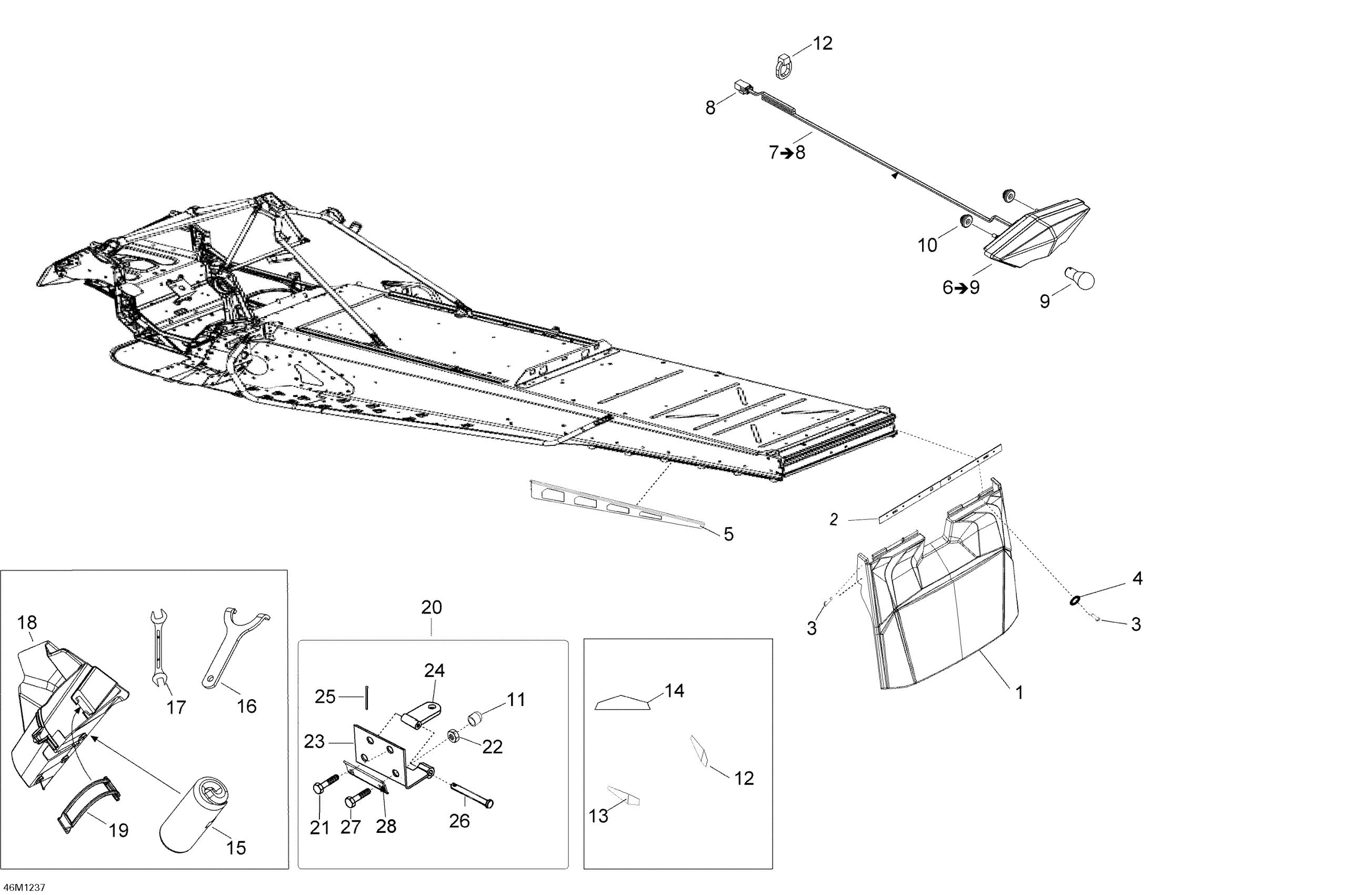

Ski-Doo Expedition LE 600HOETEC XU, 2012 09- Utilities Diagram

#

Description
Price

1

Snow Guard

520001406

$85.49

2

Plate

520001021

$37.99

3

Forming Screw M5 x 16

250000676

$1.01

4

Washer M5

250200025

$0.74

5

RH Protector

520000693

$52.99

5

LH Protector

520000694

$52.99

6

Rear Light Ass'y

520000587

$105.99

7

Rear Wiring Harness

520000849

$53.99

8

Male Housing, 3 Circuits

515175494

$16.18

9

Bulb

520000758

$9.10

10

Stopper Rubber

705014429

$5.95

11

Cover | Model-T3

28056

$5.89

12

Yellow, RH Reflector

520001600

$33.99

13

Yellow, LH Reflector

520001601

$33.99

14

Red, Lateral Reflector

705003412

$15.49

15

Tool Kit | Includes 20 To 28

529000065

$55.99

16

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

19

Latch

520000528

$7.69

20

Hitch Ass'y | Includes 3600 to 3600a

520001398

$72.99

21

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$82.99

24

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

$42.99

25

Cotter Pin

41031

$7.65

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Bolt Carriage M8 X 40

207784044

$1.15

28

Plate

520000727

$36.99
