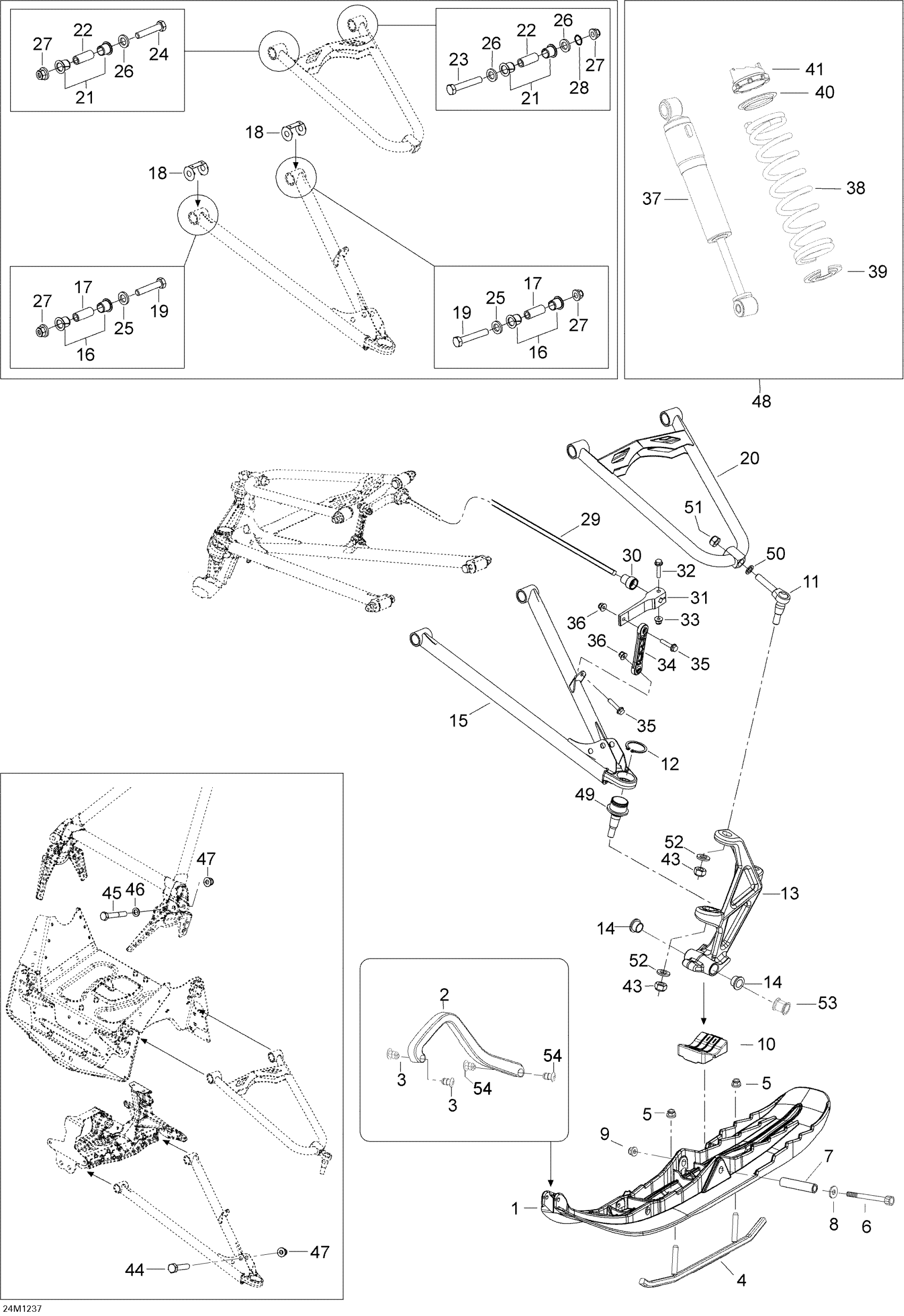

Ski-Doo Expedition LE 600HOETEC XU, 2012 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

2

Black, Handle

505070963

$35.35

3

Retainer 17mm long

505071812

$4.43

4

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

7

Spacer

506133300

$19.97

8

Washer

732900049

$0.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Ski Stopper

505071779

$16.12

11

Upper Ball Joint

505072257

$16.89

12

Circlip

293370035

$2.55

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$189.20

13

Clear RH Ski Leg

505073012

$233.05

14

Leg Bushing

505072690

$5.92

15

Black, RH Lower Arm

505072497

$193.82

15

Black, LH Lower Arm

505072498

$193.82

16

Bushing

505072208

$3.14

17

Sleeve

505072209

$14.38

18

Wear Plate

505072634

$4.45

19

Screw Hex. M10 X 70

250001024

$1.74

20

Upper Arm

505072375

$143.05

21

Bushing

505072250

$3.14

22

Sleeve

505072143

$8.62

23

Screw Hex. M10 X 60

250001023

$1.74

24

Screw Hex. M10 X 50

250001022

$1.42

25

Washer

503189564

$0.72

26

Washer

505072392

$4.65

27

Hex. Flange Elastic Nut M10

250100165

$0.70

28

O-Ring

505072448

$2.25

29

Stabilisator

505072602

$71.99

30

Bushing

505072064

$2.22

31

Stabilisator Lever

505072394

$16.12

32

Hex. Flange Screw M6 X 30

207663046

$1.42

33

Elastic Flange Nut M6 X 1.0

233261416

$1.74

34

Sway Bar Double Joint Link

505072204

$19.20

35

Hex. Flange Screw M6 X 30

207663046

$1.42

36

Elastic Flange Nut M6 X 1.0

233261416

$1.74

37

Front Shock

505072517

$238.43

38

Full Moon Spring 300mm-14 N/MM

503192286

$50.74

39

Spring Seat

230076

Unavailable

40

Spring Guide

503191872

$2.18

41

Adjustment Cam

505073625

$12.18

43

Hex. Elastic Hex. Nut M12

250100089

$0.39

44

Hex. Screw M10 X 55

207005544

$1.85

45

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

46

Washer

503189564

$0.72

47

Hex. Flange Elastic Nut M10

233201414

$1.26

49

Ball Joint

505073636

$49.97

50

Washer

503189276

$3.20

51

Hex. Elastic Hex. Nut M12

250100089

$0.39

52

Flat Washer 12 mm

234021410

$0.68

53

Spacer

505071999

$12.69

54

Retainer 23mm Long

505072133

$5.03
