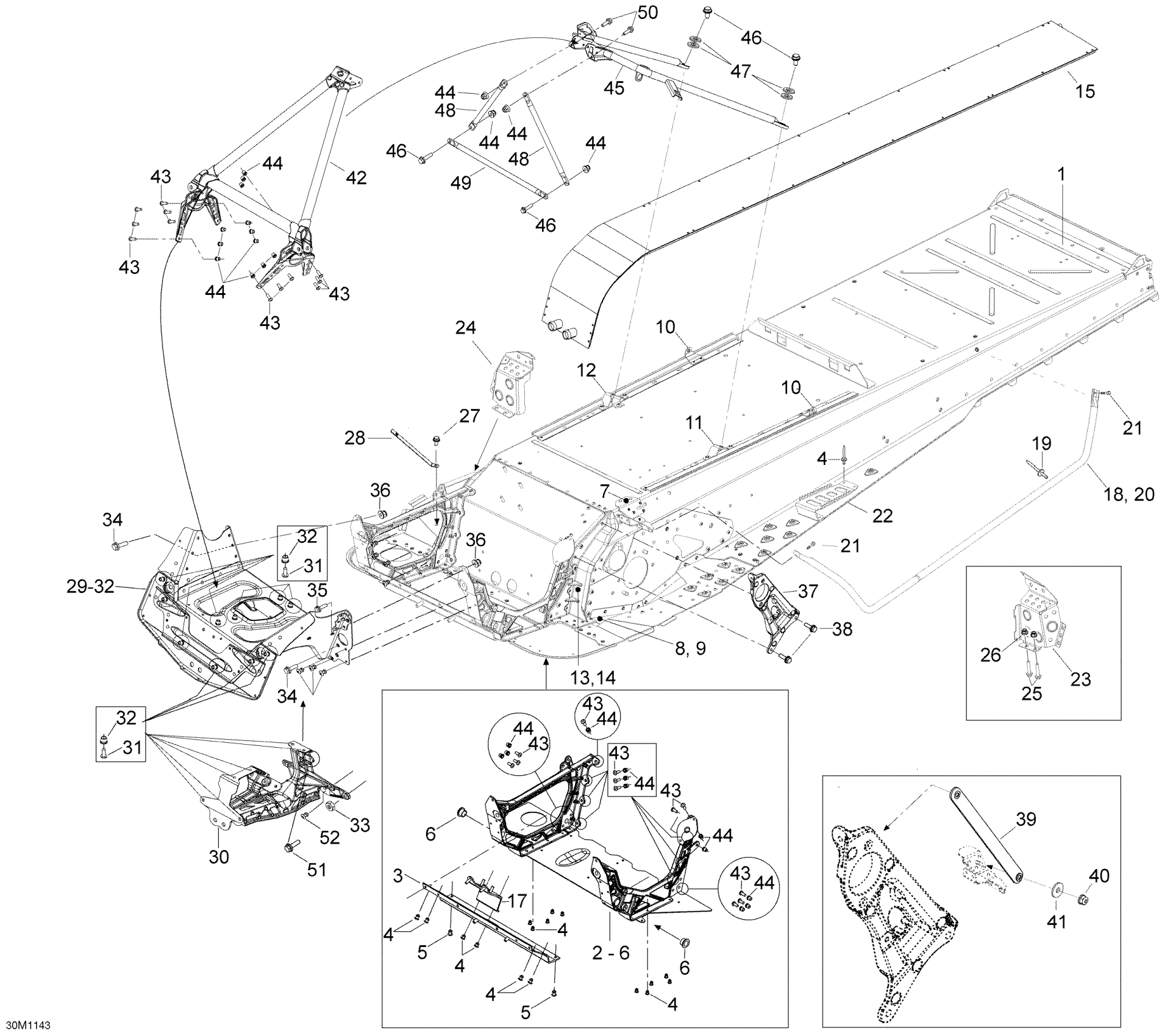

Ski-Doo Expedition LE 600HOETEC XU,2011 09- Frame Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 12

518326712

Unavailable

2

Module E | Includes 2 To 12

518328186

$989.99

3

Front Member

518326198

$64.99

4

Hemlock Rivet, 6.5 mm

293150119

$4.29

5

Hemlock Rivet 6.5 mm

293150120

$7.41

6

Leg Bushing

505072690

$12.49

7

Fastening Bracket

605355235

$56.99

8

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

9

Drive Axle Cover L.H.

518326658

Unavailable

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

12

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

13

LH Frame Corner

518325524

$56.99

14

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

15

Radiator

509000975

$826.49

17

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

18

LH Footboard Support Tube

518326963

$139.99

19

Rivet Hucklok

293150163

$2.99

20

RH Footboard Support Tube

518326964

$139.99

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$19.99

23

LH Toe Hook

518326464

$52.99

24

TOE HOOK RH - Call your local BRP dealership

518326465

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Torx Screw M6 X 20

250000722

$1.68

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

30

Front Suspension Support

518327487

$289.99

31

Hex. Flange Screw M6 X 20

207662044

$2.00

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Hex. Flange Elastic Nut M8

233281414

$1.47

34

Hexagonal Head Screw

210262050

$2.11

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

PULLEY SUPPORT - Call your local BRP dealership

518327372

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

39

DRAFT BAR - Call your local BRP dealership | Optional

518326449

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Flat Washer M8

234081430

$2.11

42

Front Member

518326970

$299.99

43

Hex. Flange Screw M6 X 20

207662044

$2.00

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

$199.99

46

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Upper Lateral Column Support

518325114

$22.49

49

Center Column Support

518325115

$22.49

50

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

51

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

52

Ornit Rivet 6,5 X 14.5

293150266

$2.40
