Description

Price

1

Gasket 0.5 mm

420431160

$17.53

1

Gasket 0.6 mm

420431161

$23.49

1

Gasket 0.7 mm

420431162

$23.49

1

Double Gasket 0.8 mm

420431163

$23.49

2

Cylinder

420623263

$457.99

2

Cylinder

420623263

$457.99

3

Hex. Collar Screw

420640524

$13.16

4

Hex. Collar Screw

420640534

$14.28

5

Rubber Ring

420931590

$6.19

6

O-Ring This part replaces 420850540.

293300026

$3.39

7

HEAD CYLINDER COVER - Call your local BRP dealership This part replaces 420623294.

420623296

Unavailable

8

Hex. Screw M8 X 56.5

420941627

$8.57

9

Hose Nipple

420924724

$14.83

10

Noise Sensor

270000484

$82.99

11

Hex. Screw M8 X 35

207083544

$1.15

12

Gasket

420430930

$4.99

13

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

14

Crush Ring

415129497

$7.99

15

O-Ring

415129498

$13.49

16

O-Ring

415129499

$7.39

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

18a

Temperature Sensor This part replaces 420664508.

420664509

$149.99

18b

Female Terminal Housing, 2 Circuits

515175670

$8.39

18c

Female Terminal

278000632

$2.09

19

Molded Hose

420460867

$19.99

20

Clamp

420853511

$7.51

21

Intake Socket With Reed Valve | Includes 22 to 25 This part replaces 420667532.

420667533

$232.99

22

Reed Pedal

420924680

$38.99

23

Reed Pedal Stop

420924695

$15.28

24

Phillips Screw M3 X 5

420941215

$1.69

25

Clamp

420851250

$10.33

26

Tapping Screw M5 X 22

420841550

$1.69

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Clamp

420851065

$14.28

29

Throttle Body

420889201

$1.00

30

Position Sensor

420866120

$98.99

31

Flat Washer 4 mm, Stainless

234041600

$1.15

32

Phillips Screw M4 X 16

208641660

$0.90

33

Gasket

420850552

$8.85

34

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

35

Gasket Set, Engine

420889924

$190.49

36

Gasket Set, Cylinder

420889928

$163.99

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

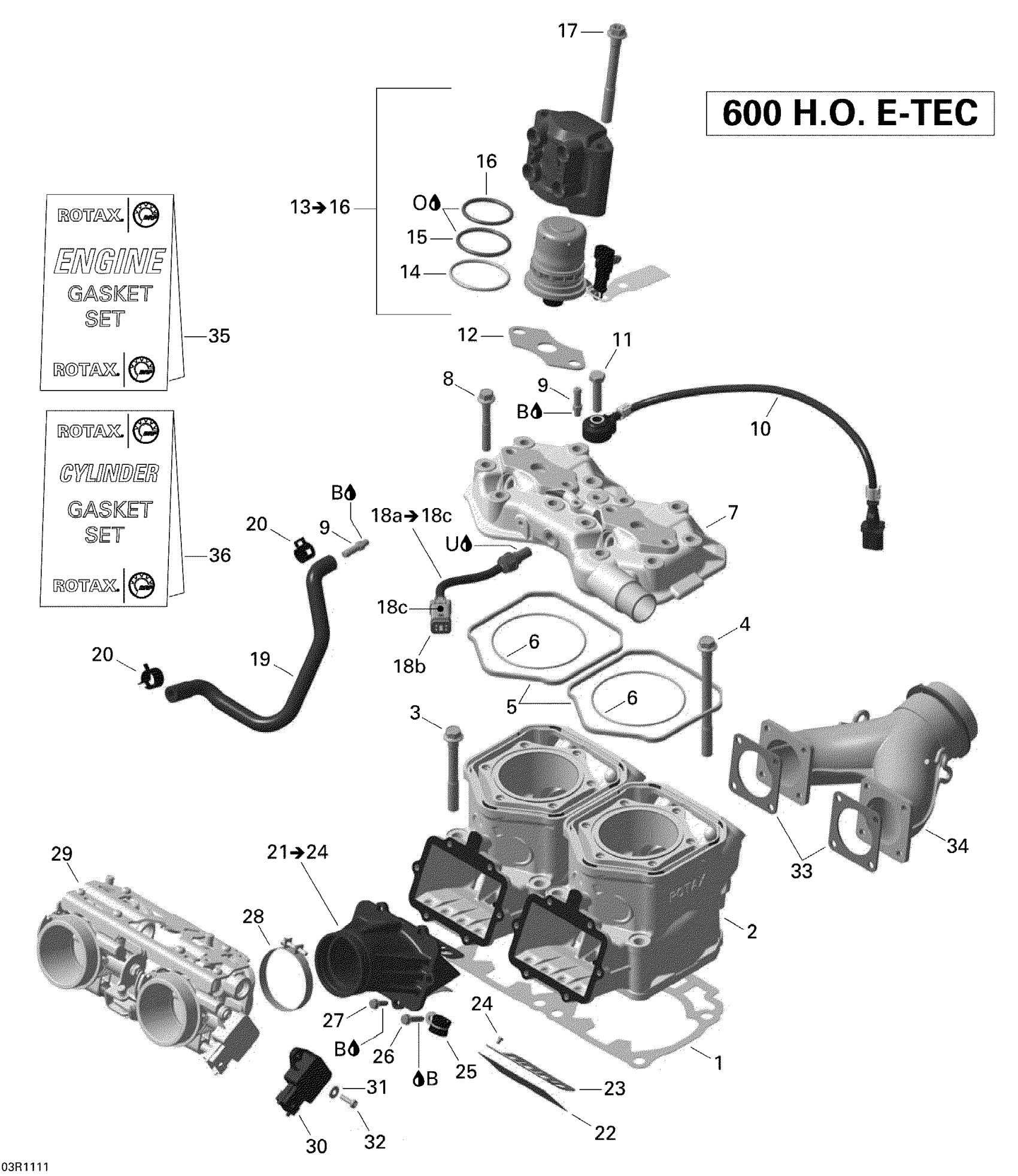

Ski-Doo Expedition LE 600HOETEC XU,2011 01- Cylinder And Injection System Diagram
