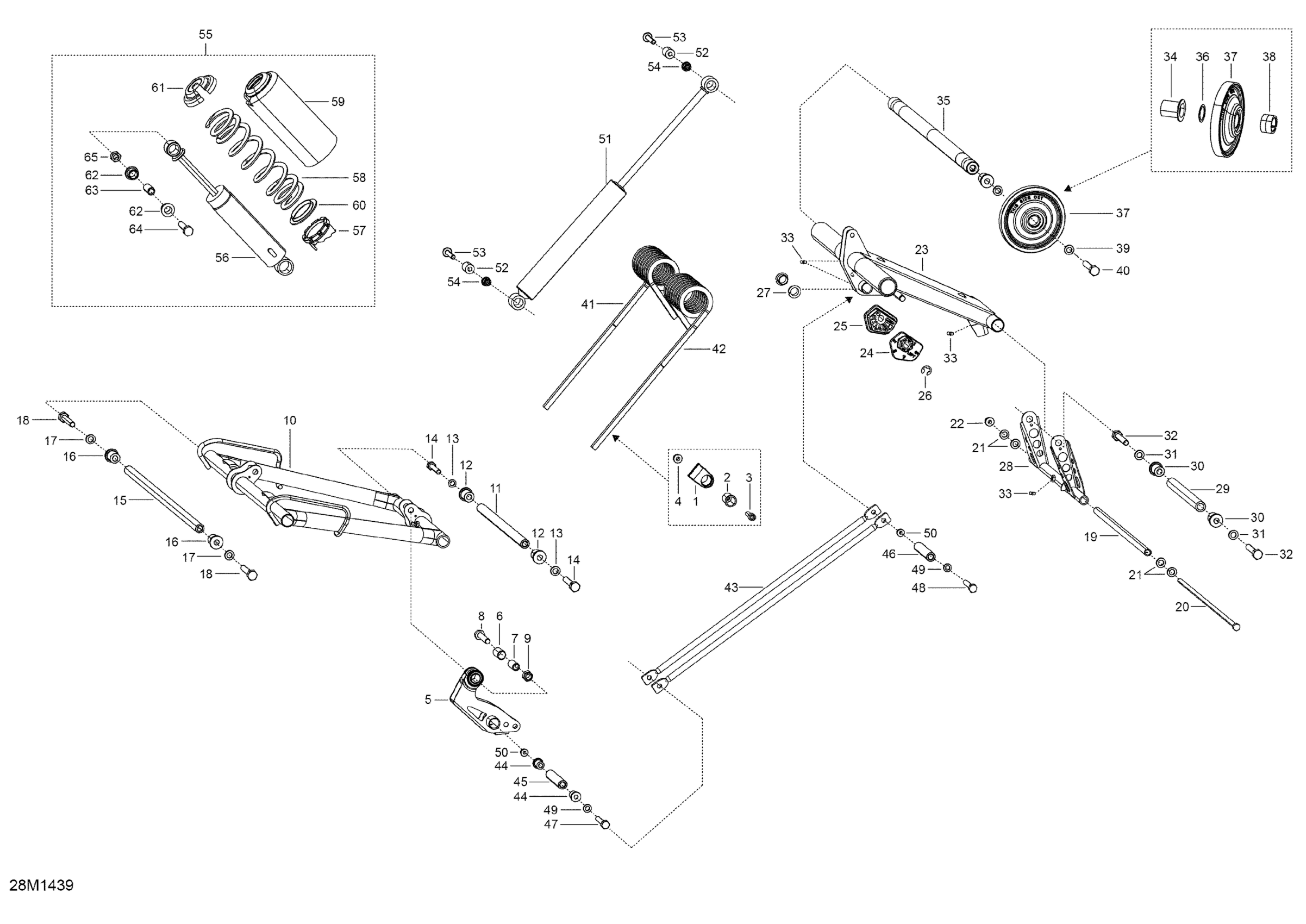

Ski-Doo EXPEDITION LE 600HOE, XU, 2014 Rear Suspension B Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Rocker

503192211

$78.43

6

Bushing

503193037

$15.35

7

Bushing | Includes 240d to 240d1

503189282

$4.18

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$212.28

11

Lower Shaft

503191390

$27.66

12

Bushing

503189324

$11.17

13

Washer

503189564

$0.72

14

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

15

Upper Shaft

503191391

$34.58

16

Bushing

503189324

$11.17

17

Washer

503192496

$0.75

18

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

19

Axle Pivot

503191396

$78.43

20

Bolt 369MM

503195156

$25.35

21

Washer

503189157

$3.20

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

24

LH Cam Adjuster

503191565

$13.95

25

RH Cam Adjuster

503191566

$13.95

26

E-Circlip

293370013

$0.62

27

Swivel Bushing

503191555

$5.71

28

Pivot Arm | Includes 3000j to 3000j3

503195154

$96.12

29

Lower Shaft

503192330

$46.12

30

Cushion

503191640

$5.71

31

Washer | 7415/7416. 7417/7418.

503189148

$2.72

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

33

Grease Fitting

408200700

$2.80

34

Cushion

503191451

$11.17

35

Upper Shaft

503191405

$89.20

36

Washer

503190328

$11.34

37

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

38

Retaining Ring

503191099

$5.85

39

Washer

503192491

$4.38

40

Socket Screw M12 X 35

250000484

$6.18

41

Black RH Square Spring

503192377

$109.20

42

Black LH Square Spring

503192378

$109.20

43

Link Rod

503191765

$17.66

44

Swivel Bushing

503191555

$5.71

45

Axle Bar (Long)

503190643

$15.35

46

Axle Bar (Long)

503190643

$15.35

47

Hex. Screw M8 X 90

207089044

$2.82

48

Hex. Screw M8 X 90

207089044

$2.82

49

Washer

503189157

$3.20

50

Hex. Flange Elastic Nut M8

233281414

$1.14

51

Rear Shock

503193520

$238.43

52

Bushing

414936000

$11.55

53

Hex. Flange Screw M8 X 40

207684044

$1.25

54

Hex. Flange Elastic Nut M8

233281414

$1.14

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Center Shock

503192266

$157.66

56

Center Shock

503192991

$238.43

57

Adjustment Cam

505073625

$12.18

58

Black, Spring 242MM

503191880

$66.89

59

Protector

503193663

$35.35

60

Spring Guide

503191872

$2.18

61

Spring Stopper

706200881

$10.30

62

Urethane Bushing

503189117

$6.88

63

Bushing | Includes 240d to 240d1

503189282

$4.18

64

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

65

Elastic Locking Nut M10 X 1.5

233601416

$1.68
