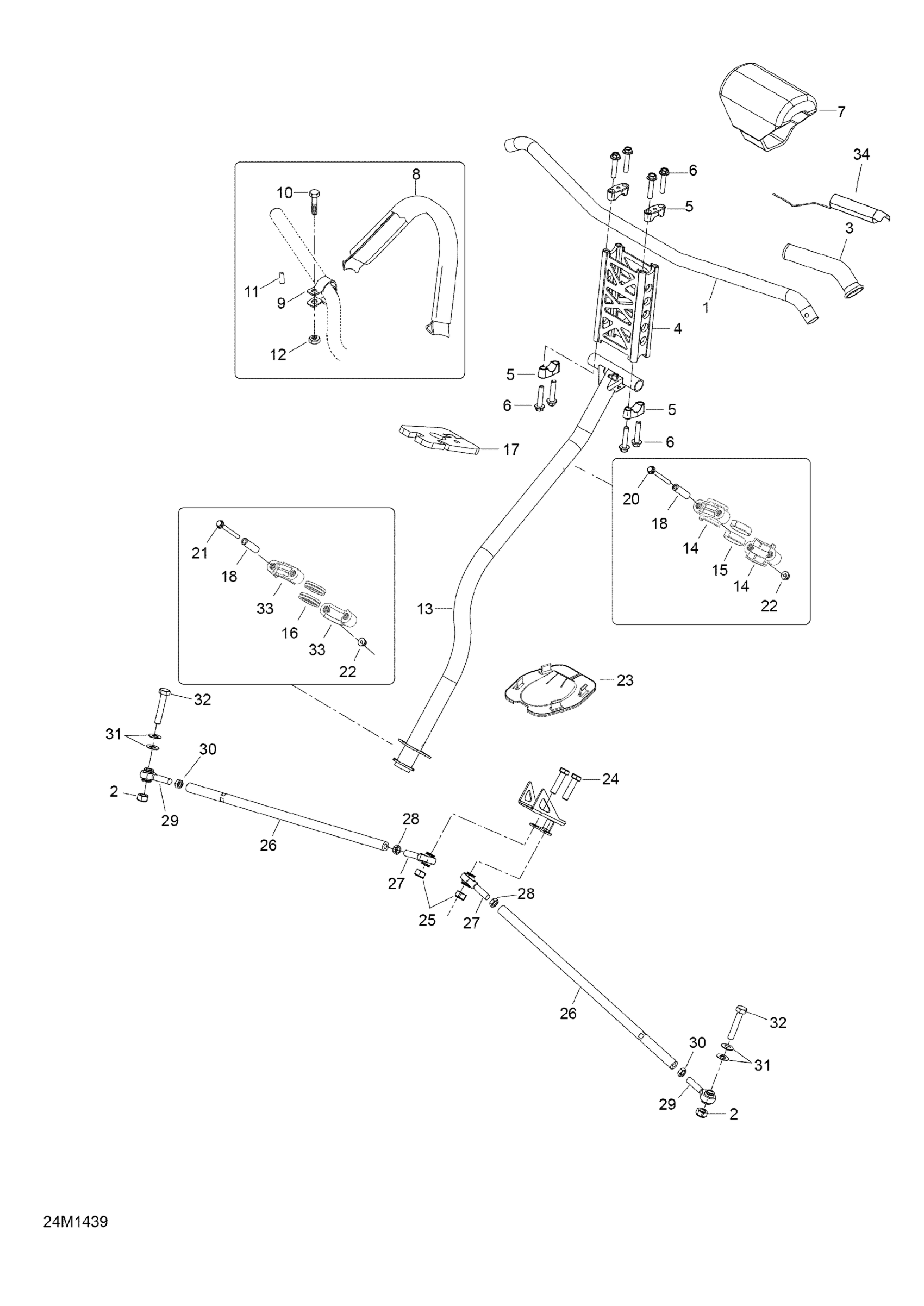

Ski-Doo EXPEDITION LE 600HOE, XU, 2014 07- Steering Diagram

Handle Bar

506152722

$148.49

Elastic Stop Nut M10

232500416

$1.90

Grip | WAKE This part replaces M5340464.

506152483

$12.17

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Hex. Flange Screw M8 x 40

250000285

$0.82

Steering Pad

506152192

$58.99

Strap Ass'y | Package XMR

506152115

$44.49

Black Support Plate

506152536

$9.19

Hex. Flange Screw M6 X 20

207662084

$1.69

Bushing | Package XMR

506152156

$5.61

Hex. Flange Elastic Nut M6

233261494

$1.58

Steering Column

506152962

$199.99

Upper Half-Housing

506152508

$9.23

Upper Anti-Vibration Gasket

506152509

$4.79

Lower Vibration Ring

506152518

$4.79

Cushion

506152404

$26.49

Housing Bushing

506152297

$12.99

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M6 X 70

207667056

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Plate

506152163

$12.99

Hex. Screw M10 X 40

207004044

$4.76

Elastic Stop Nut M10

232500416

$1.90

Tie-Rod

506152498

$38.99

LH Thread Ball Joint

506152081

$41.49

LH Threaded Hex. Jam Nut M10

250100016

$0.74

RH Threaded Ball Joint

506152019

$41.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152194

$4.55

Hex. Screw M10 X 55

207005544

$2.22

Lower Half-Housing

506152217

$7.62

Heated Film, 25W

506152428

$39.99
