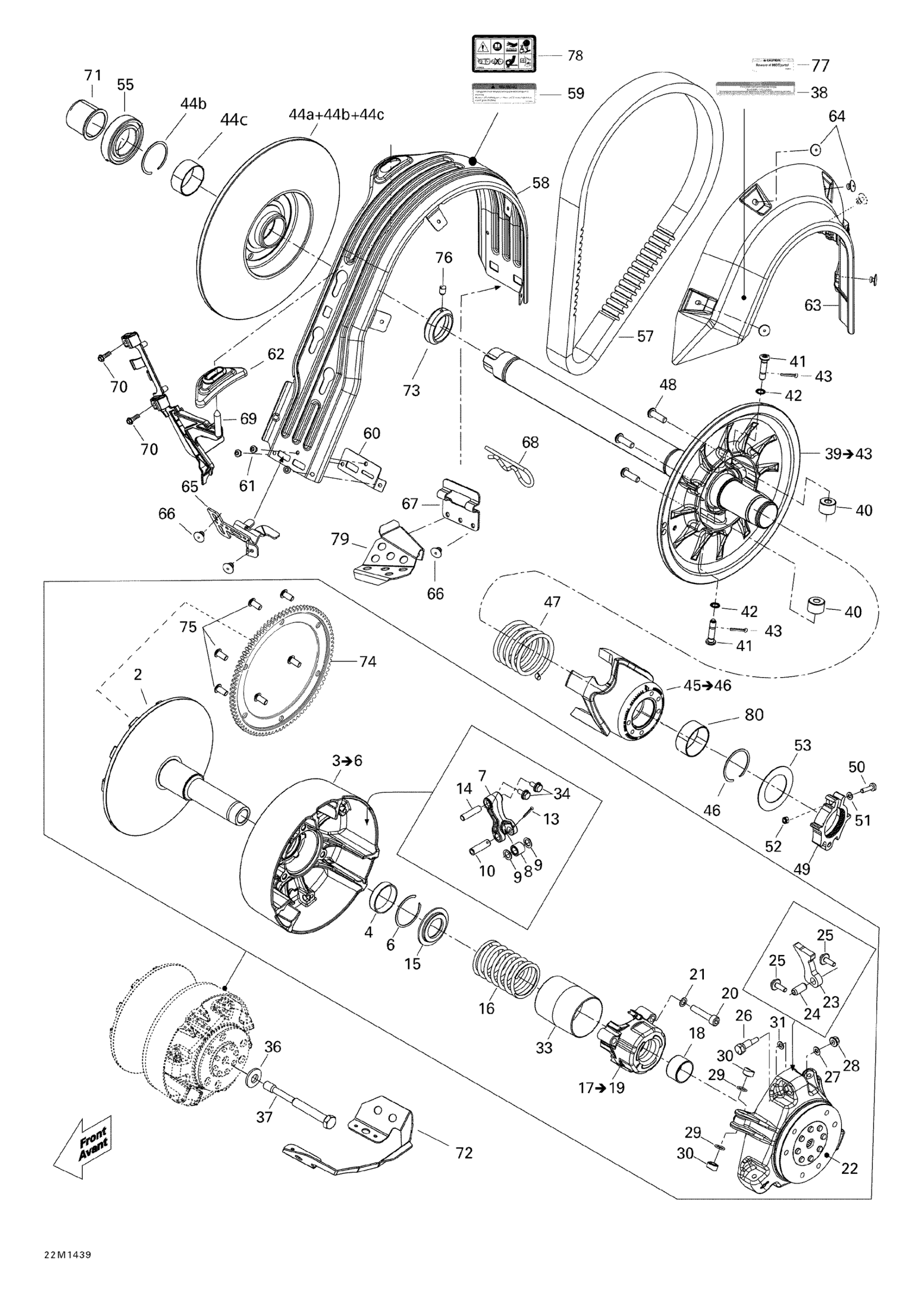

Ski-Doo EXPEDITION LE 600HOE, XU, 2014 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417223086

$33.82

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Tra Spring

414993000

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

$2.06

22

Governor Cup Ass'y

417223669

$456.89

23

Ramp 412

417222515

$32.28

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

Calibration Screw

417223501

$27.66

27

Washer

417005600

$3.86

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

O-Ring

732401030

$0.95

30

Slider Shoe This part replaces 420460045.

417223021

$6.09

31

Washer

417005600

$3.86

33

Guard

417009205

$16.89

34

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

36

Spring Washer 14 mm

250200006

$5.80

37

Drive Pulley Bolt

417120000

$63.82

38

DECAL - Call your local BRP dealership

516004303

Unavailable

39

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$433.82

40

Roller

417127189

$44.58

41

Pivot Stud

417127294

$13.58

42

Lock Washer 8 mm

250200009

$2.06

43

Spring Pin M3 X 18

250400061

$1.74

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

44b

Circlip

293370049

$4.71

44c

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

45

Cam Ass'y

417127411

$164.99

46

Circlip

293370049

$4.71

47

Spring, White

417127243

$42.28

48

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

49

Calibration Ass'y

415129604

$22.49

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

$0.44

52

Elastic Stop Nut M5

232551414

$0.72

53

Washer

417127155

$8.03

55

Ball Bearing

504152574

$34.58

57

Drive Belt

417300551

$170.99

58

Belt Guard

417300382

$85.35

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

$0.29

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

$0.54

65

Belt Guard Bracket

417300364

$28.43

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

67

Belt Guard Bracket | Except Package SWT

417300363

$12.20

68

Hair Pin

114045200

$10.69

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

71

Protective Rubber

504153054

$16.12

72

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

73

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

74

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

75

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

76

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

77

Decal English

516005503

Unavailable

78

Warning Decal | Europe

516003919

$7.65

79

Brake Hose Cover | Except Package SWT

518325626

$28.43
