Description

Price

1

FUEL TANK - Call your local BRP dealership

513033635

Unavailable

2

Fuel Tank Cap 95 Octane | Europe

513033723

$26.99

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Grommet

280000674

$4.69

10

Tubing 16 Mm 1000Mm Long

219704408

$7.49

11

Fuel Pump Ass'y | Includes 13 to 15

513033643

$259.99

12

Ring

513033180

$19.99

13

Gasket

513033334

$24.49

14

Hose Ass'y

513033589

$194.99

15

Hose Ass`Y

513033631

$309.99

16

Hose Ass'y | Includes 22 to 23

513033594

$88.99

17

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

18

Fuel Filter

415129451

$25.99

19

Bracket

513033593

$18.99

20

Bracket

513033542

$14.99

21

Hex. Flange Screw M5 X 10

207551044

$4.12

22

FOAM - Call your local BRP dealership

513033640

Unavailable

23

Clamp

513033628

$20.49

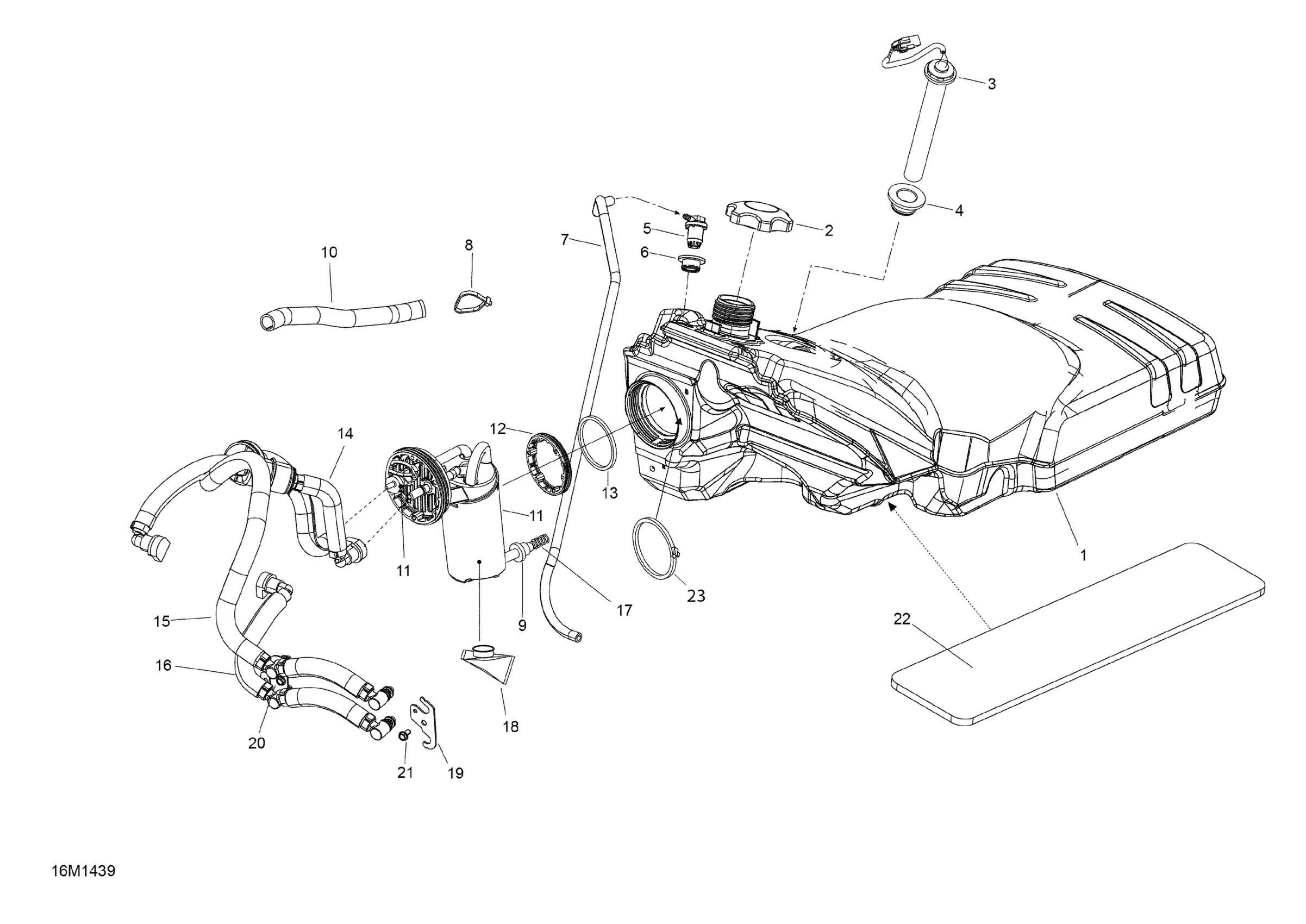

Ski-Doo EXPEDITION LE 600HOE, XU, 2014 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Fuel Tank Cap 95 Octane | Europe

Fuel Tank Cap 91 Octane

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

Grommet

Tubing 16 Mm 1000Mm Long

Fuel Pump Ass'y | Includes 13 to 15

Ring

Gasket

Hose Ass'y

Hose Ass`Y

Hose Ass'y | Includes 22 to 23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Fuel Filter

Bracket

Bracket

Hex. Flange Screw M5 X 10

FOAM - Call your local BRP dealership

Clamp
