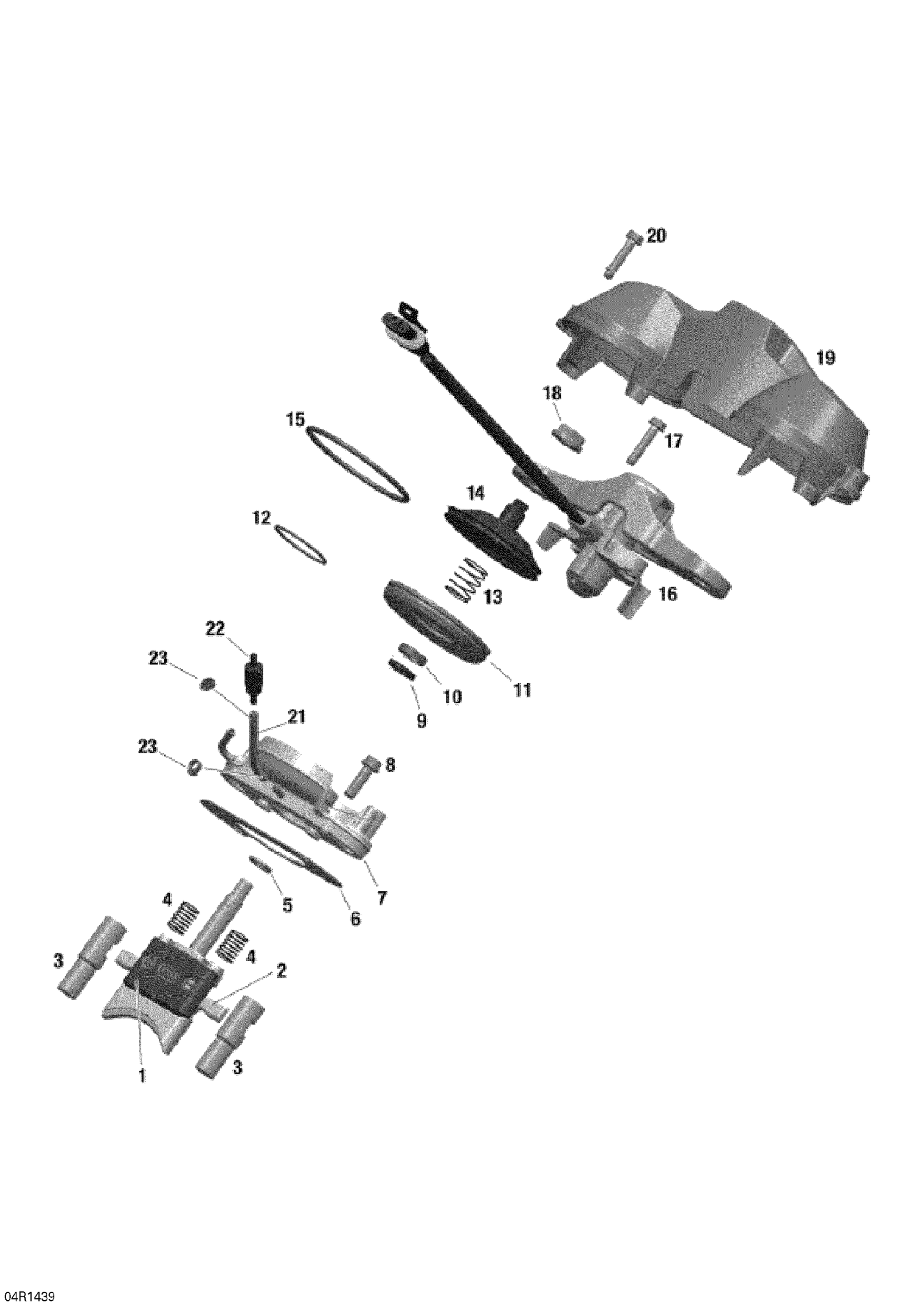

Ski-Doo EXPEDITION LE 600HOE, XU, 2014 01- RAVE Valve Diagram

Exhaust Valve, Upper

420854980

$22.49

Exhaust Valve, Lower

420854974

$63.99

Exhaust Valve

420854990

$12.49

Spring

420238558

$5.39

O-Ring

420931765

$0.98

Gasket

420430032

$19.16

Valve Housing

420854888

$99.49

Torx Flange Screw M6 X 20

420440207

$3.06

Gasket Ring

420431380

$8.57

Oil Seal | Included in gasket kit

420950732

$9.27

Bellows

420260725

$42.49

Hose Spring This part replaces 420838253.

420838255

$7.41

Spring

420238557

$5.39

Valve Cover

420854442

$35.99

Hose Spring This part replaces 420939285.

420939286

$11.60

Position Sensor

420854089

$114.99

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

Nut M12 X 1.5

420942190

$14.22

Cover

420910821

$14.22

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

Oil Hose 1500Mm Long

219704404

$17.26

Check Valve Ass’y

420956515

$8.59

Clamp

420851508

$14.22
