Description

Price

1

Black, Hood

517304812

$319.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$36.99

4

Insulator

517304214

$31.99

5

Latch Pannel

517304289

$11.49

6

Air Filter

508000609

$48.49

7

Scoop Grille

517306980

$37.99

8

Black, Console

517305220

$144.99

9

Insulator

517304318

$48.99

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

Black, RH Side Access Panel | Includes 13 to 15

517304829

$264.99

12

RH Access Panel Grille

517304015

$36.99

13

RH Lower Acces Grille

517304016

$31.99

14

Black, LH Side Access Panel | Includes 18 to 19

517304839

$294.99

15

LH Access Panel Grille

517303893

$36.99

16

Insulator

517304311

$61.99

17

Insulator

517304312

$31.99

18

Insulator

517304313

$61.99

19

Black, RH Side Panel

517306970

$249.99

20

Aluminium Foil

517304215

$19.99

21

Aluminium Foil

517304216

$22.49

22

RH Foam

517303890

$53.99

23

RH Rear Foam

517304310

$60.99

24

Black, LH Side Panel

517306973

$219.99

25

LH Foam

517303891

$52.99

26

LH Rear Foam

517304309

$60.99

27

Latch-Panel

517304572

$11.99

28

Pop Rivet 3/16”

293150108

$1.19

29

Handle Fastener Quarter-Turn

517304297

$16.99

30

Quarter-Turn Handle

517304296

$16.99

31

Locking Plate

517304538

$4.59

32

Side Panel Support | Except Package SWT

517304497

$19.99

33

Rivet

36005

$2.11

34

Black Latch Kit | Includes 390 to 400

860200239

$16.88

35

Latch-Panel

517306057

$24.49

36

Indicator Support

517304272

$179.99

37

Insulator

517304314

$62.99

38

Insulator

517304315

$31.99

39

Insulator

517304316

$31.99

40

Insulator

517304319

$31.99

41

Windshield Ass'y

860201000

$209.99

42

Button

517304744

$2.19

43

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$72.99

44

Torx Truss Screw M6 X 16

250000721

$1.69

45

Domed Nut M6

232361493

$2.11

46

Rubber Washer 5 mm

250200024

$2.19

47

Washer

20117

$6.39

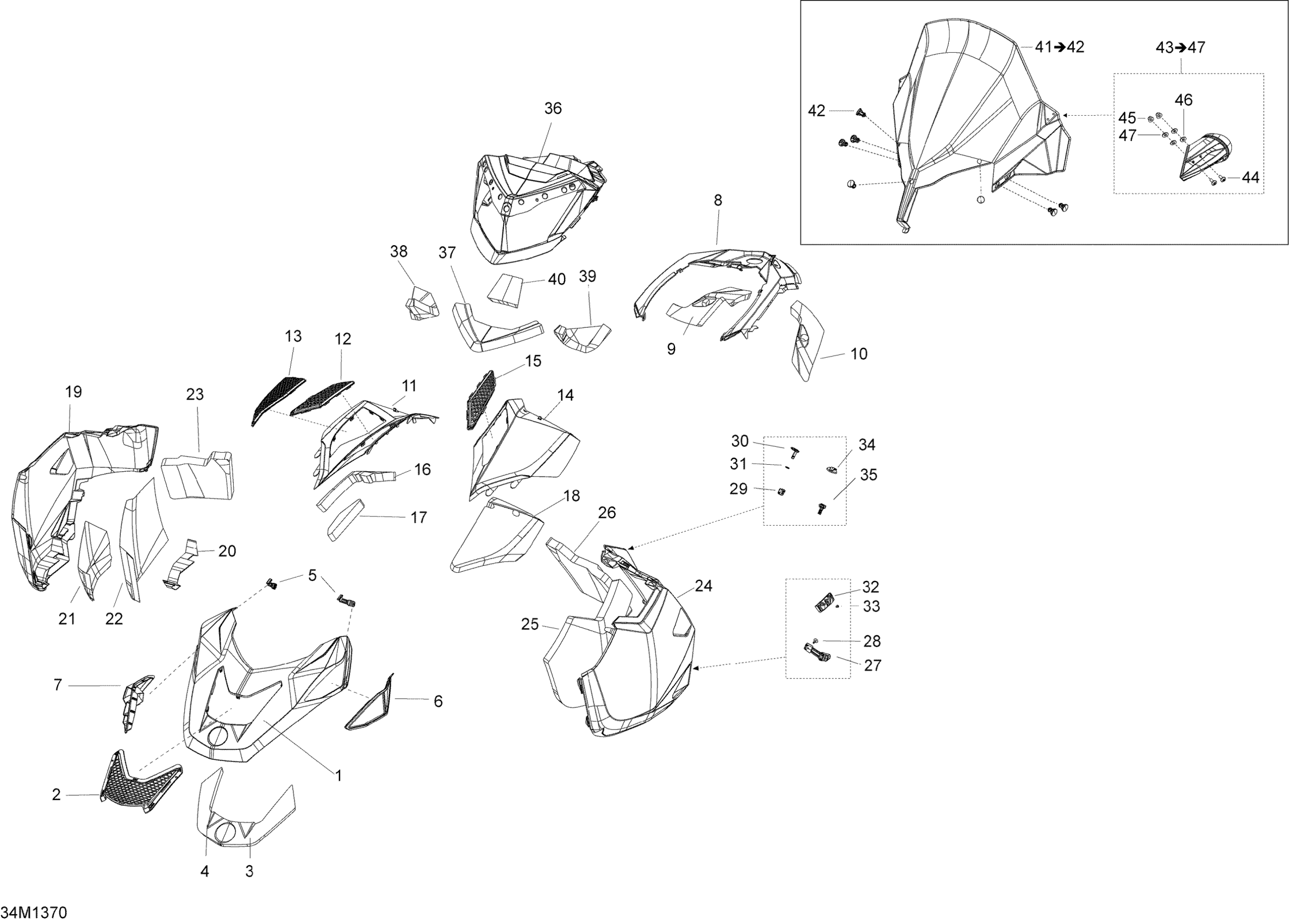

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 09- Hood Diagram

Black, Hood

Hood Grille

Insulator

Insulator

Latch Pannel

Air Filter

Scoop Grille

Black, Console

Insulator

INSULATOR - Call your local BRP dealership

Black, RH Side Access Panel | Includes 13 to 15

RH Access Panel Grille

RH Lower Acces Grille

Black, LH Side Access Panel | Includes 18 to 19

LH Access Panel Grille

Insulator

Insulator

Insulator

Black, RH Side Panel

Aluminium Foil

Aluminium Foil

RH Foam

RH Rear Foam

Black, LH Side Panel

LH Foam

LH Rear Foam

Latch-Panel

Pop Rivet 3/16”

Handle Fastener Quarter-Turn

Quarter-Turn Handle

Locking Plate

Side Panel Support | Except Package SWT

Rivet

Black Latch Kit | Includes 390 to 400

Latch-Panel

Indicator Support

Insulator

Insulator

Insulator

Insulator

Windshield Ass'y

Button

RH/LH Mirror Ass'y | Includes 50 to 54

Torx Truss Screw M6 X 16

Domed Nut M6

Rubber Washer 5 mm

Washer
