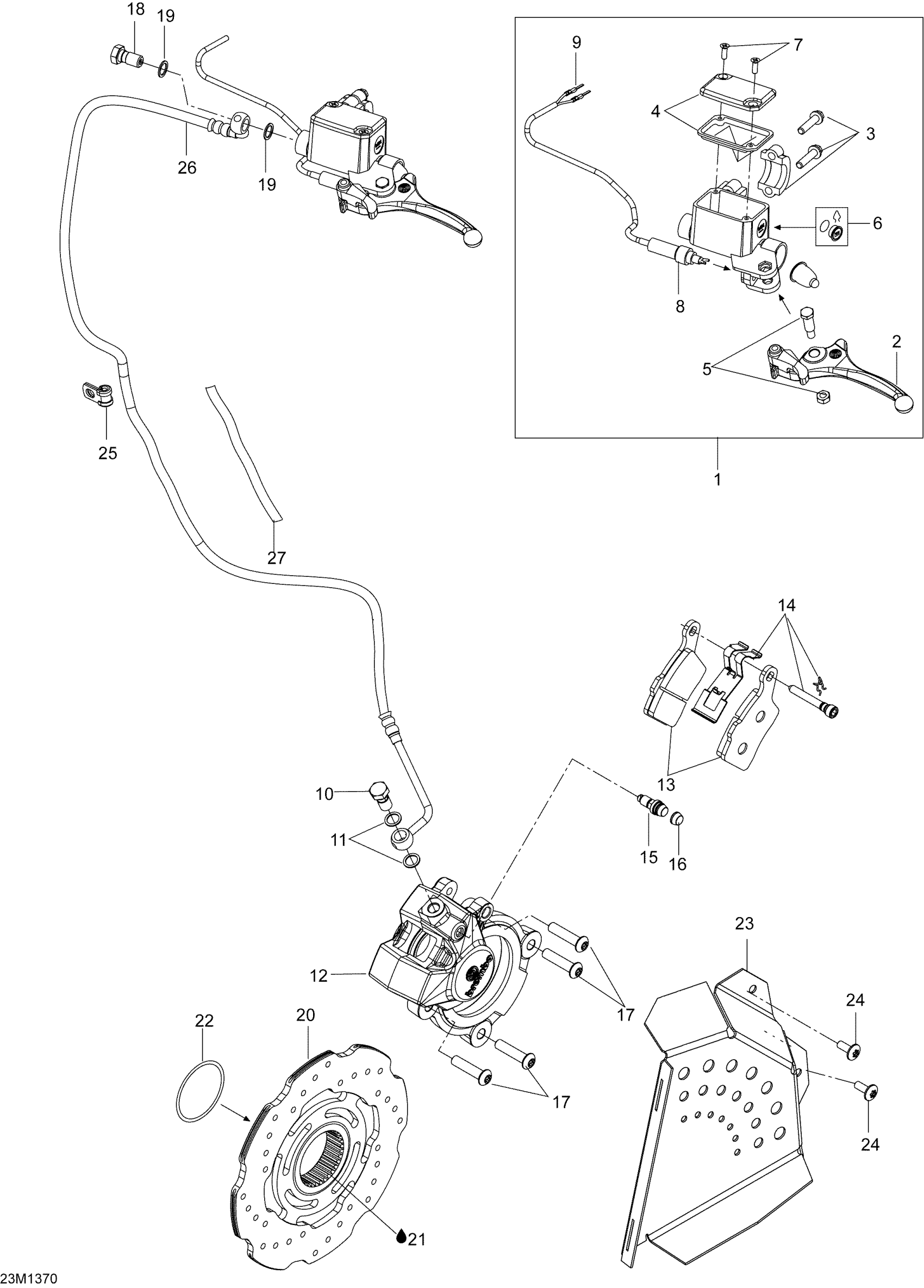

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 Hydraulic Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$299.97

2

Lever With Parking Lock

507032476

$101.51

3

Clamp And Screw Kit

507032477

$22.79

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

5

Pin Ass'y

415030000

$17.66

6

Not Available As Spare Part - Friction Washer

Unavailable

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

8

Microswitch | Grand Touring

507032479

$96.89

9

Male Terminal

515175232

$1.49

10

Banjo Bolt

507032551

$5.52

11

Copper Washer

705601628

$4.34

12

Brake Caliper | Includes 200 to 200c

507032720

$341.51

13

Brake Pads Kit

507032489

$64.32

14

Brake Spring Kit

507032722

$36.89

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

18

Banjo Bolt

507032551

$5.52

19

Copper Washer

705601628

$4.34

20

Disk

507032513

$235.35

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

$2.25

23

Disk Protector

507032525

$69.97

24

Torx Screw M6 X 16

250000365

$1.74

25

Clamp

293650256

$4.36

26

BRAKEHOSE XU, STEEL BRAIDED - Call your local BRP dealership

507032538

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

$9.40
