Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417223086

$36.99

5

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

5

Was 293800041 Loctite Primer 7649

219704458

$39.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417222594

$14.99

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

Tra Spring

414993000

$56.99

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223441

Unavailable

23

Ramp 600

417222444

$36.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

Calibration Screw

417223501

$13.99

27

Flat Washer 6 mm

234061410

$1.36

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Washer

417005600

$4.09

33

Guard

417009205

$21.99

34

Serrated Hex. Flange Bolt M6

250000416

$4.23

36

Spring Washer 14 mm

250200006

$6.99

37

Drive Pulley Bolt

417120000

$65.49

38

Decal English

516005503

Unavailable

39

Fixed Flange Ass'y | Inclus 38 à 44

417127409

$459.99

40

Roller

417127189

$25.99

41

Pivot Stud

417127294

$14.49

42

Lock Washer 8 mm

250200009

$2.11

43

Spring Pin M3 X 18

250400061

$2.11

44a

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

44b

Circlip

293370049

$4.99

45

Cam Ass'y

417127411

$159.49

46

Circlip

293370049

$4.99

47

Spring, White

417127243

$43.49

48

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

49

Calibration Ass'y

415129604

$21.49

50

Socket Screw M5 X 25

205052544

$1.68

51

Flat Washer M5

234051410

$0.53

52

Elastic Stop Nut M5

232551414

$0.87

53

Washer

417127155

$8.26

55

Ball Bearing

504152574

$35.99

56a

Loctite 609, 10 ml

413703100

$26.99

56b

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300551

$179.99

58

Belt Guard

417300382

$90.99

59

Security label, Belt Guard

516004649

Unavailable

60

Reinforcement

417300380

$7.29

61

Avex Rivet

390909200

$0.30

62

Guide

417300381

$11.99

63

Side Protector

417300356

$14.76

64

Pop Rivet 3/16"

293150103

$0.55

65

Belt Guard Bracket

417300364

$29.99

66

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

67

Belt Guard Bracket | Except Package SWT

417300363

$14.49

68

Hair Pin

114045200

$11.11

69

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

71

Protective Rubber

504153054

$17.49

72

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

73

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

74

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

75

Torx Screw M8 X 16

250000751

$6.11

76

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

77

Decal English

516005503

Unavailable

78

Warning Decal | Europe

516003919

$8.09

79

Brake Hose Cover | Except Package SWT

518325626

$29.99

80

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

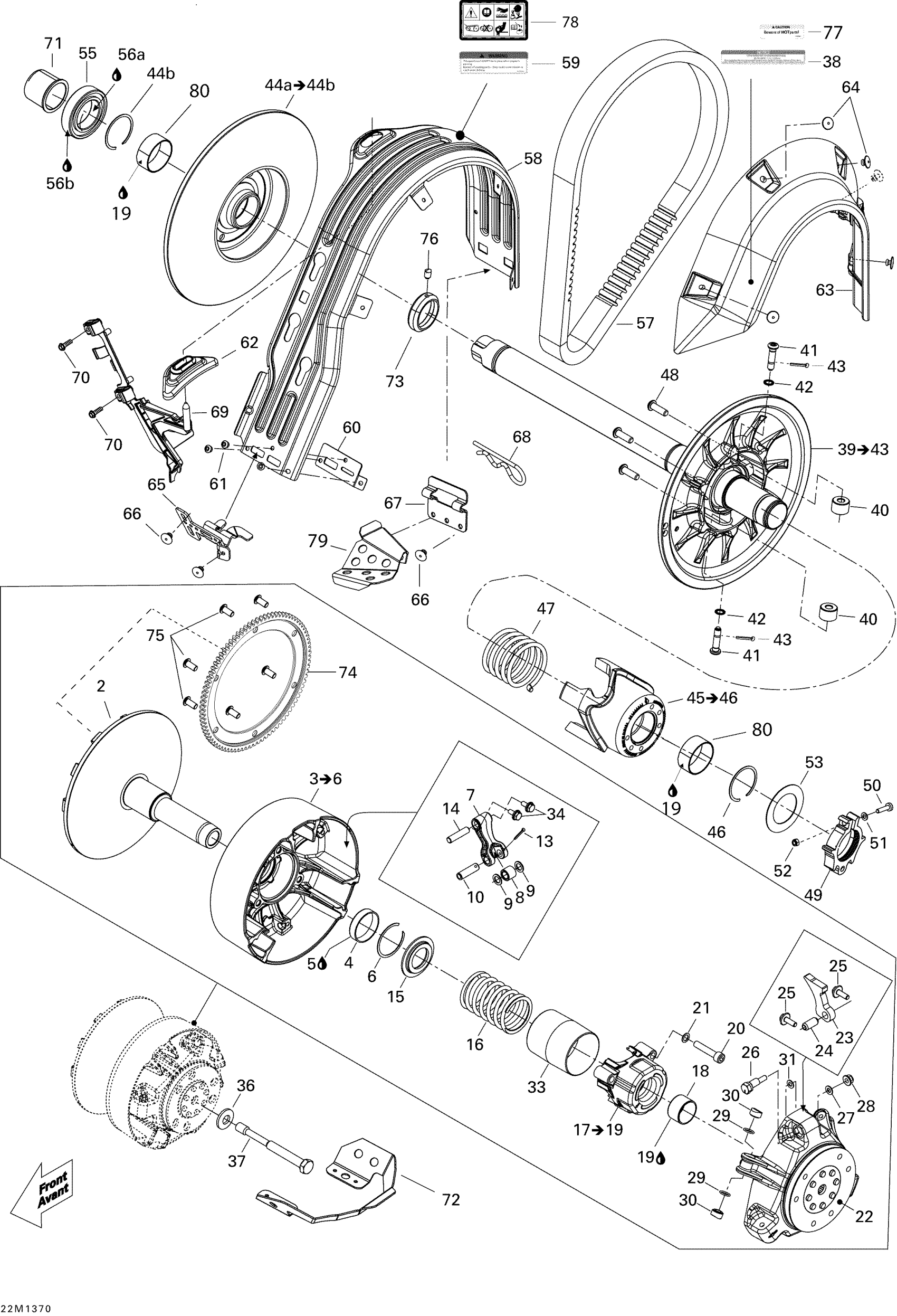

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 05- Pulley System Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 10b to 10e

Bushing

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

Was 293800041 Loctite Primer 7649

Circlip

Lever | Includes 10f to 10g

Roller

Stopper Washer

Pin

Cotter Pin

Lever Axle

Spring Seat

Tra Spring

Spring Cover Ass'y | Includes 10r to 10t

Bushing

Loctite 609, 10 ml

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

GOVERNOR CUP ASS'Y - Call your local BRP dealership

Ramp 600

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Flat Washer 6 mm

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Slider Shoe This part replaces 420460045.

Washer

Guard

Serrated Hex. Flange Bolt M6

Spring Washer 14 mm

Drive Pulley Bolt

Decal English

Fixed Flange Ass'y | Inclus 38 à 44

Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 18

Sliding Flange Ass'y | Includes 100b to 100b3

Circlip

Cam Ass'y

Circlip

Spring, White

Torx Screw M8 X 25, Scotch Grip

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Loctite 609, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Drive Belt

Belt Guard

Security label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket

Pop Rivet 3/16" | DS 650 X

Belt Guard Bracket | Except Package SWT

Hair Pin

BELT GUARD BRACKET - Call your local BRP dealership

Hex. Flange Screw K50 X 2.24 X 16

Protective Rubber

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

RETAINER RING - Call your local BRP dealership

Ring Gear_Starter This part replaces 417223738.

Torx Screw M8 X 16

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

Decal English

Warning Decal | Europe

Brake Hose Cover | Except Package SWT

Bushing ID 41mm OD 45mm X 19mm L
