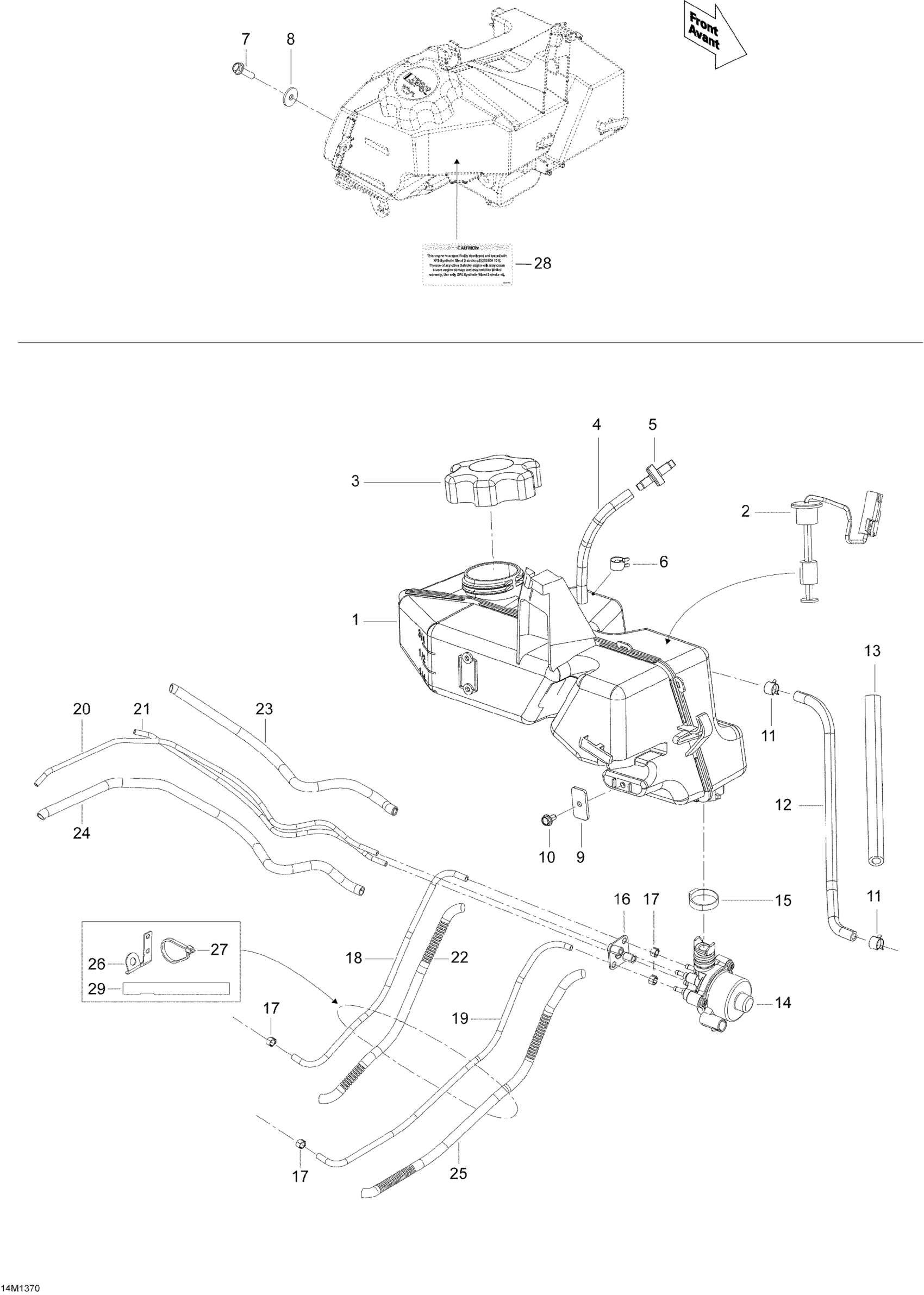

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 02- Oil System Diagram

#

Description
Price

1

Oil Tank

519000340

$184.99

2

Level Sensor

515176978

$56.99

3

CAP - Call your local BRP dealership

519000194

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

Check Valve

275500398

$10.99

6

Spring Clamp

414554800

$0.88

7

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

8

Flat Washer

224061201

$1.37

9

Bracket

519000179

$10.49

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

11

Spring Clamp

414420700

$0.72

12

Spring Clamp

414554800

$0.88

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Pump_Hydraulic This part replaces 519000323.

519000376

$204.99

15

Crimp Clamp

293650099

$4.29

16

Oetiker Clamp

293650100

$3.38

17

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

18

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

19

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

20

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

21

Tubing 6 Mm 3000Mm Long

219704425

$13.75

22

Tubing 6 Mm 3000Mm Long

219704425

$13.75

23

Tubing 6 Mm 3000Mm Long

219704425

$13.75

24

Tubing 6 Mm 3000Mm Long

219704425

$13.75

25

Bracket

519000245

$15.99

26

Tie Wrap 142 mm

293750002

$1.25

27

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable

28

Protection Decal / Lexan

516004648

$11.49

29

Bracket

519000271

$8.79
