Description

Price

1

Chamber Ass'y

508000790

$204.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Spring

508000576

$7.79

4

Flat Washer

224060201

$1.26

5

Socket Head Screw M4 X 40 | X

205444086

$1.69

6

Elastic Stop Nut M4

232541414

$0.58

7

Stopper

508000537

$7.79

8

Velcro Strip

508000820

$8.59

9

Gemi Clamp

508000346

$10.33

10

Air Filter

508000609

$48.49

11

Heat Shield

508000677

$7.79

12

Boot

508000548

$24.49

13

Flute

508000662

$15.99

14

Norma Gear Clamp

514052983

$15.89

15

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$86.99

16

Plate Adapter

508000613

$21.99

17

Caution Label, Air Intake

516004651

Unavailable

18

O-Ring

293300115

$3.77

19

Air Intake Adapter

508000614

$21.99

20

Heat Shield

508000675

$10.99

21

Heat Shield

508000676

$10.99

22

Adaptor

508001020

$31.99

23

Bumper

508000572

$7.51

24

Heat Shield

508000677

$7.79

25

Insulated Foam

508000739

$8.89

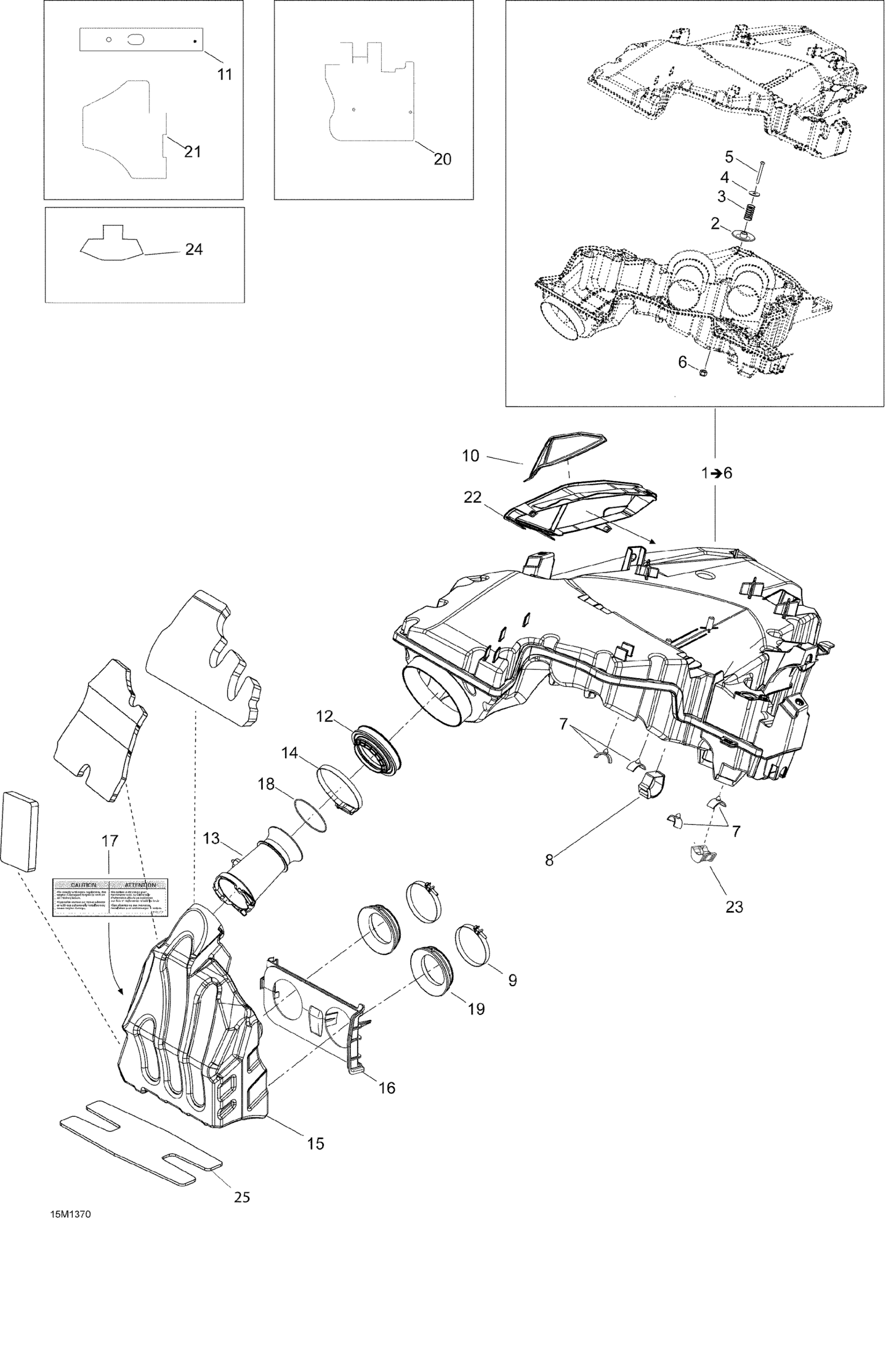

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 02- Air Intake System Diagram

Chamber Ass'y

Not Available As Spare Part - Friction Washer

Spring

Flat Washer

Socket Head Screw M4 X 40 | X

Elastic Stop Nut M4

Stopper

Velcro Strip

Gemi Clamp

Air Filter

Heat Shield

Boot

Flute

Norma Gear Clamp

Primary Chamber Ass'y | Includes 100 to 100a

Plate Adapter

Caution Label, Air Intake

O-Ring

Air Intake Adapter

Heat Shield

Heat Shield

Adaptor

Bumper

Heat Shield

Insulated Foam
