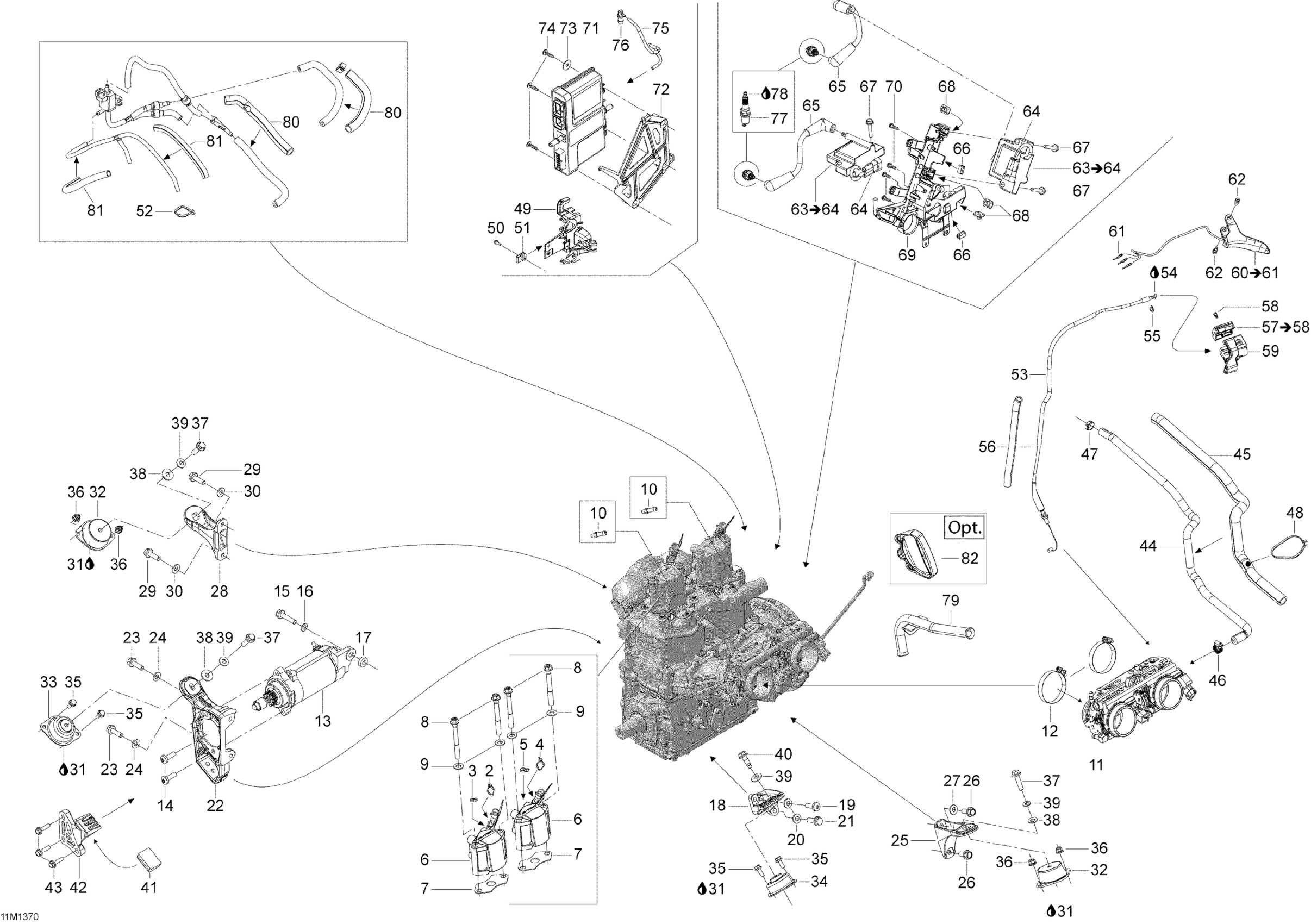

Ski-Doo EXPEDITION LE 600HOE, REV XU, 2013 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie Wrap 142 mm

293750002

$0.88

3

Tie Wrap 142 mm

293750002

$0.88

4

Tie Wrap 142 mm

293750002

$0.88

5

Tie Wrap 142 mm

293750002

$0.88

6

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

7

Gasket

420430930

$4.60

8

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

9

Flat Washer 10 mm

234001410

$0.98

10

Hose Nipple

420924724

$12.29

11

Throttle Body

420889201

$1,228.43

12

Gemi Clamp

293650158

$8.34

13

Starter

515178473

$319.49

14

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

15

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

16

Flat Washer With Teflon 8 mm

250200008

$3.12

17

Washer

515176500

$10.83

18

Rear Support, PTO

512060478

$29.97

19

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

20

Conical Spring Washer M8

234281474

$1.25

21

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

22

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

24

Conical Spring Washer M8

234281474

$1.25

25

Rear Support, MAG

512060559

$29.97

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

27

Conical Spring Washer M8

234281474

$1.25

28

Front Support, MAG

512060469

$31.51

29

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

30

Conical Spring Washer M8

234281474

$1.25

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Rubber Mount

512060729

$69.97

33

Rubber Mount

512060387

$42.28

34

Rubber Mount

512060448

$42.28

35

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

38

Yellow, Washer

503183200

$3.00

39

Conical Spring Washer M8

234281474

$1.25

40

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

41

Stopper

512060627

$9.31

42

Stopper Support

512060576

$28.43

43

Hex. Flange Screw M6 X 25

207562544

$1.39

44

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

Unavailable

45

Tubing 16 Mm 1000Mm Long

219704408

$6.23

46

Tridon Gear Clamp

293650172

$2.68

47

Crimp Clamp, 15.3-706R

293650047

$2.64

48

Tie Wrap 368 mm

293750008

$0.85

49

Solenoid Support

512060298

$12.52

50

Hex.Flange Screw M5 X 20

207652044

$1.56

51

Panel Nut M5 X 0.8

250000958

$3.48

52

Tie Wrap 94 mm | 4X4

293750001

$0.83

53

Throttle Cable

512060633

$106.12

54

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

55

Circlip

414274500

$0.74

56

Was 409901700 Tubing (9 mm)

219704399

$79.97

57

Upper Housing

512060859

$8.38

58

Socket Set Screw M8 X 10

414440800

$4.00

59

Lower Housing

512060860

$16.89

60

Throttle Handle Ass'y

512061252

$117.66

61

Male Terminal

515175232

$1.49

62

Flange Screw

732601143

$4.02

63

Ignition Coil

512060953

$129.97

64

Housing

710000568

$10.83

65

Ignition Cable, 177mm long

512061126

$27.66

66

Clip

710000992

$4.00

67

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

68

Nut Welded, M6

293100003

$6.32

69

Ignition Coils Support

512060888

$10.52

70

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

71

Calibrated Module

512060780

$769.99

72

Calibrated Module Support

512060858

$12.52

73

Flat Washer

250200040

$1.82

74

Truss Head Torx Screw K50 X 20

250000297

$2.06

75

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

76

Male Connector

414814100

$2.18

77

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$23.37

78

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

79

Tubing

512060451

$44.58

80

Was 409901800 Tubing (13 mm)

219704400

$9.40

81

Tubing 10 MM 1000MM Long

219704407

$2.20

82

Starter Grip

512060136

$14.54
