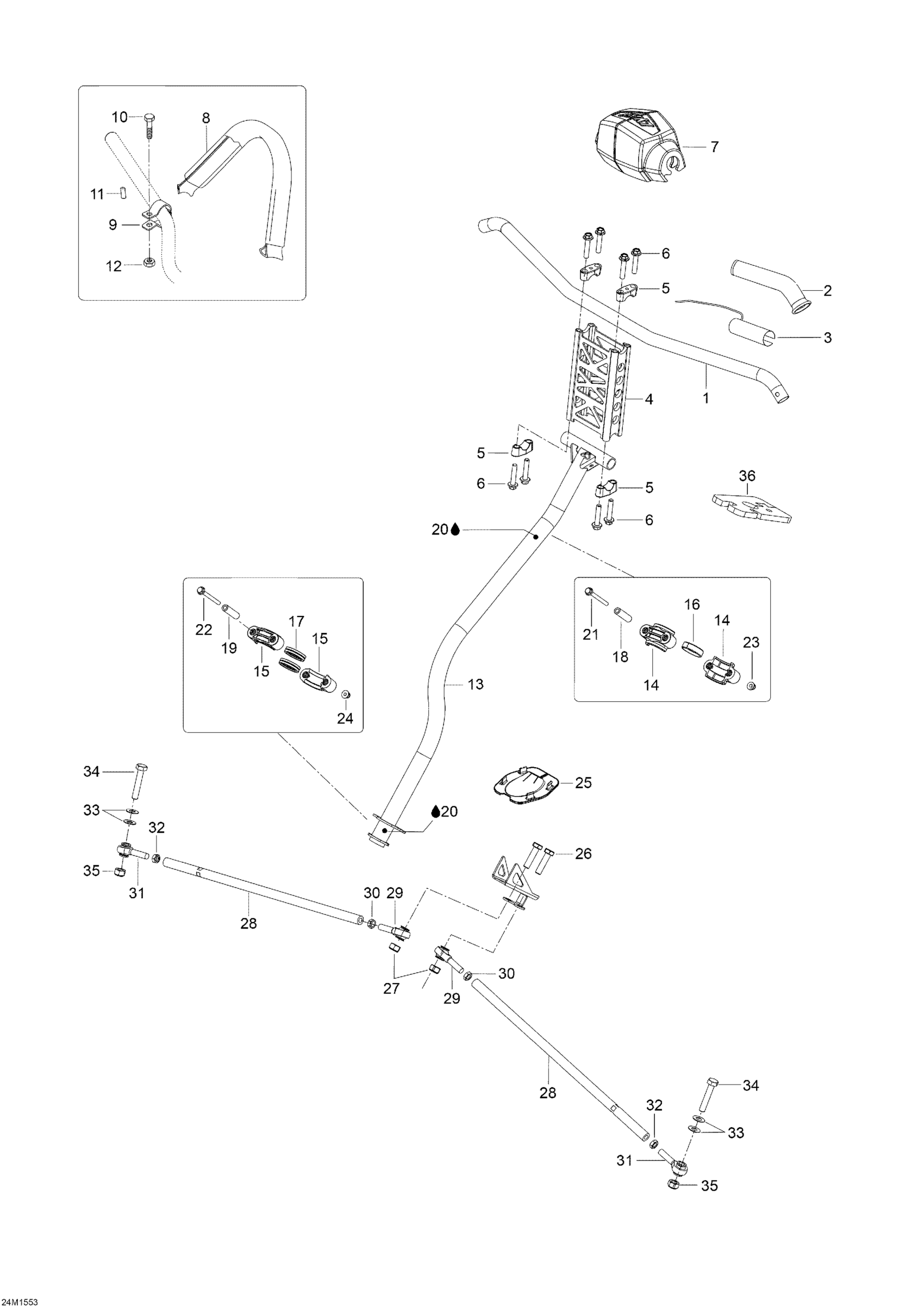

Ski-Doo Expedition LE 600 E-TEC, 2015 07- Steering _24M1553 Diagram

#

Description
Price

1

Handle Bar

506152722

$148.49

2

Grip | WAKE This part replaces M5340464.

506152483

$12.17

3

Heated Film, 25W

506152428

$39.99

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Hex. Flange Screw M8 x 40

250000285

$0.82

7

Deep Black, Steering Pad

506152541

$41.99

8

Strap Ass'y | Package XMR

506152115

$44.49

9

Black Support Plate

506152536

$9.19

10

Hex. Flange Screw M6 X 20

207662054

$1.01

11

Bushing | Package XMR

506152156

$5.61

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Steering Column

506152962

$199.99

14

Upper Half-Housing

506152508

$9.23

15

Lower Half-Housing

506152217

$7.62

16

Upper Anti-Vibration Gasket

506152509

$4.79

17

Lower Vibration Ring

506152518

$4.79

18

Housing Bushing

506152297

$12.99

19

Housing Bushing

506152297

$12.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Screw M6 X 70

207667056

$4.44

22

Hex. Flange Screw M6 X 70

207667056

$4.44

23

Elastic Flange Nut M6 X 1.0

233261416

$2.11

24

Elastic Flange Nut M6 X 1.0

233261416

$2.11

25

Plate

506152163

$12.99

26

Hex. Screw M10 X 40

207004044

$4.76

27

Elastic Stop Nut M10

232500416

$1.90

28

Tie-Rod

506152498

$38.99

29

LH Thread Ball Joint

506152081

$41.49

30

LH Threaded Hex. Jam Nut M10

250100016

$0.74

31

RH Threaded Ball Joint

506152019

$41.49

32

RH Threaded Hex. Jam Nut M10

732610010

$0.74

33

Washer

506152194

$4.55

34

Hex. Screw M10 X 55

207005544

$2.22

35

Elastic Stop Nut M10

232500416

$1.90

36

Cushion

506152404

$26.49
