Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Pin

417222594

$14.99

11

Cotter Pin

250400060

$2.00

12

Lever Axle

417223164

$4.49

13

Spring Seat

417222312

$9.59

14

Tra Spring

414993000

$56.99

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

16

Bushing

417009204

$17.49

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

19

Lock Washer 8 mm

250200009

$2.11

20

Governor Cup Ass'y

417223669

$489.99

21

Ramp 600

417222444

$36.99

22

Spring Pin M10 X 22

250400050

$2.99

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

24

Calibration Screw

417223501

$13.99

25

Washer

417005600

$4.09

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

O-Ring

732401030

$0.98

28

Slider Shoe

417223271

$8.26

29

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

30

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

31

Guard

417009205

$21.99

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

33

Conical Spring Washer M14

250200144

$4.44

34

Drive Pulley Bolt

417120000

$65.49

35

Decal English

516005503

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Fixed Flange Ass'y

417127466

$459.99

38

Roller

417127189

$25.99

39

Pivot Stud

417127294

$14.49

40

Lock Washer 8 mm

250200009

$2.11

41

Spring Pin M3 X 30

250400063

$2.11

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

43

Circlip

293370049

$4.99

44

Cam Ass'y

417127411

$159.49

45

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

46

Circlip

293370049

$4.99

47

Spring, White

417127243

$43.49

48

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

49

Calibration Ass'y

415129604

$21.49

50

Socket Screw M5 X 25

205052544

$1.68

51

Flat Washer M5

234051410

$0.53

52

Elastic Stop Nut M5

232551414

$0.87

53

Washer

417127155

$8.26

54

Strength Washer

517302322

$12.63

55

Hex. Cap Screw M8 X 75

207287544

$5.18

56

Spacer

417300252

$5.49

57

Spacer

417300265

$2.29

58

Shim

504112000

$8.59

59

Drive Belt

417300551

$179.99

60

Warning Decal | Europe

516003919

$8.09

61

Belt Guard

417300357

$91.99

62

Security Label, Belt Guard

516006900

Unavailable

63

Reinforcement

417300380

$7.29

64

Avex Rivet

390909200

$0.30

65

Guide

417300381

$11.99

66

Side Protector

417300356

$14.76

67

Pop Rivet 3/16"

293150103

$0.55

68

Belt Guard Bracket

417300364

$29.99

69

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

70

Belt Guard Bracket | Except Package SWT

417300363

$14.49

71

Brake Hose Cover | Except Package SWT

518325626

$29.99

72

Rivet Hucklok

293150163

$2.99

73

Hair Pin

114045200

$11.11

74

Air Duct | North America

417300468

$49.99

75

Torx Screw M6 X 20

250000722

$1.68

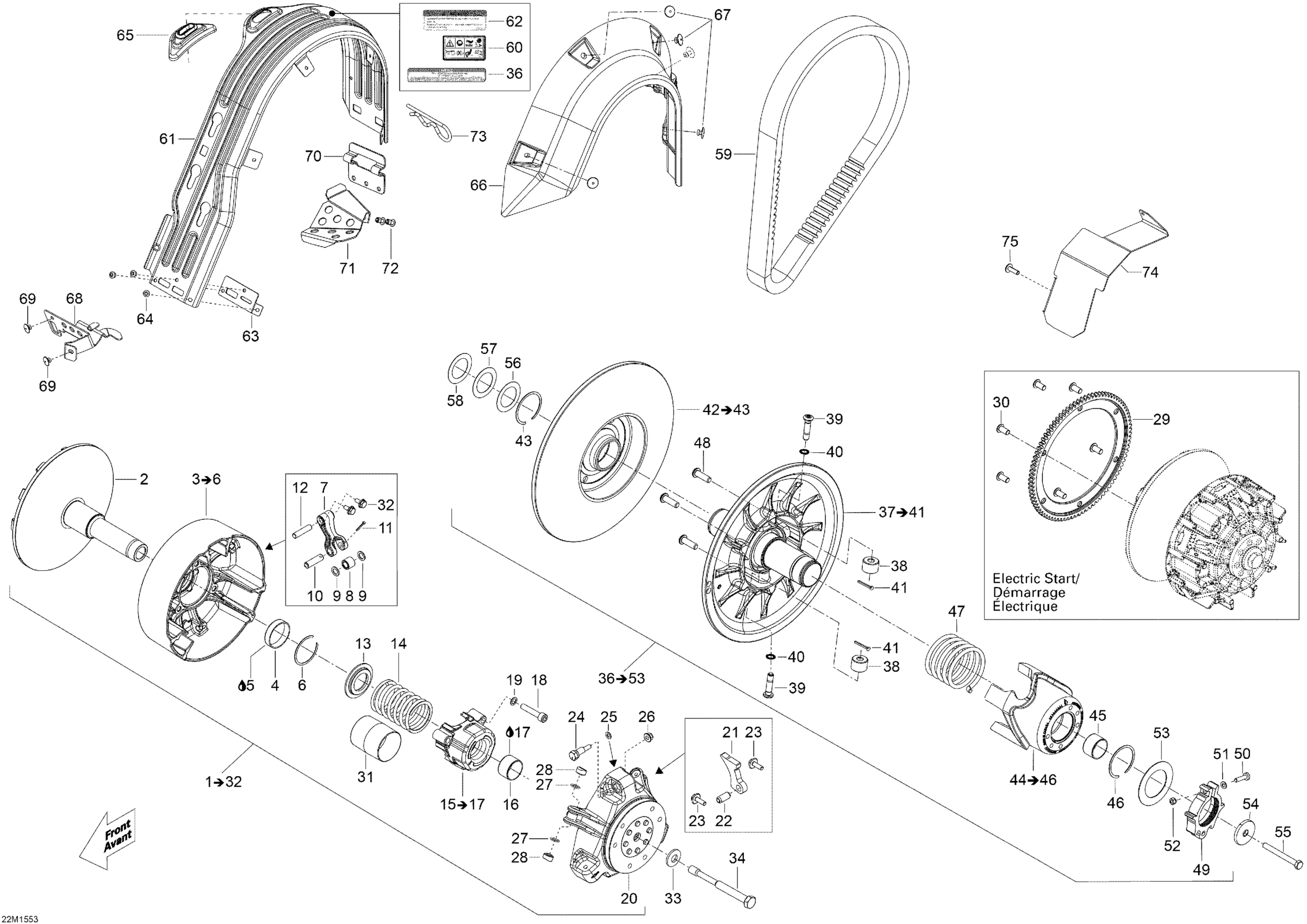

Ski-Doo Expedition LE 600 E-TEC, 2015 05- Pulley System _22M1553 Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 10b to 10e

Bushing

Not Available As Spare Part - Friction Washer

Circlip

Lever | Includes 10f to 10g

Roller

Stopper Washer

Pin

Cotter Pin

Lever Axle

Spring Seat

Tra Spring

Spring Cover Ass'y | Includes 10r to 10t

Bushing

Not Available As Spare Part - Friction Washer

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

Governor Cup Ass'y

Ramp 600

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Washer

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Slider Shoe

Ring Gear_Starter This part replaces 417223738.

Hex. Flange Screw M8 X 1.25 X 16

Guard

Hex. Flange Screw M6 X 12, Scotch Grip

Conical Spring Washer M14

Drive Pulley Bolt

Decal English

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Slider Flange Ass'y | Includes 100b to 100b3

Circlip

Cam Ass'y

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Spring, White

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Hex. Cap Screw M8 X 75

Spacer

Spacer

Shim

Drive Belt

Warning Decal | Europe

Belt Guard

Security Label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket

Pop Rivet 3/16" | DS 650 X

Belt Guard Bracket | Except Package SWT

Brake Hose Cover | Except Package SWT

Rivet Hucklok

Hair Pin

Air Duct | North America

Torx Screw M6 X 20
