Description

Price

1

Exhaust Valve, Upper

420854980

$22.49

2

Exhaust Valve, Lower

420854974

$63.99

3

Exhaust Valve

420854990

$12.49

4

Spring

420238558

$5.39

5

O-Ring

420931765

$0.98

6

Gasket

420430032

$19.16

7

Valve Housing

420854888

$99.49

8

Torx Flange Screw M6 X 20

420440207

$3.06

9

Gasket Ring

420431380

$8.57

10

Oil Seal | Included in gasket kit

420950732

$9.27

11

Bellows

420260725

$42.49

12

Hose Spring This part replaces 420838253.

420838255

$7.41

13

Spring

420238557

$5.39

14

Valve Cover

420854442

$35.99

15

Hose Spring This part replaces 420939285.

420939286

$11.60

16

Position Sensor

420854089

$114.99

17

Tapping Screw M5 X 22

420841550

$1.69

18

Nut M12 X 1.5

420942190

$14.22

19

Cover

420910821

$14.22

20

Tapping Screw M5 X 22

420841550

$1.69

21

Oil Hose 1500Mm Long

219704404

$17.26

22

Check Valve Ass’y

420956515

$8.59

23

Clamp

420851508

$14.22

B

Not Available As Spare Part - Friction Washer

Unavailable

M

Not Available As Spare Part - Friction Washer

Unavailable

N

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Not Available As Spare Part - Friction Washer

Unavailable

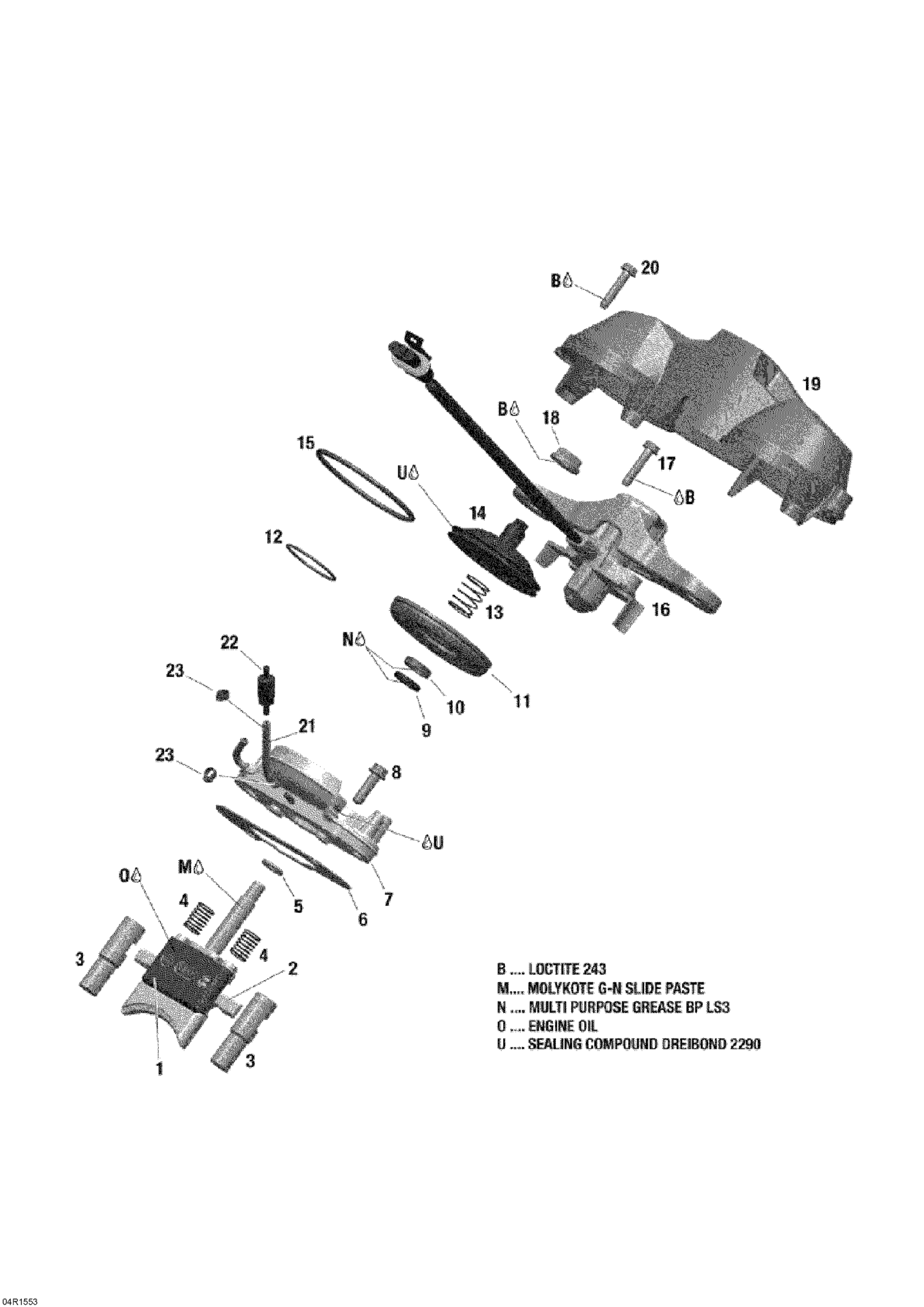

Ski-Doo Expedition LE 600 E-TEC, 2015 01- RAVE Valve _04R1553 Diagram

Exhaust Valve, Upper

Exhaust Valve, Lower

Exhaust Valve

Spring

O-Ring

Gasket

Valve Housing

Torx Flange Screw M6 X 20

Gasket Ring

Oil Seal | Included in gasket kit

Bellows

Hose Spring This part replaces 420838253.

Spring

Valve Cover

Hose Spring This part replaces 420939285.

Position Sensor

Tapping Screw M5 X 22

Nut M12 X 1.5

Cover

Tapping Screw M5 X 22

Oil Hose 1500Mm Long

Check Valve Ass’y

Clamp

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
