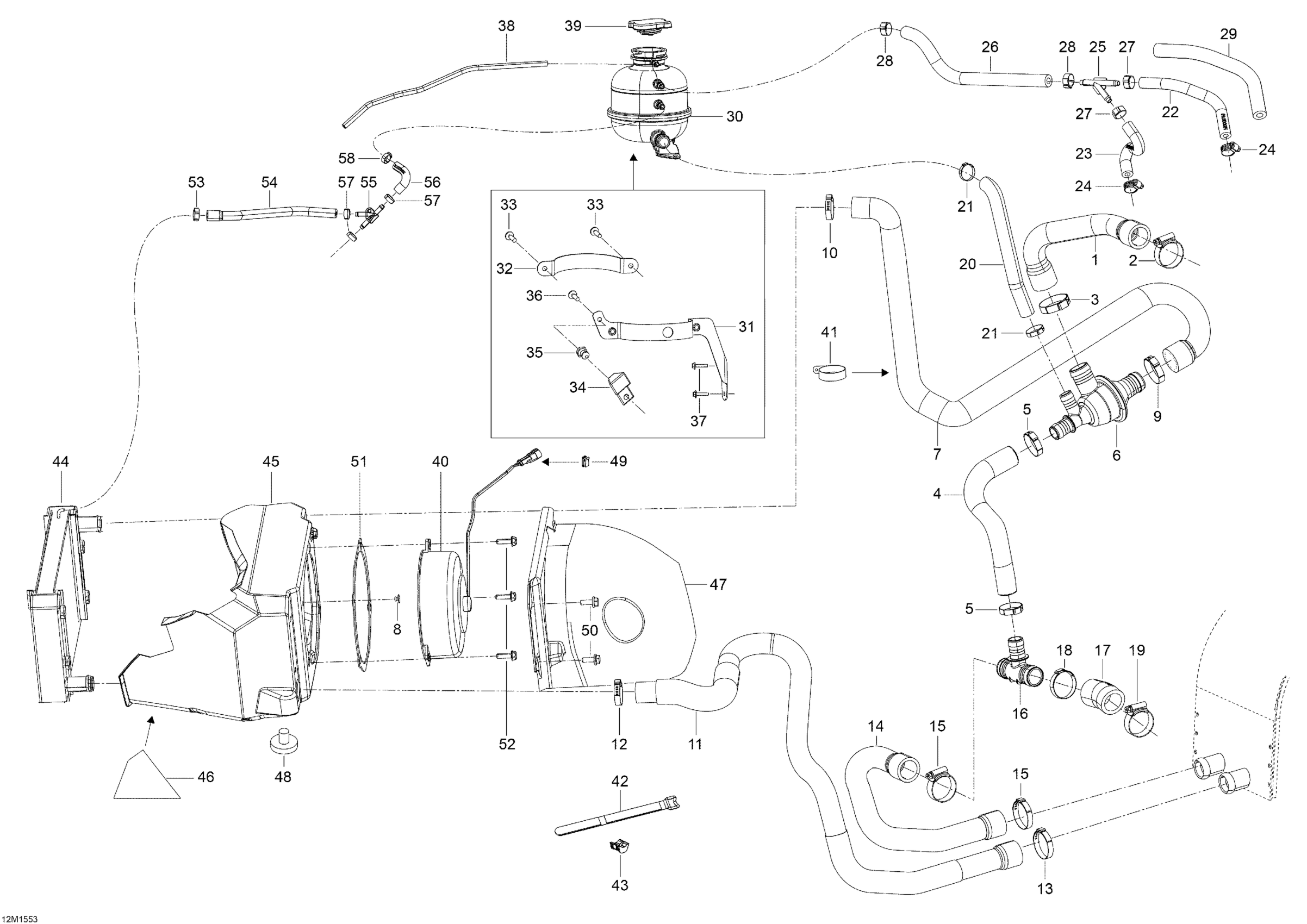

Ski-Doo Expedition LE 600 E-TEC, 2015 01- Cooling System _12M1553 Diagram

#

Description
Price

1

Engine Outlet Hose

509000595

$16.33

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

Oetiker Gear Clamp

509000181

$4.44

4

Bypass Hose

509000523

$62.49

5

Crimp Clamp

293650099

$4.29

6

Thermostat Housing

509000499

$42.99

7

Hose Radiator

509000737

$158.99

8

Rivet 3/16"

293150102

$0.70

9

Oetiker Gear Clamp

509000181

$4.44

10

Crimp Clamp

293650099

$4.29

11

Air Radiator Hose

509000588

$62.49

12

Crimp Clamp

293650099

$4.29

13

Aba Gear Clamp, 26-38 MM

509000443

$12.72

14

Return Radiator Hose

509000589

$42.49

15

Aba Gear Clamp, 26-38 MM

509000443

$12.72

16

T-Fitting

509000372

$10.33

17

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

18

Oetiker Gear Clamp

509000181

$4.44

19

Aba Gear Clamp, 26-38 MM

509000443

$12.72

20

Filling Hose

509000736

$35.99

21

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

22

Bleeder Hose

509000769

$12.49

23

Bleeder Hose

509000768

$11.49

24

Tridon Gear Clamp

293650170

$1.99

25

Y-Fitting

293710059

$9.69

26

BREATHER HOSE - Call your local BRP dealership

509000878

Unavailable

27

Oetiker Clamp

293650046

$2.89

28

Crimp Clamp, 15.3-706R

293650047

$3.29

29

Protector Tube, 16 mm

513033231

$2.21

30

Coolant Tank

509000368

$92.99

31

Reservoir support

509000852

$67.99

32

Support

509000608

$30.49

33

Forming Screw M5 x 16

250000676

$1.01

34

Support

509000609

$23.49

35

Knob

517303439

$4.55

36

Torx Screw K50 X 16

250000720

$1.69

37

Screw M4 X 16

250000725

$3.49

38

Hose 6 Mm 15000Mm Long

219704360

$132.49

39

Radiator Pressure Cap

509000180

$20.49

40

Fan

509000837

$200.99

41

Clamp With Rubber

27011

Unavailable

42

Velcro Strip

508000820

$8.59

43

Bumper

508000572

$7.51

44

Radiator

509000756

$179.99

45

Cooling Fan Shroud

509001173

$25.99

46

Foam

509000615

$26.99

47

Deflector

509001174

$20.99

48

Rubber Bumper

570044700

$13.10

49

Clip

710000992

$4.29

50

Hex. Flange Screw M6 X 12

207661244

$2.11

51

Screw plate

509000614

$23.99

52

Hex. Flange Screw M6 X 20

210262040

$2.11

53

Crimp Clamp

293650053

$3.09

54

Formed Hose

509000880

$16.33

55

Y-Fitting

293710140

$8.11

56

Formed Hose

509000879

$10.33

57

Crimp Clamp, 15.3-706R

293650047

$3.29

58

Crimp Clamp, 15.3-706R

293650047

$3.29
