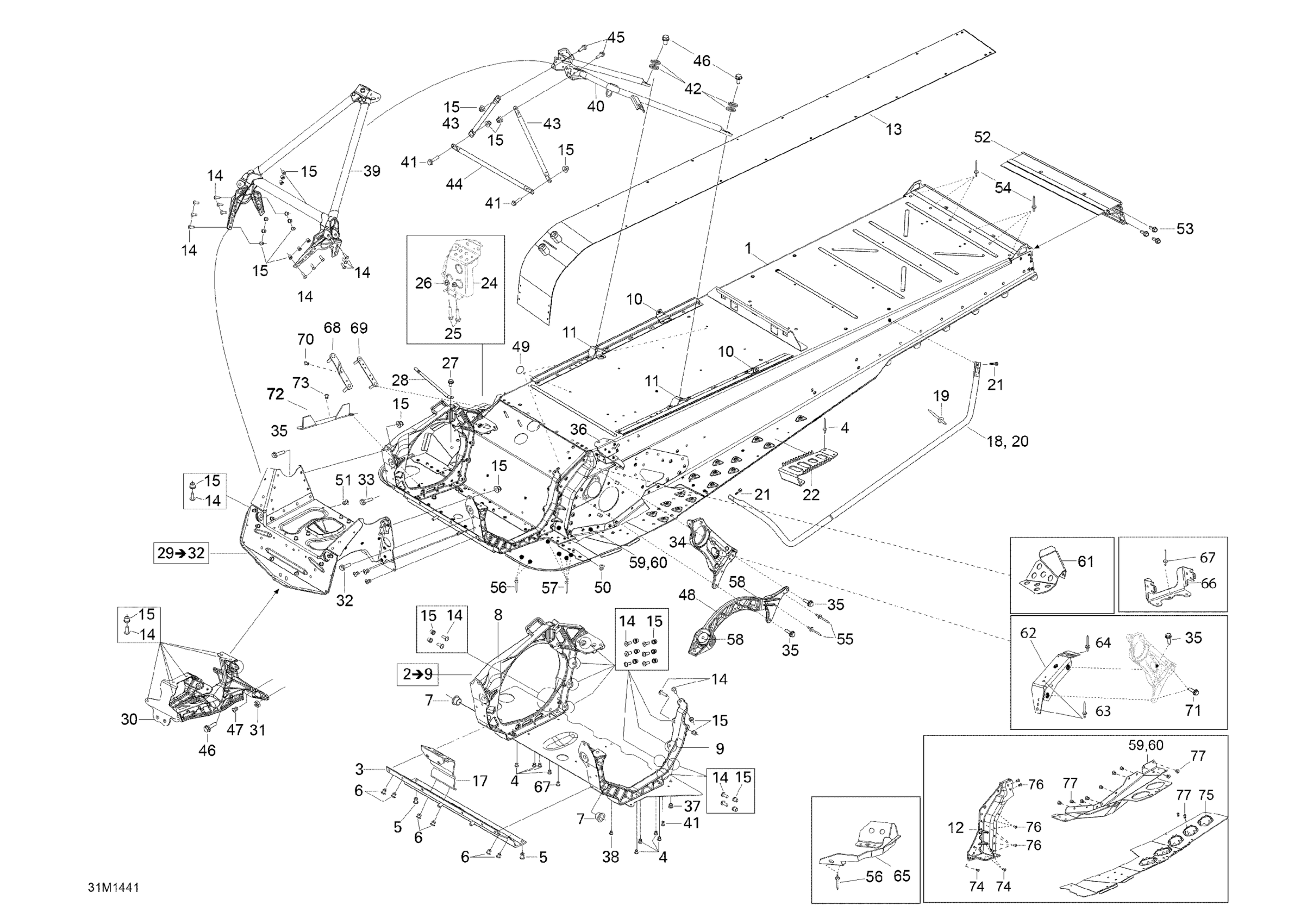

Ski-Doo EXPEDITION LE 1200 XU, 2014 Frame Diagram

#

Description
Price

1

Frame XU 4-TEC SC-5

518327675

Unavailable

2

Module E | Engine 1200 4-TEC

518328187

$907.66

3

Front Member

518326198

$59.97

4

Avex Rivet

390909100

$0.29

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Hemlock Rivet, 6.5 mm

293150119

$4.00

7

Leg Bushing

505072690

$5.92

8

RH Side Member

518326328

$259.97

9

LH Side Member

518326330

$259.97

10

Seat Box Bracket

518325987

Unavailable

11

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

11

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

12

LH Frame Corner

518325524

$52.28

12

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

13

Tunnel Radiator | Includes 10p to 10q

509000976

$673.82

14

Hex. Flange Screw M6 X 20

207662044

$1.66

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

MAG Engine Support

518325371

$75.35

18

LH Footboard Support Tube

518326963

$126.89

19

Avex Rivet

390909100

$0.29

20

RH Footboard Support Tube

518326964

$126.89

21

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

22

Footrest

520000492

$18.43

24

LH Toe Hook

518326464

Unavailable

24

TOE HOOK RH - Call your local BRP dealership

518326465

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Avex Rivet

390909200

$0.29

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

Cross Member | Package LE

518328392

$604.58

30

Front Suspension Support

518327487

$267.66

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

Hexagonal Head Screw

210262050

$1.74

33

Hex Flange Screw M6 x 25

250000522

$4.28

34

PULLEY SUPPORT - Call your local BRP dealership

518327644

Unavailable

35

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

36

Fastening Bracket

605355235

Unavailable

37

Rivet Hucklok

293150163

$2.82

38

Stavex Rivet

293150144

$0.77

39

Front Member

518326970

$276.12

40

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

41

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Upper Lateral Column Support

518325114

$20.74

44

Center Column Support

518326657

$18.43

45

Hex Flange Screw M6 x 25

250000522

$4.28

46

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

47

Ornit Rivet 6,5 X 14.5

293150266

$1.94

48

Brace Ass'y | Includes 200 to 200a

518327392

$185.35

49

Adhesive Patch

518325560

$4.34

50

Black, Dart

414644300

$0.78

51

Full Moon Dart 5 mm

293730042

$2.12

52

Rear Profile

518328748

$217.66

53

Hex Forming Screw DIN.7500D

250000376

$7.31

54

Hemlock Rivet, 6.4 mm

293150174

$6.43

55

Rivet This part replaces M36087.

36087

$1.02

56

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

57

Avex Rivet

390909200

$0.29

58

Vibration Damper

512061516

$57.66

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Brake Hose Cover | Except Package SWT

518325626

$28.43

62

Clinch Nut plate

518326430

$45.99

63

Avex Rivet

390909100

$0.29

64

Not Available As Spare Part - Friction Washer

Unavailable

65

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

66

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

67

Avex Rivet

390909200

$0.29

68

Gearbox Front Plate

518326123

Unavailable

69

Gearbox Rear Plate

518326124

$15.26

70

Pop Rivet 3/16"

390402200

$0.26

71

Hex. Flange Screw M8 X 35

250000986

$1.74

72

Muffler Support

518327448

$13.82

73

Rivet Hucklok

293150163

$2.82

74

Rivet

293150183

$2.06

75

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

75

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

76

Avex Rivet

390909100

$0.29

77

Hemlock Rivet, 6.5 mm

293150119

$4.00
