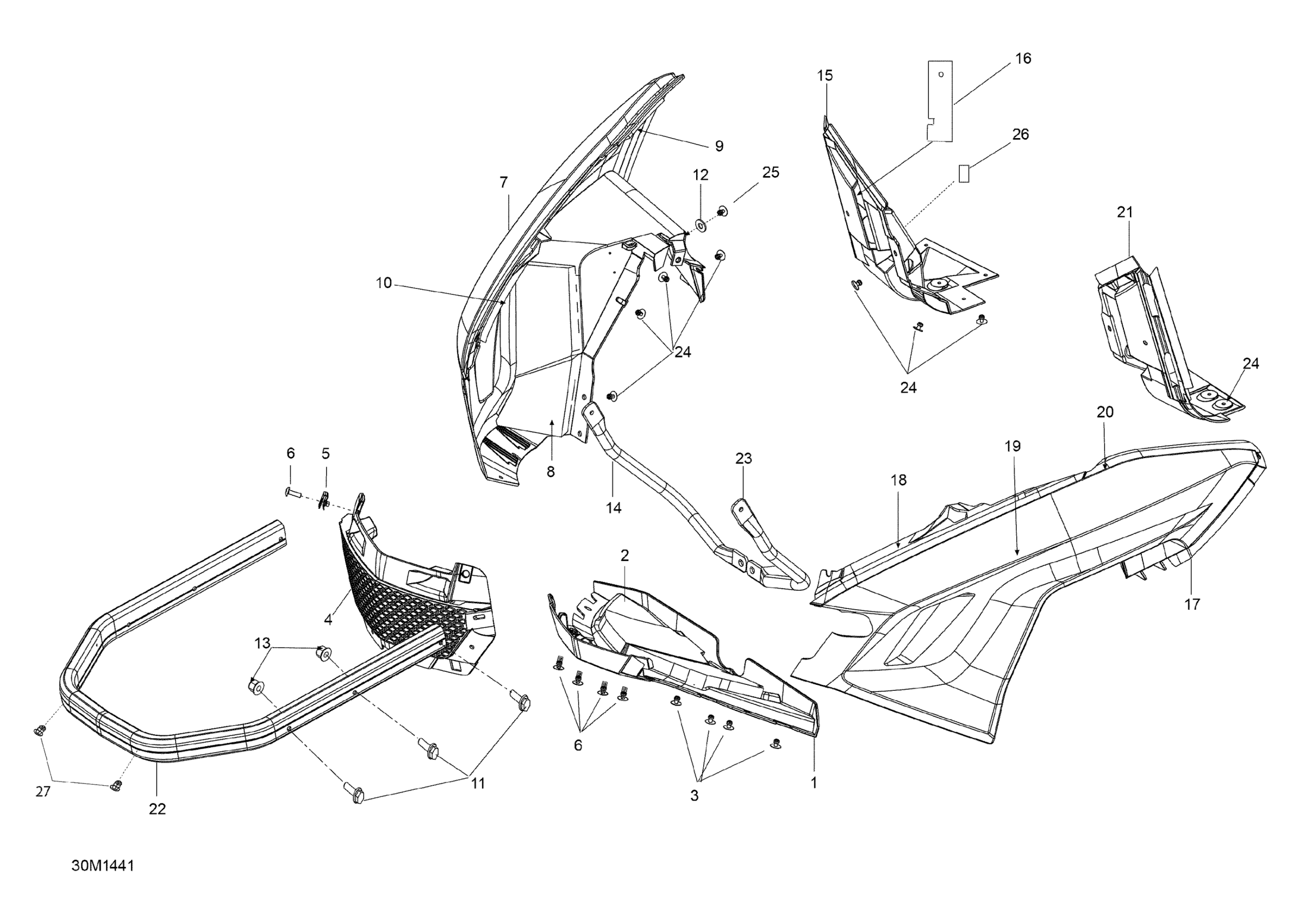

Ski-Doo EXPEDITION LE 1200 XU, 2014 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502008006

$132.81

2

Insulator

502007002

$26.84

3

Pop Rivet 3/16"

293150103

$0.52

4

Grille

502007145

$50.72

5

Panel Nut M6 X 1.0

250100198

$1.99

6

Torx Screw M6 X 20

250000722

$1.54

7

Bottom Pan R.H. | Package SWT & LE This part replaces 502007993.

502007994

$132.81

8

Insulator | Model LE, SE

502007006

$26.84

9

Insulator | Model LE, SE

502007008

Unavailable

10

Insulator | Except Package EXTREME

502007009

$17.13

11

Hex. Flange Screw M6 X 40

207664044

$2.12

12

WASHER M5 - Call your local BRP dealership

234052490

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

RH Bumper Support

502007015

$91.76

15

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$90.27

16

Aluminium Foil

502007038

$15.64

17

Black, LH Bottom Pan | Except Package SE

502008000

$107.43

18

Insulator

502007003

$26.84

19

Insulator

502007185

$29.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

LH Rear Bottom Pan

502008012

$99.97

22

Clear Bumper

502007170

$139.99

23

LH Bumper Support

502007014

$91.76

24

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

25

Pop Rivet 3/16"

390402200

$0.30

26

RH Rear Bottom Pan Ass'y | Includes 21 to 23

502008010

$90.27

27

Full Moon Dart 8 mm

293730041

$2.06
