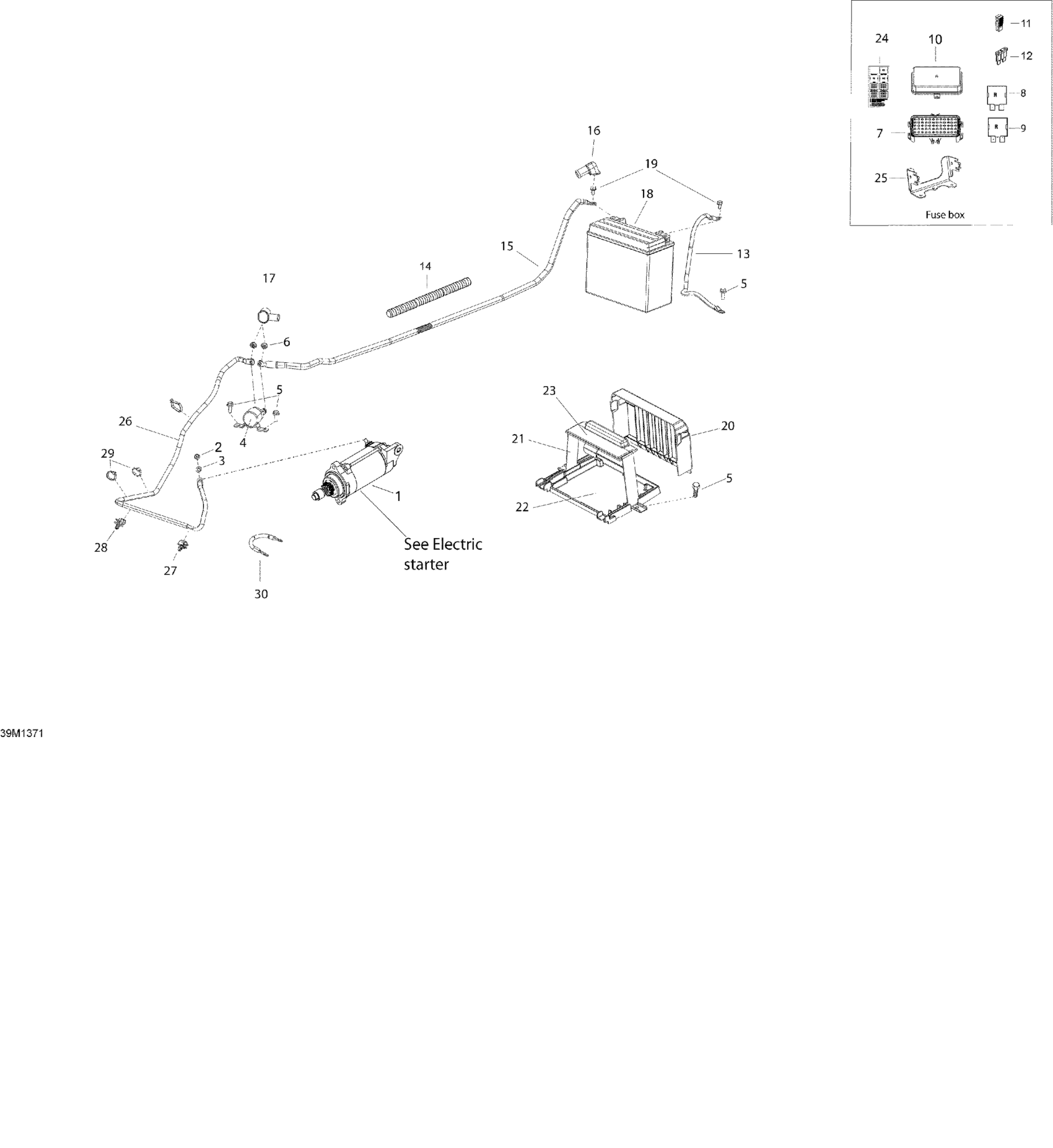

Ski-Doo EXPEDITION LE 1200 XU, 2013 Battery And Starter Diagram

#

Description
Price

1

Starter Ass'y | Includes 25 to 26

420893531

$297.99

2

Elastic stop nut M6 | Quest XT.

232261414

Unavailable

3

Flat Washer 6 mm

234061410

$1.19

4

Starter Relay

515176011

$59.67

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Relay, 30 AMP

515176774

$18.63

9

Relay, 50 AMP

515176775

$13.45

10

Fuse Cover

710001026

$20.12

11

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

12

Little Fuse, 5 Amperes

710000742

$8.31

12

Little Fuse, 7.5 Amperes

710000743

$7.78

12

Little Fuse, 10 Amperes

710000744

$8.31

12

Little Fuse, 15 Ampere

710000745

$7.78

12

Little Fuse, 20 Amperes

710000746

$7.78

12

Little Fuse, 30 Amperes

710000747

$7.78

13

Ground Wire

515176780

Unavailable

14

HOUSING - Call your local BRP dealership

M28015

Unavailable

15

Battery Wire

515176778

Unavailable

16

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

17

Protection Cap

570151000

$17.88

18

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

19

Battery Bolt Kit

250000282

$3.39

20

Battery Cover

510005079

$17.13

21

Battery Strap

510005143

$72.36

22

Battery Support

515176804

$72.36

23

Strap Cover

510005146

$26.09

24

FUSE DECAL 1200 - Call your local BRP dealership

516004919

Unavailable

25

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

26

Start cable 1000 mm.

515176779

$55.94

27

Tie Rap Mount (screwable)

515176795

$4.96

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Tie-Rap 180 mm

414115200

$0.10

30

Ground Wire

515177289

$24.60
