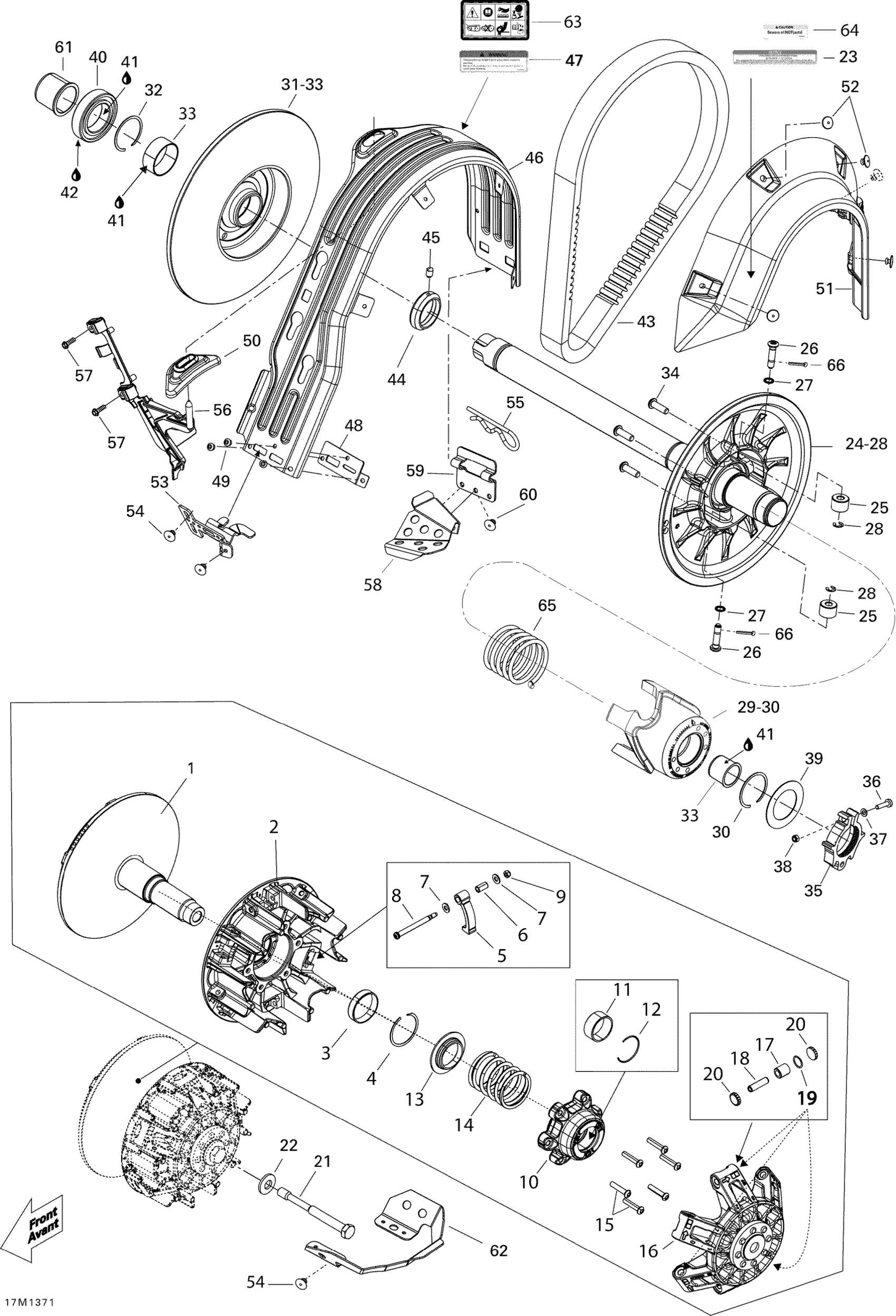

Ski-Doo EXPEDITION LE 1200 XU, 2013 Pulley System Diagram

#

Description
Price

1

Fixed Flange Ass'y

417224091

$179.97

2

Flange Slide Ass'y

417224044

$198.43

3

Bushing

417222758

$20.74

4

Circlip

293370037

$3.02

5

Rampe 735

417223679

$32.28

6

Not Available As Spare Parts

XXX

Unavailable

7

Stopper Washer

417223660

$3.11

8

Ramp Axle

417223694

$4.60

9

Elastic Stop Nut M5

232551414

$0.72

10

Spring Cover Ass'y

417223650

$39.97

11

Not Available As Spare Parts

XXX

Unavailable

12

Circlip

293370065

$0.95

13

Seat Spring

417223752

$13.43

14

Clutch Spring

417224085

$12.31

15

Torx Screw M6 X 30

250000580

$5.02

16

Governor Cup Ass'y

417223865

$179.97

17

Roller

417223767

$7.37

18

Roller Axle

417223257

$7.74

19

O-Ring

293300185

$0.95

20

Slider Shoe

417223919

$3.68

21

Pulley Drive Bolt

417300432

$42.99

22

Spring Washer 14 mm

250200006

$5.80

23

Decal English

516005503

Unavailable

24

Flasque Fixe As*Flange-Fix.Ass This part replaces 417127330.

417127408

$424.58

25

Roller

417127189

$44.58

26

Pivot Stud

417127294

$13.58

27

Lock Washer 8 mm

250200009

$2.06

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Cam Ass'y

417127412

$164.99

30

Circlip

293370049

$4.71

31

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

32

Circlip

293370049

$4.71

33

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

34

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

35

Calibration Ass'y

415129604

$22.49

36

Socket Screw M5 X 25

205052544

$1.34

37

Flat Washer M5

234051410

$0.44

38

Elastic Stop Nut M5

232551414

$0.72

39

Washer

417127155

$8.03

40

Ball Bearing

504152574

$34.58

41

Loctite 609, 10 ml

413703100

$24.58

42

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

43

Drive Belt

417300531

$227.99

43

Drive Belt

417300551

$170.99

44

RETAINER RING - Call your local BRP dealership

417300419

Unavailable

45

SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership

417127203

Unavailable

46

Belt Guard

417300382

$85.35

47

Security label, Belt Guard

516004649

Unavailable

48

Reinforcement

417300380

$5.17

49

Avex Rivet

390909200

$0.29

50

Guide

417300381

$9.23

51

Side Protector

417300356

$13.25

52

Pop Rivet 3/16"

293150103

$0.54

53

Belt Guard Bracket

417300373

$33.05

54

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

55

Hair Pin

114045200

$10.69

56

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

57

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

58

Brake Hose Cover | Except Package SWT

518325626

$28.43

59

Belt Guard Bracket | Except Package SWT

417300363

$12.20

60

Rivet Hucklok

293150163

$2.82

61

Protective Rubber

504153054

$16.12

62

PULLEY COVER PLATE - Call your local BRP dealership | Model North America

518326566

Unavailable

63

Warning Decal | Europe

516003919

$7.65

64

Caution Label, Air Intake

516004651

Unavailable

65

Release Spring

417127344

$43.82

66

Spring Pin M3 X 18

250400061

$1.74

Drive Pulley Kit Ass'Y This part replaces 417223692.

415130054

$673.82
