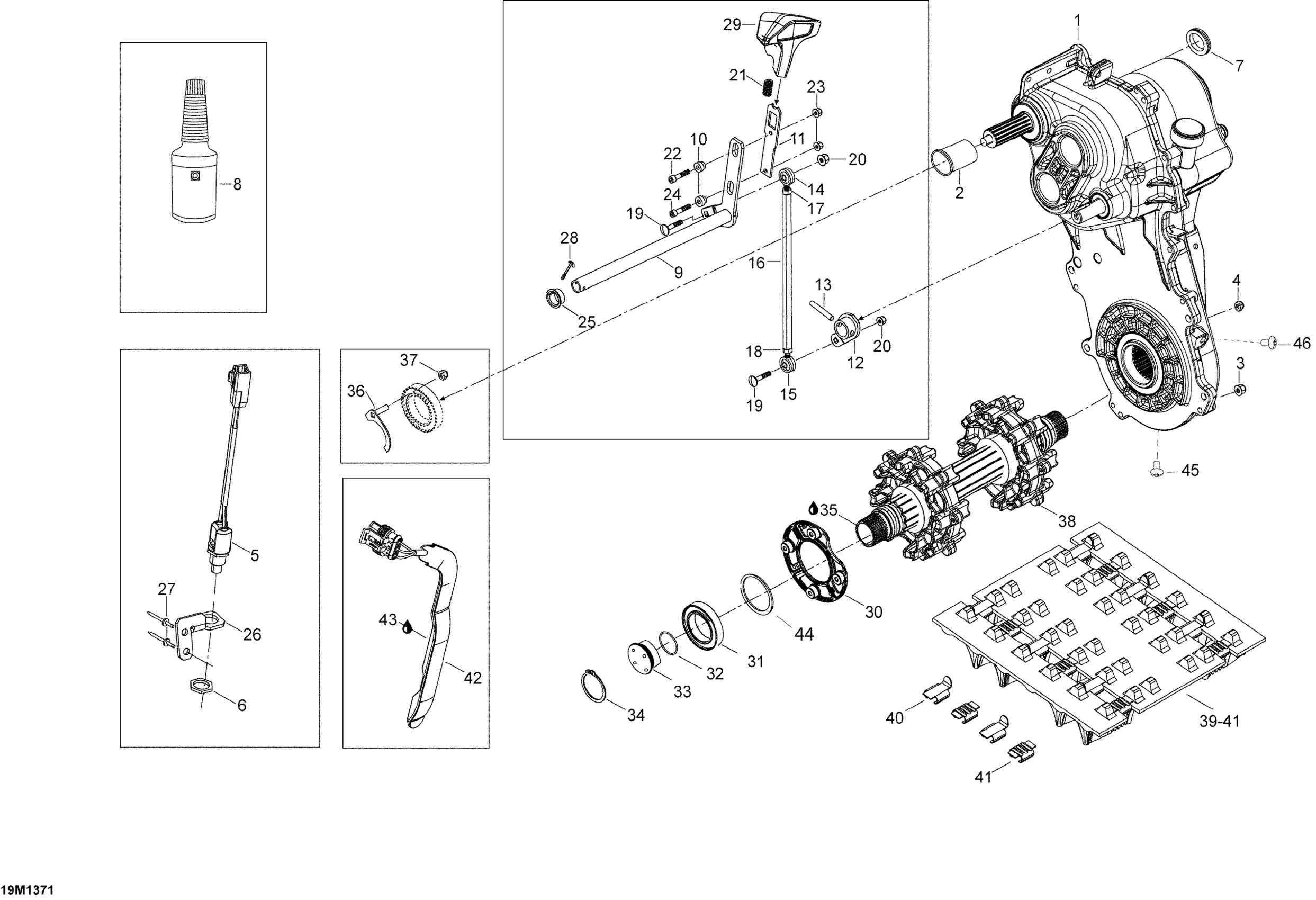

Ski-Doo EXPEDITION LE 1200 XU, 2013 05- Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Fast Ratio)

619230078

$2.00

2

Protective Rubber

504153054

$17.49

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

Switch Ass'y

515176472

$72.99

6

Brass Nut

250000373

$7.51

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

8

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

9

Lever Shifter

504153288

$154.99

10

Sleeve

504152787

$28.49

11

Shifter Arm

504153287

$51.99

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$6.39

14

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

18

Hex. Nut M6

232061414

$0.53

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

20

Elastic Stop Nut M6

232561434

$1.99

21

Spring

504152882

$38.99

22

Socket Screw M5 X 25

205052544

$1.68

23

Flange Elastic Nut M5

233251434

$2.00

24

Forming Screw M5 x 16

250000676

$1.01

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$17.99

27

Rivet Hucklok

293150163

$2.99

28

Cotter Pin

250400035

$2.11

29

Handle

504152837

$80.99

30

Retaining Ring

504153886

$21.99

31

Ball Bearing

293350059

$30.99

32

O-Ring

293300122

$2.11

33

Magnetic Cap

504152619

$23.49

34

Circlip

504152572

$6.95

35

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

36

BEARING HOUSING - Call your local BRP dealership

504153099

Unavailable

37

Hex. Elastic Stop Nut M8

232581414

$0.56

38

Drive Axle Ass'y | With Gear Box 1.98

504153976

$529.99

39

Track 20 X 154 X 1,25 | Includes 3200 to 3200b

504154705

$1.00

40

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Rotation Sensor

504152896

$37.99

43

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

44

Shim

504153207

$12.49

45

Allen Screw M8 x 10

619230037

$6.03

46

Allen Screw M10 x 16

619230038

$4.02
