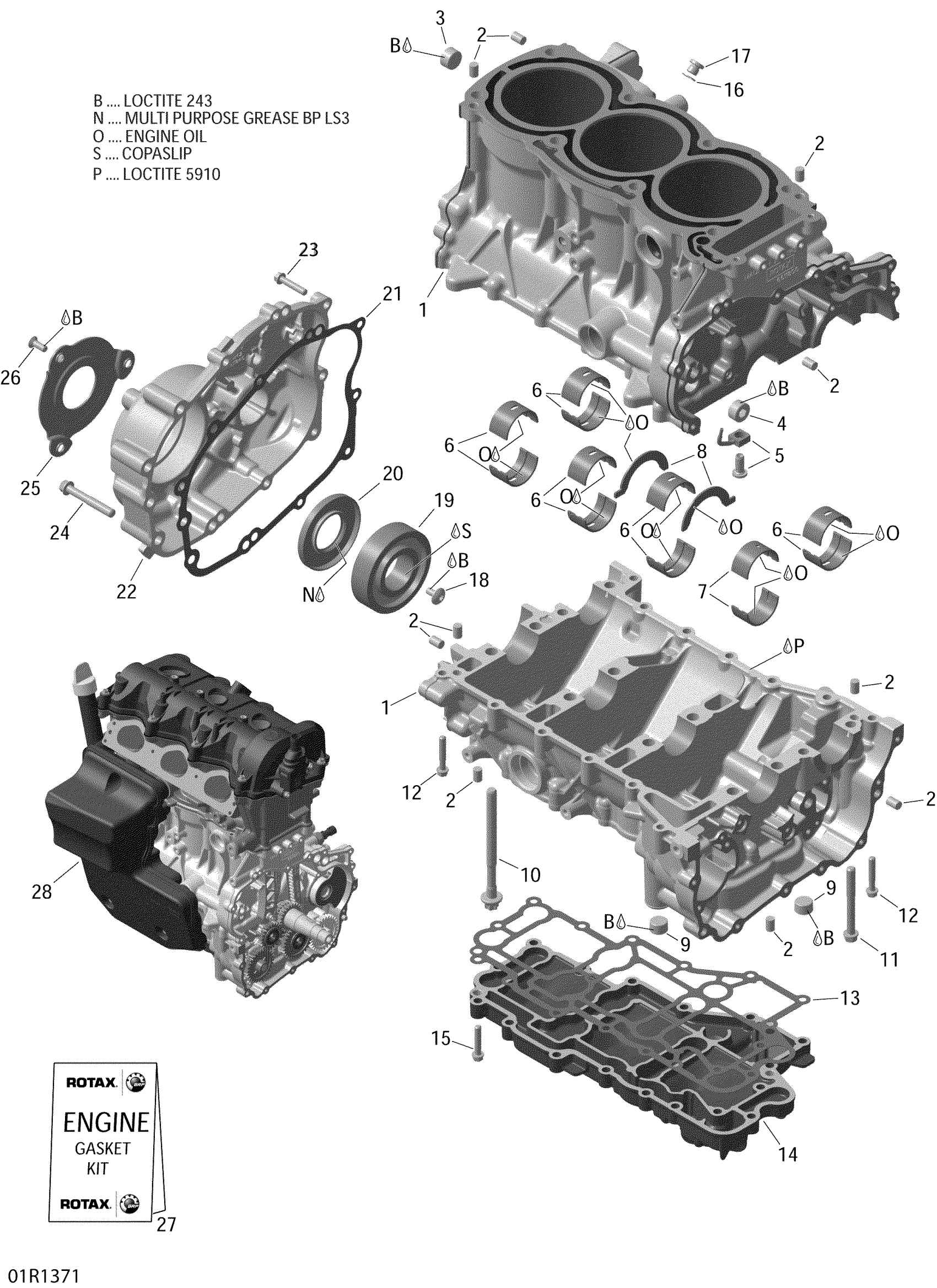

Ski-Doo EXPEDITION LE 1200 XU, 2013 01- Engine Block Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 7

420891887

$2.00

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M18 X 1.5

420840410

Unavailable

4

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

5

OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774.

420956826

Unavailable

6

Plain Bearing

420933852

$19.49

7

Plain Bearing

420933862

$20.49

8

Ring Half

420933140

$11.60

9

SCREW PLUG M16 X 1.5 - Call your local BRP dealership

420240178

Unavailable

10

Torx Flange Screw M9 X 113

420940945

$13.70

11

Torx Flange Screw M8 X 70

420840211

$9.27

12

Torx Flange Screw M6 X 35

420641258

$3.38

13

Gasket

420430770

$23.49

14

OIL SUMP COVER - Call your local BRP dealership

420611822

Unavailable

15

Torx Flange Screw M6 X 30

420440647

$2.00

16

Oil Seal

420230150

$2.85

17

Plug Screw M10 X 1

420641733

$12.72

18

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

19

Ball Bearing

420432125

$121.49

20

Oil Seal

420431402

$19.49

21

Gasket

420430760

$18.49

22

PTO Cover

420611845

$200.99

23

Torx Flange Screw M6 X 30

420440647

$2.00

24

Torx Flange Screw M8 X 55

420641213

$7.41

25

Oil Seal Cover

420910240

$17.39

26

Countersunk Screw M6 X 16

420440906

$3.17

27

Engine Gasket Kit

420893054

$635.99

28

ENGINE 1203 LONG BLOCK - Call your local BRP dealership

300120303

Unavailable

B

Loctite 243, 10 ml

293800060

$21.49

N

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

S

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
