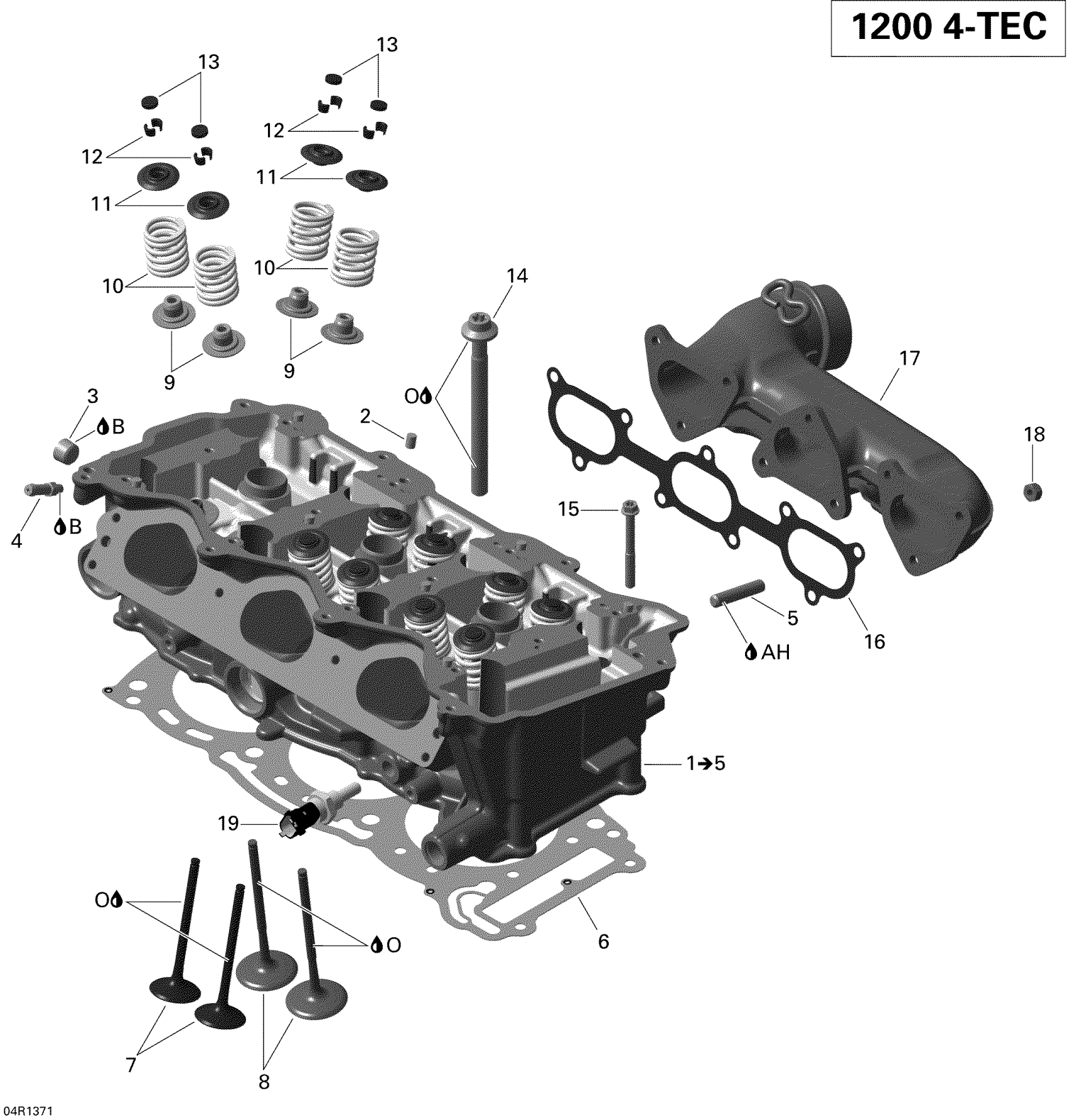

Ski-Doo EXPEDITION LE 1200 XU, 2013 01- Cylinder Head And Exhaust Manifold Diagram

#

Description
Price

1

Cylinder Head Ass'y | Includes 1 to 5

420623416

$904.99

2

Center Pin

420232210

$8.26

3

SCREW PLUG 1/4 - Call your local BRP dealership

420840203

Unavailable

4

Hose Nipple

420924724

$14.83

5

Stud M6 X 14/15

420840491

$16.33

6

Cylinder Head Gasket

420431051

$94.49

7

Intake Valve, 37.3 mm

420855013

$43.49

8

Exhaust Valve 31MM

420253172

$67.99

9

Valve Stem Seal

420430741

$9.27

10

VALVE SPRING - Call your local BRP dealership This part replaces 420238460.

420238461

Unavailable

11

Valve Spring Retainer

420254822

$9.27

12

Valve Cotter

420254602

$2.40

13

SHIM 2.1 - Call your local BRP dealership

420253970

Unavailable

13

SHIM 2.15 - Call your local BRP dealership

420253971

Unavailable

13

SHIM 2.2 - Call your local BRP dealership

420253972

Unavailable

13

SHIM 2.25 - Call your local BRP dealership

420253973

Unavailable

13

SHIM 2.3 - Call your local BRP dealership

420253974

Unavailable

13

Shim 2.35

420253975

$14.22

13

SHIM 2.4 - Call your local BRP dealership

420253976

$13.49

13

SHIM 2.45 - Call your local BRP dealership

420253977

$13.49

13

SHIM 2.5 - Call your local BRP dealership

420253978

$13.49

13

SHIM 2.55 - Call your local BRP dealership

420253979

Unavailable

13

SHIM 2.6 - Call your local BRP dealership

420253980

$13.49

13

SHIM 2.65 - Call your local BRP dealership

420253981

Unavailable

13

SHIM 2.7 - Call your local BRP dealership

420253982

$13.49

13

SHIM 2.75 - Call your local BRP dealership

420253983

Unavailable

13

SHIM 2.8 - Call your local BRP dealership

420253984

Unavailable

13

SHIM 2.85 - Call your local BRP dealership

420253985

Unavailable

13

SHIM 2.9 - Call your local BRP dealership

420253986

Unavailable

13

SHIM 2.95 - Call your local BRP dealership

420253987

Unavailable

13

SHIM 2.325 - Call your local BRP dealership

420254030

Unavailable

13

SHIM 2.375 - Call your local BRP dealership

420254031

Unavailable

13

SHIM 2.425 - Call your local BRP dealership

420254032

Unavailable

13

SHIM 2.475 - Call your local BRP dealership

420254033

Unavailable

13

SHIM 2.525 - Call your local BRP dealership

420254034

Unavailable

13

SHIM 2.575 - Call your local BRP dealership

420254035

Unavailable

13

Shim 2.625

420254036

$7.51

13

Shim 2.675

420254037

$7.51

13

SHIM 2.725 - Call your local BRP dealership

420254038

Unavailable

13

SHIM 2.775 - Call your local BRP dealership

420254039

Unavailable

13

SHIM 2.825 - Call your local BRP dealership

420254040

Unavailable

13

SHIM 2.875 - Call your local BRP dealership

420254041

Unavailable

13

SHIM 2.925 - Call your local BRP dealership

420254042

Unavailable

13

SHIM 2.975 - Call your local BRP dealership

420254043

Unavailable

14

Torx Screw M10 X 121

420840250

$10.33

15

Torx Flange Screw M6 X 55

420440702

$3.06

16

Gasket

420431390

$15.28

17

Exhaust Manifold

420673392

$379.99

18

Lock Nut M6-10

420942046

$14.22

19

Temperature Sensor

278002895

$39.99

B

Loctite 243, 10 ml

293800060

$21.49

O

SYNTHETIC OIL 4T 12X1 L. - Call your local BRP dealership

293600112

Unavailable

AH

Loctite 272, Red-Orange, 50 ml

420899526

$49.99
