Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

515177076

Unavailable

910

Female Housing, 3 Circuits

409209600

$35.99

910

Tie Wrap 142 mm

293750002

$1.25

910

Wire Seal

515176621

$7.49

910

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

BM

Open Barrel

278000992

$2.21

BP

Open Barrel

278000992

$2.21

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Tie Wrap 142 mm

293750002

$1.25

CM

Wire Seal

515176621

$7.49

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

$2.09

COM

Sealing Cap

293000052

$3.19

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

CV

Plug

515175812

$2.19

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Housing

710000399

$16.49

CV

Female Terminal

710001131

$8.89

DS

Female Terminal

515175231

$4.39

DS

Female Housing, 3 Circuits

515175495

$16.18

ECMB

ECM Connector

420664450

$27.49

ECMB

COVER - Call your local BRP dealership

515175885

Unavailable

ECMB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

ECMB

LOCK - Call your local BRP dealership

515175884

Unavailable

ECMB

Latch

515175883

$9.12

ECMB

SEAL - Call your local BRP dealership

515175886

Unavailable

ECMB

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

F

Little Fuse, 5 Amperes

710000742

$8.79

F

Little Fuse, 7.5 Amperes

710000743

$8.49

F

Little Fuse, 10 Amperes

710000744

$8.79

F

Little Fuse, 15 Ampere

710000745

$8.49

F

Little Fuse, 20 Amperes

710000746

$8.49

F

Little Fuse, 30 Amperes

710000747

$8.49

FAN

Housing

710000568

$11.12

FAN

Male Terminal

515176164

$7.16

FAN

Wire Seal

515176621

$7.49

HG

Female Terminal

515175231

$4.39

HG

Female Terminal

515175282

$7.86

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HIC

Male Connector, 4 Circuits | CE

278000739

$19.49

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Sealing Cap

293000052

$3.19

HIC

Female Terminal

278001665

$4.55

HO

Female Terminal

515175231

$4.39

HO

Female Housing, 2 Circuits

515175658

$16.18

NE

Male Terminal

515175232

$1.58

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NV

Housing

710000568

$11.12

NV

Male Terminal

515176164

$7.16

NV

Clip

710000992

$4.29

NV

Wire Seal

515176621

$7.49

PA

Female Housing

515176908

$13.99

PA

Terminal

515176909

$2.21

PB

Female Housing

515176908

$13.99

PB

Terminal

515176909

$2.21

PE

Female Terminal

278001014

$3.28

PE

Female Housing, 2 Circuits

409209500

$15.27

PE

Wire Seal

278001013

$3.28

PF

Fuse Puller

710000781

$8.09

PF

Fuse Cover

710001026

$21.99

PF

Foam

278002172

$5.89

PF

Fuse Box Base Ass´y

415129856

$50.99

R

Relay, 50 AMP

515176775

$15.79

R

Relay, 30 AMP

515176774

$21.99

RE

Female Housing, 3 Circuits

710000879

$25.99

RE

Cap

710000882

$11.49

RE

Seal

710000881

$17.99

RE

Female Terminal

710000877

$9.12

RPO

Male Housing, 3 Circuits

515175494

$16.18

RPO

Male Terminal

515175232

$1.58

RS

Female Housing, 3 Circuits

409209600

$35.99

RS

Wire Seal

515176621

$7.49

RS

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

SA

Female Terminal

515175231

$4.39

SA

Female Housing, 3 Circuits

515175495

$16.18

SB

Housing

710000568

$11.12

SB

Male Terminal

515176164

$7.16

SB

Wire Seal

515176621

$7.49

SD

Female Terminal

409010100

$5.61

SD

Female Terminal Housing, 1 Circuit

409010400

$7.62

SD

Tie Wrap 94 mm | 4X4

293750001

$1.03

SW1

Female Terminal

409010100

$5.61

SW1

Female Terminal Housing, 1 Circuit

409010400

$7.62

VC1

Female Terminal

409010100

$5.61

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

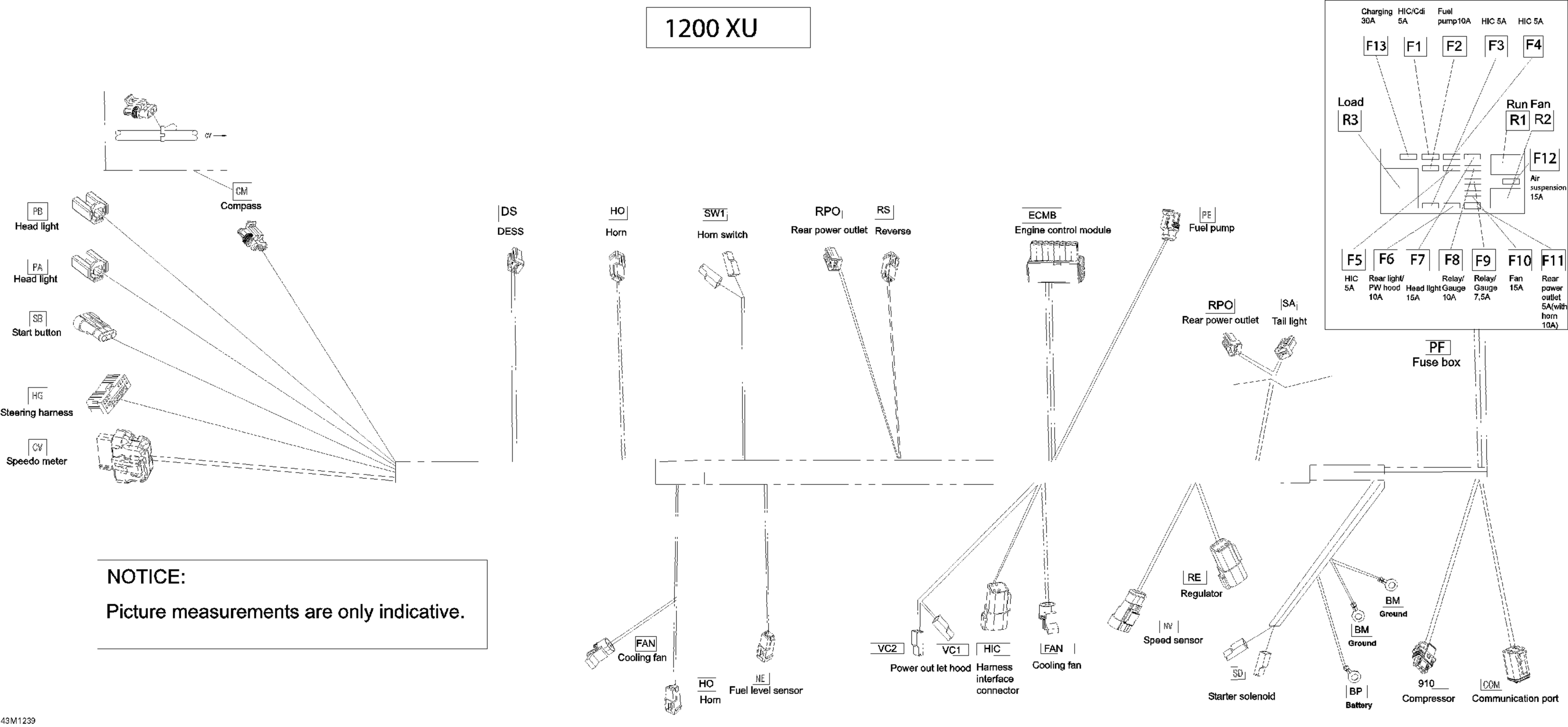

Ski-Doo Expedition LE 1200 XU, 2012 10- Electrical Harness Diagram

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to VC

Female Housing, 3 Circuits

Tie Wrap 142 mm

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Open Barrel

Open Barrel

Female Housing, 3 Circuits

Tie Wrap 142 mm

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Female Terminal

Sealing Cap

Male Housing, 6 Circuits

Male Wedge, 6 Circuits

Plug

Female Housing, 24 Circuits

Retainer Block

Wire Seal

Female Terminal

Female Housing

Female Terminal

Female Terminal

Female Housing, 3 Circuits

ECM Connector

COVER - Call your local BRP dealership

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

LOCK - Call your local BRP dealership

Latch

SEAL - Call your local BRP dealership

FEMALE TERMINAL - Call your local BRP dealership

Little Fuse, 5 Amperes

Little Fuse, 7.5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Little Fuse, 30 Amperes

Housing

Male Terminal

Wire Seal

Female Terminal

Female Terminal

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

Male Connector, 4 Circuits | CE

Male Lock, 4 Circuits | CE

Sealing Cap

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Male Terminal

Male Terminal Housing, 2 Circuits

Housing

Male Terminal

Clip

Wire Seal

Female Housing

Terminal

Female Housing

Terminal

Female Terminal

Female Housing, 2 Circuits

Wire Seal

Fuse Puller

Fuse Cover

Foam

Fuse Box Base Ass´y

Relay, 50 AMP

Relay, 30 AMP

Female Housing, 3 Circuits

Cap

Seal

Female Terminal

Male Housing, 3 Circuits

Male Terminal

Female Housing, 3 Circuits

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Female Terminal

Female Housing, 3 Circuits
