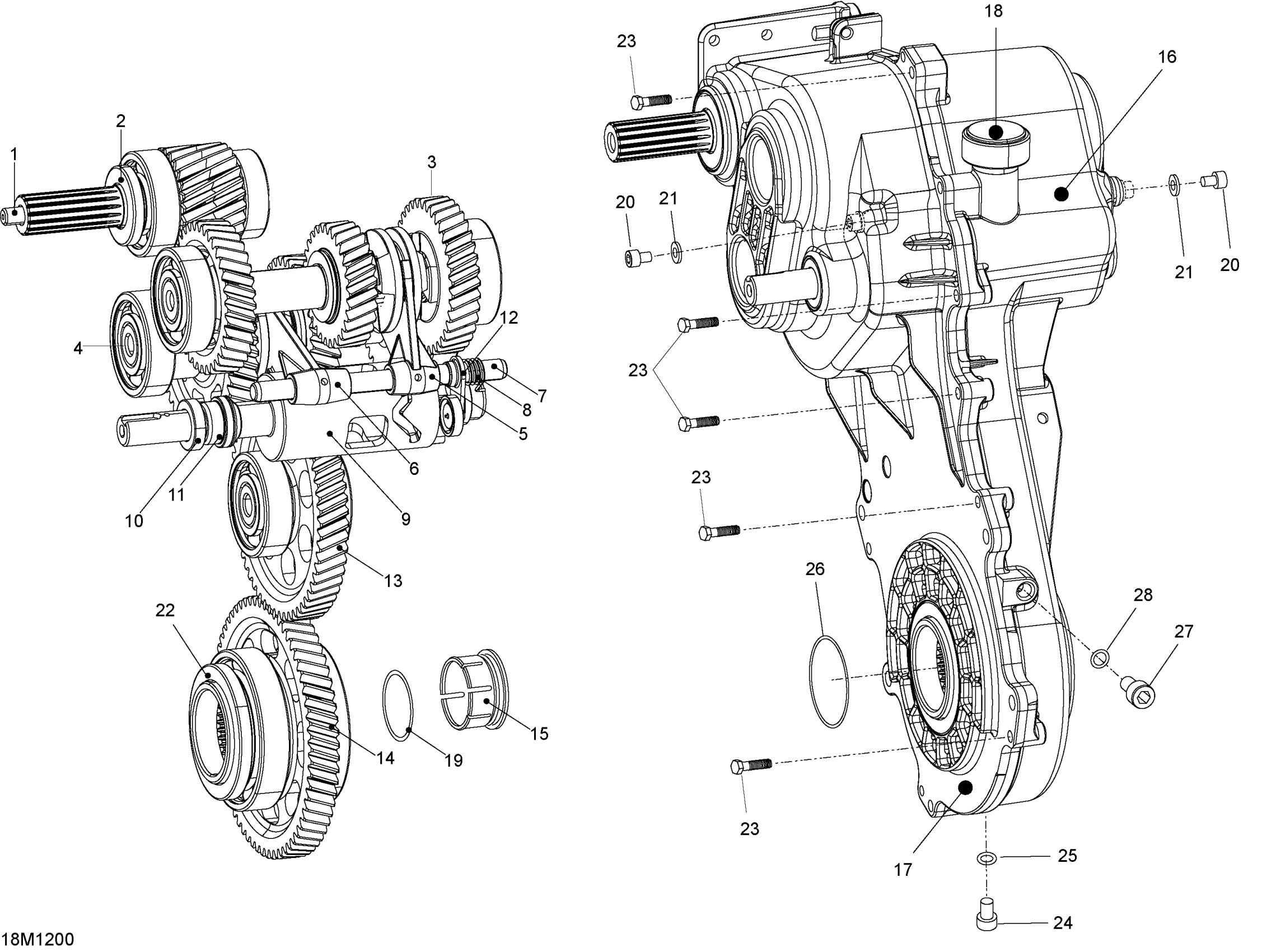

Ski-Doo Expedition LE 1200 XU, 2012 05- Transmission Diagram

#

Description
Price

-

Transmission Ass'y (Fast Ratio)

619230078

$2.00

1

Countershaft Ass'y | Gear Box 1.98

619230009

$635.99

2

Oil seal

619230010

$18.49

3

Main Shaft Ass'Y (Fast) This part replaces 619230012.

619230061

$709.99

4

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$603.99

5

Fork, Forwards

619230055

$149.99

6

Fork, reverse

619230015

$209.99

7

Shaft

619230016

$30.49

8

Spring

619230017

$16.99

9

Shifting Drum

619230056

$209.99

10

Oil seal This part replaces 619230052.

619230019

$20.49

11

Bushing

619230020

$11.54

12

Locking lever

619230021

$56.99

13

Middle gear

619230022

$239.99

14

Lower gear

619230023

$439.99

15

Magnetic Cap

504152821

Unavailable

16

COVER, OUTSIDE (RH) - Call your local BRP dealership

619230025

Unavailable

17

Cover Lh (Inside) This part replaces 619230067.

619230075

$379.99

18

Oil Plug

619230027

$41.49

19

O-Ring

619230028

$4.44

20

Screw

619230029

$5.40

21

Washer

619230030

$8.04

22

Oil seal

619230031

$20.49

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Allen Screw M8 x 10

619230037

$6.03

25

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

26

Gasket Ring

619230048

$12.70

27

Allen Screw M10 x 16

619230038

$4.02

28

Seal Ring

619230047

$4.02
