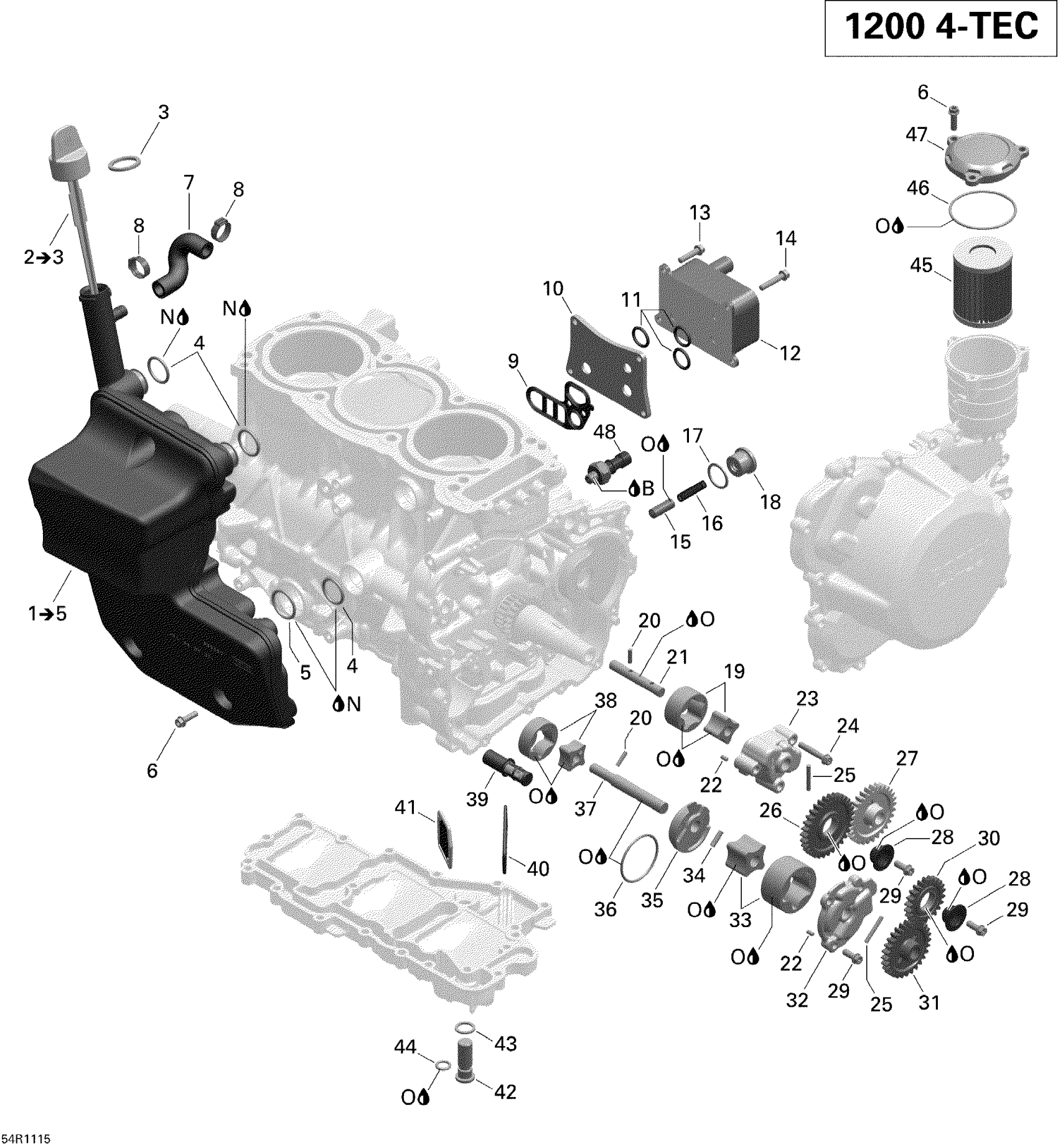

Ski-Doo Expedition LE 1200 XU, 2011 Engine Lubrication Diagram

#

Description
Price

1

Oil Tank Ass'y | Includes 1 to 5

420656386

$124.60

2

Oil Lever Tube Ass'y | Includes 2 to 3

420856661

$23.10

3

Gasket Ring

420431790

$8.09

4

O-Ring

420931634

$16.39

5

O-Ring

420430068

$16.39

6

Torx Flange Screw M6 X 20

420440207

$2.91

7

Air Vent Line

420460021

$16.39

8

Clamp

420951273

$5.06

9

Gasket

420431283

$22.36

10

PLATE - Call your local BRP dealership

420951460

$30.57

11

O-RING - Call your local BRP dealership

420630400

$0.85

12

Oil Radiator

420891914

$115.64

13

Torx Flange Screw M6 X 25

420440234

$2.91

14

Torx Flange Screw M6 X 30

420440647

$1.91

15

Pressure Regulating Piston

420256513

Unavailable

16

Spring

420239445

$12.15

17

Gasket Ring

420650465

$11.18

18

SCREW PLUG M22 X 1.5 - Call your local BRP dealership

420640278

Unavailable

19

Oil Pump Rotor, Suction

420256681

$33.55

20

Needle Pin

420232731

$1.79

21

OIL PUMP SHAFT - Call your local BRP dealership

420837911

$17.13

22

Needle Pin

420929075

$2.00

23

Oil Pump Housing

420611861

$39.52

24

Torx Flange Screw M6 X 35

420641258

$3.19

25

Needle Pin

420232431

$4.21

26

Idle Gear, 31 Teeth

420835055

$23.10

27

Oil Pump Gear, 29 Teeth

420834882

$10.21

28

Graduated Spacer This part replaces 420947390.

420947396

$26.09

29

Torx Flange Screw M6 X 16

420440162

$3.01

30

Idle Gear, 22 Teeth

420835051

$22.36

31

Oil Pump Gear, 28 Teeth

420834887

$10.21

32

Oil Pump Cover

420611980

$32.06

33

Oil Pump Rotor

420256831

$69.37

34

Needle Pin

420632221

$4.15

35

Oil Pump Cover

420611950

$52.96

36

O-Ring

420631830

$2.00

37

OIL PUMP SHAFT - Call your local BRP dealership

420837915

Unavailable

38

Oil Pump Rotor, Pressure

420256671

$31.31

39

OIL SIEVE - Call your local BRP dealership

420856658

Unavailable

40

Oil Sieve

420856650

$12.93

41

Oil Sieve

420856655

$12.93

42

Screw Plug M14 X 1.5

420941841

$23.10

43

Gasket Ring

420230500

$1.79

44

O-Ring

420430115

$2.19

45

Oil Filter

420956124

$19.37

46

O-Ring

420230923

$2.97

47

Oil Filter cover

420612135

$10.78

48

Oil Pressure Switch

420256915

$37.28

B

Loctite 243, 10 ml

293800060

$21.49

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable
