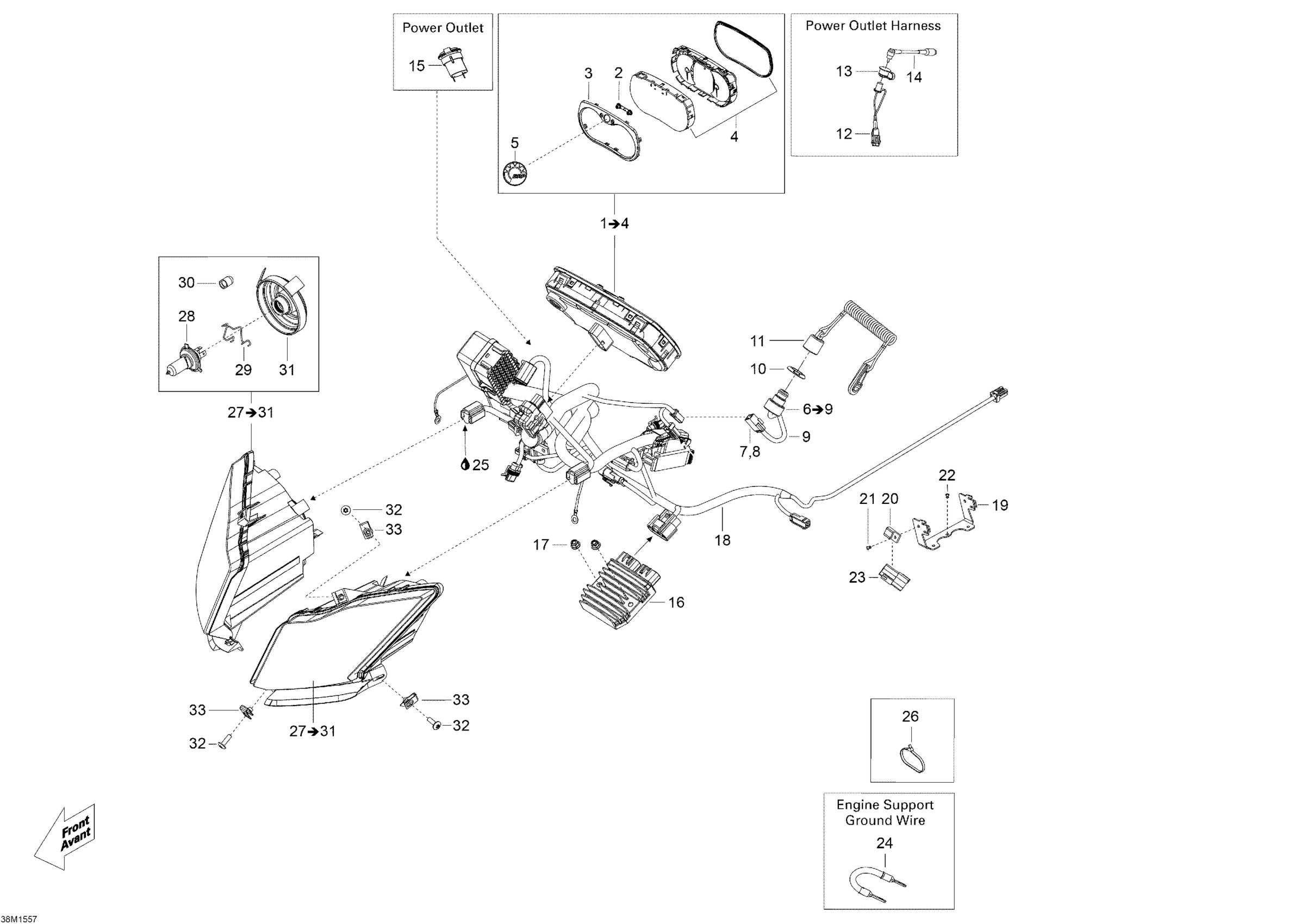

Ski-Doo Expedition LE 1200 4-TEC, 2015 Electrical System _38M1557 Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$596.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

DESS Switch

515177249

$102.96

7

Male Terminal

515175232

$1.45

8

Male Housing, 3 Circuits

515175494

$14.90

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.12

11

DESS

515178284

$79.07

12

Visor Harness

515177837

$31.31

13

Cap

572103300

$9.36

14

Extension

515175851

$10.55

15

DC Outlet

710001248

$35.79

16

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To VMS

515177689

Unavailable

19

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

20

Clip

270000141

$9.57

21

Avdel Rivet 3/16"

293150037

$0.54

22

Pop Rivet 3/16"

390402200

$0.30

23

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

24

Ground Wire

515176883

$26.84

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Tie-Rap 180 mm

414115200

$0.10

26

Tie Wrap 94 mm | 4X4

293750001

$0.96

26

Tie Wrap 142 mm

293750002

$1.01

27

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

27

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

28

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Cap

515176498

$11.82

31

Rubber Cap Protector

219800280

$17.13

32

Torx Screw M6 X 20

250000722

$1.54

33

Panel Nut M6 X 1.0

250100198

$1.99
