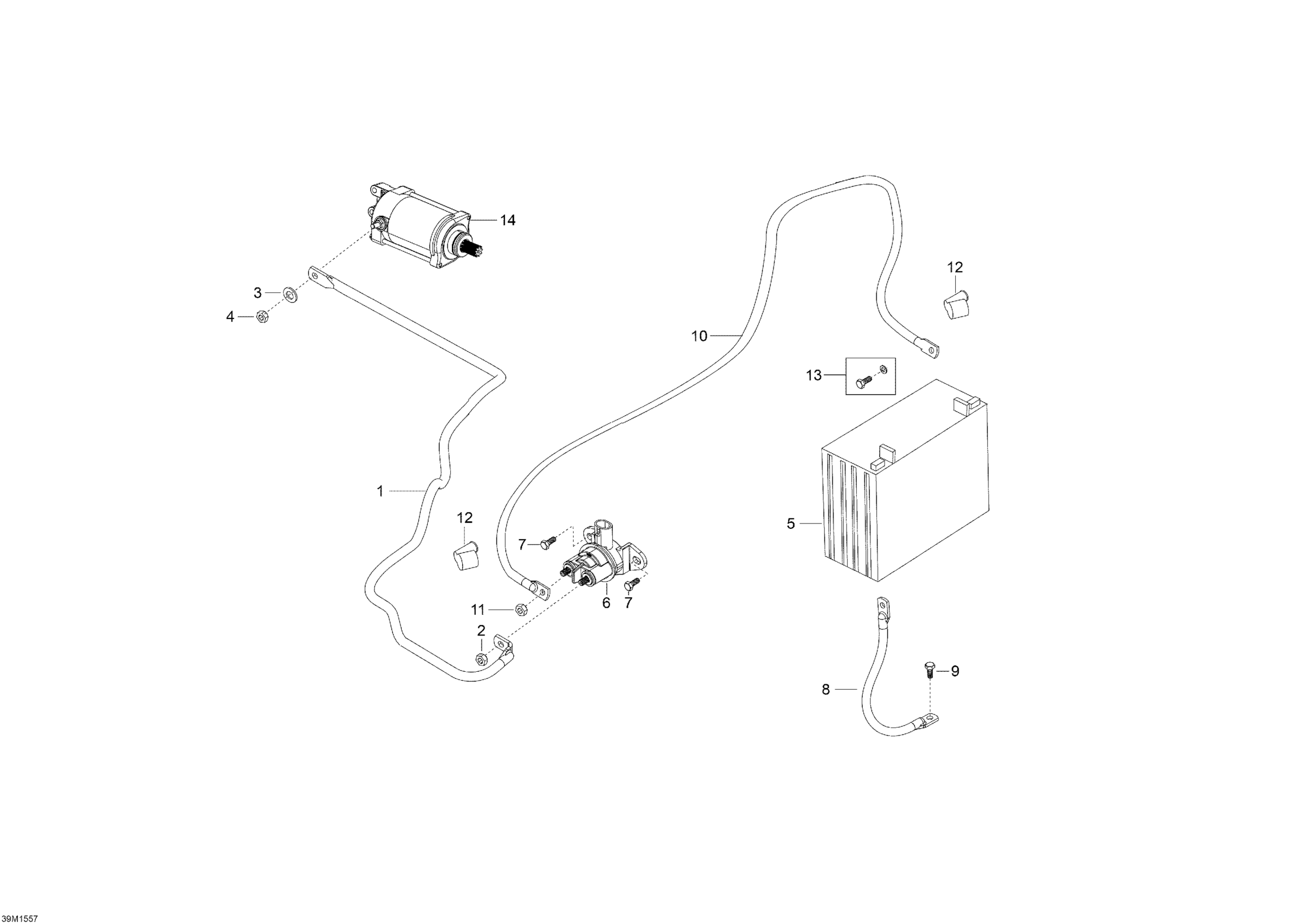

Ski-Doo Expedition LE 1200 4-TEC, 2015 Battery And Starter _39M1557 Diagram

#

Description

Price

1

Start cable 1000 mm.

515176779

$55.94

2

Elastic Stop Nut M6

232561434

$1.78

3

Flat Washer 6 mm

234061410

$1.19

4

Elastic Stop Nut M6

232561434

$1.78

5

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

6

Starter Relay

278003012

$40.27

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

8

Ground Wire

515176777

Unavailable

9

Hex. Flange Screw M6 X 16

207661644

$0.70

10

Battery Wire

515176778

Unavailable

11

Elastic Stop Nut M6

232561434

$1.78

12

Protector Cap

710000495

$9.84

13

Battery Bolt Kit

250000282

$3.39

14

Starter Ass'y | Includes 25 to 26

420893531

$297.99
