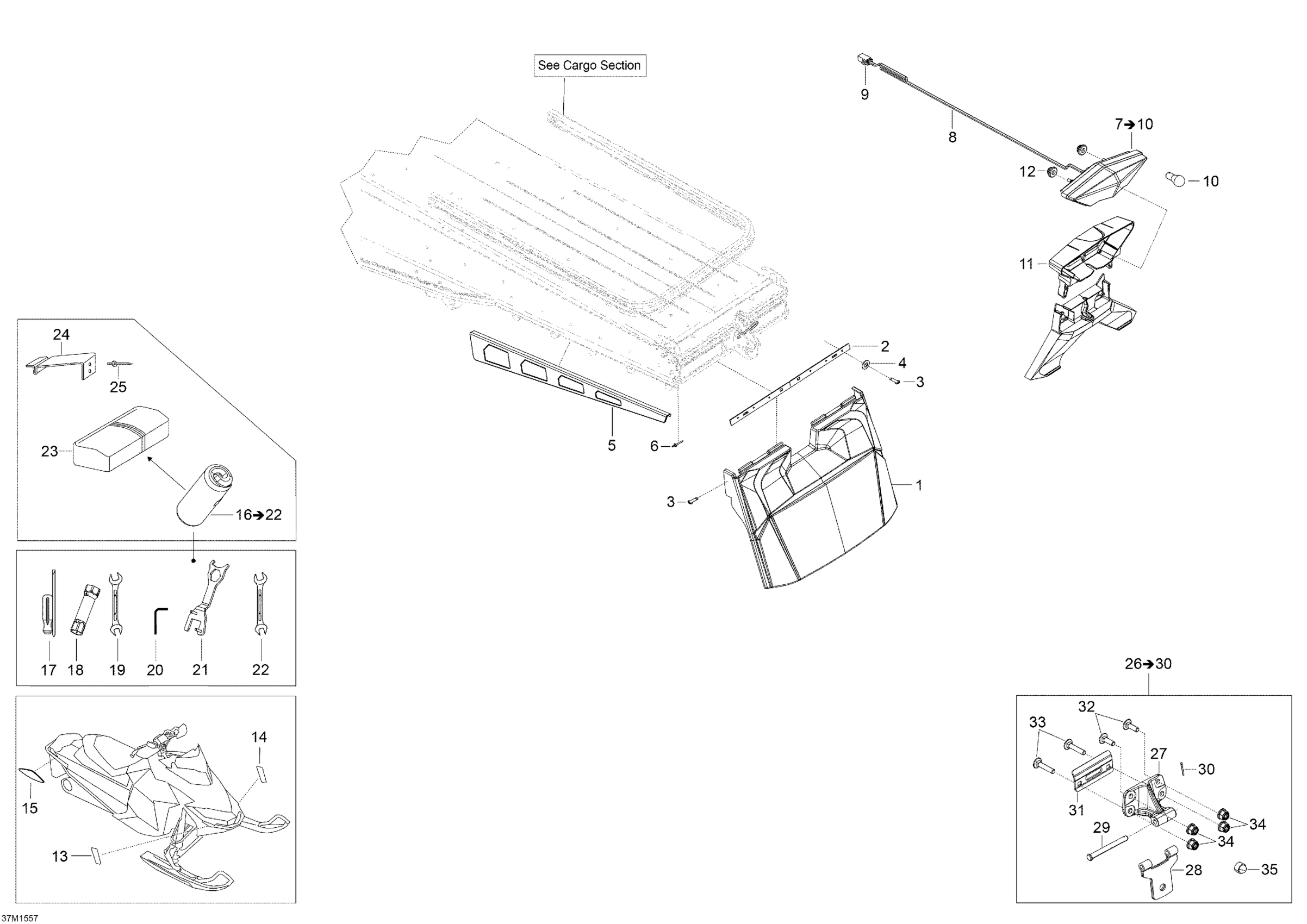

Ski-Doo Expedition LE 1200 4-TEC, 2015 Utilities _37M1557 Diagram

#

Description
Price

1

Snow Guard

520001406

$86.99

2

Plate

520001021

$33.55

3

Forming Screw M5 x 16

250000676

$0.96

4

Washer M5

250200025

$0.70

5

RH Protector

520000693

$52.96

5

LH Protector

520000694

$52.96

6

Rivet Hucklok

293150163

$2.73

7

Rear Light | Includes 200 to 200a

520000848

$93.25

8

Rear Wiring Harness

520000849

$49.22

9

Male Housing, 3 Circuits

515175494

$14.90

10

Bulb

520000758

$8.60

11

Rear Light Cover

511000764

$35.04

12

Stopper Rubber

705014429

$6.09

13

Yellow, RH Reflector

520001600

$30.57

14

Yellow, LH Reflector

520001601

$30.57

15

Red, Lateral Reflector

705003412

$12.88

16

Tool Kit | Includes 16 To 22

529000066

$46.99

17

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

18

Set Key, 16/21 mm

529000046

$14.49

19

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

20

Spacing Tool

520001142

$10.99

21

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

22

Wrench

34017

Unavailable

23

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

24

Tool Kit Rack

5346728

Unavailable

25

Rivet

36108

$1.79

26

Hitch Ass'y | Includes 3600 to 3600a

520001398

$69.37

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

30

Cotter Pin

41031

$6.07

31

Plate

520000727

$32.81

32

Carriage Bolt, M8 X 25 | XXC

207782544

$1.51

33

Bolt Carriage M8 X 40

207784044

$1.06

34

Hex. Flange Elastic Nut M8

233281414

$1.31

35

Cover | Model-T3

28056

$5.36
