Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417224091

$309.99

3

Flange Slide Ass'y

417224044

$294.99

4

Bushing

417222758

$22.49

5

Circlip

293370037

$3.19

6

Rampe 735

417223679

$38.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Stopper Washer

417223660

$3.17

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y

417223650

$44.99

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.98

14

Seat Spring

417223752

$15.27

15

Clutch Spring

417224085

$17.39

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Conical Spring Washer M14

250200144

$4.44

23

Pulley Drive Bolt

417300432

$41.49

24

Decal English

516005503

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Fixed Flange Ass'y

417127433

$629.99

27

Roller

417127189

$25.99

28

Pivot Stud

417127294

$14.49

29

Lock Washer 8 mm

250200009

$2.11

30

Spring Pin M3 X 30

250400063

$2.11

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

32

Circlip

293370049

$4.99

33

Cam Ass'y

417127412

$159.49

34

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

35

Circlip

293370049

$4.99

36

Release Spring

417127467

$46.49

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

38

Calibration Ass'y

415129604

$21.49

39

Socket Screw M5 X 25

205052544

$1.68

40

Flat Washer M5

234051410

$0.53

41

Elastic Stop Nut M5

232551414

$0.87

42

Washer

417127155

$8.26

43

Strength Washer

517302322

$12.63

44

Sleeve

417300453

$19.49

45

Hex. Cap Screw M8 X 75

207287544

$5.18

46

Spacer

417300252

$5.49

47

Spacer

417300265

$2.29

48

Shim

504112000

$8.59

49

Drive Belt

417300531

$199.99

50

Belt Guard

417300382

$90.99

51

Security Label, Belt Guard

516006900

Unavailable

52

Reinforcement

417300380

$7.29

53

Avex Rivet

390909200

$0.30

54

Guide

417300381

$11.99

55

Side Protector

417300356

$14.76

56

Pop Rivet 3/16"

293150103

$0.55

57

Belt Guard Bracket | Except Package SWT

417300363

$14.49

58

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

59

Belt Guard Bracket

417300373

$34.99

60

Brake Hose Cover | Except Package SWT

518325626

$29.99

61

Rivet Hucklok

293150163

$2.99

62

Hair Pin

114045200

$11.11

63

Air Duct | North America

417300468

$49.99

64

Torx Screw M6 X 20

250000722

$1.68

65

BELT GUARD BRACKET - Call your local BRP dealership

417300396

Unavailable

66

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

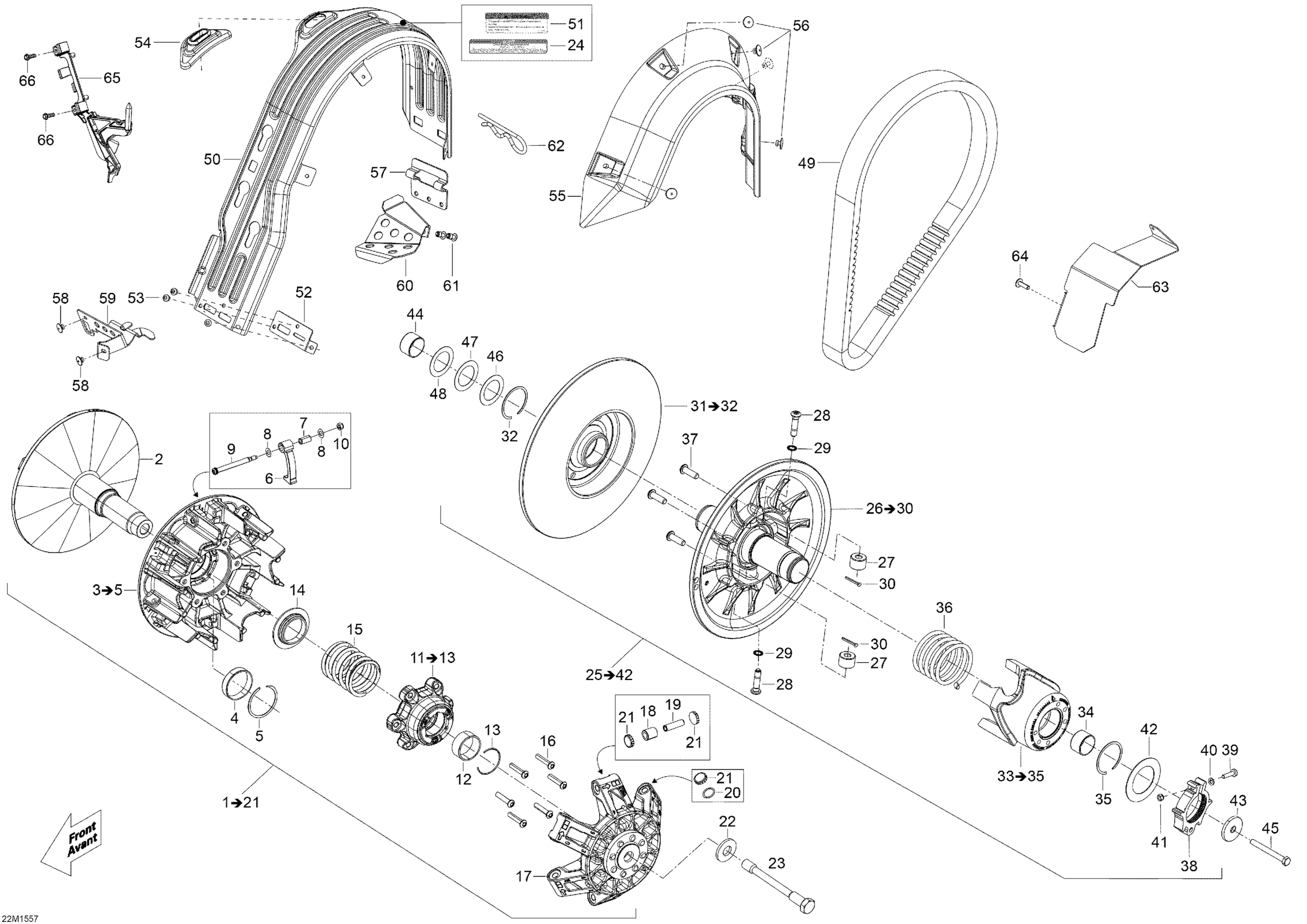

Ski-Doo Expedition LE 1200 4-TEC, 2015 05- Pulley System _22M1557 Diagram

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Flange Slide Ass'y

Bushing

Circlip

Rampe 735

Not Available As Spare Parts

Stopper Washer

Ramp Axle

Elastic Stop Nut M5

Spring Cover Ass'y

Not Available As Spare Part - Friction Washer

Circlip

Seat Spring

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Decal English

Not Available As Spare Part - Friction Washer

Fixed Flange Ass'y

Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Slider Flange Ass'y | Includes 100b to 100b3

Circlip

Cam Ass'y

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Release Spring

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Strength Washer

Sleeve

Hex. Cap Screw M8 X 75

Spacer

Spacer

Shim

Drive Belt

Belt Guard

Security Label, Belt Guard

Reinforcement

Avex Rivet

Guide

Side Protector

Pop Rivet 3/16"

Belt Guard Bracket | Except Package SWT

Pop Rivet 3/16" | DS 650 X

Belt Guard Bracket

Brake Hose Cover | Except Package SWT

Rivet Hucklok

Hair Pin

Air Duct | North America

Torx Screw M6 X 20

BELT GUARD BRACKET - Call your local BRP dealership

Hex. Flange Screw K50 X 2.24 X 16
