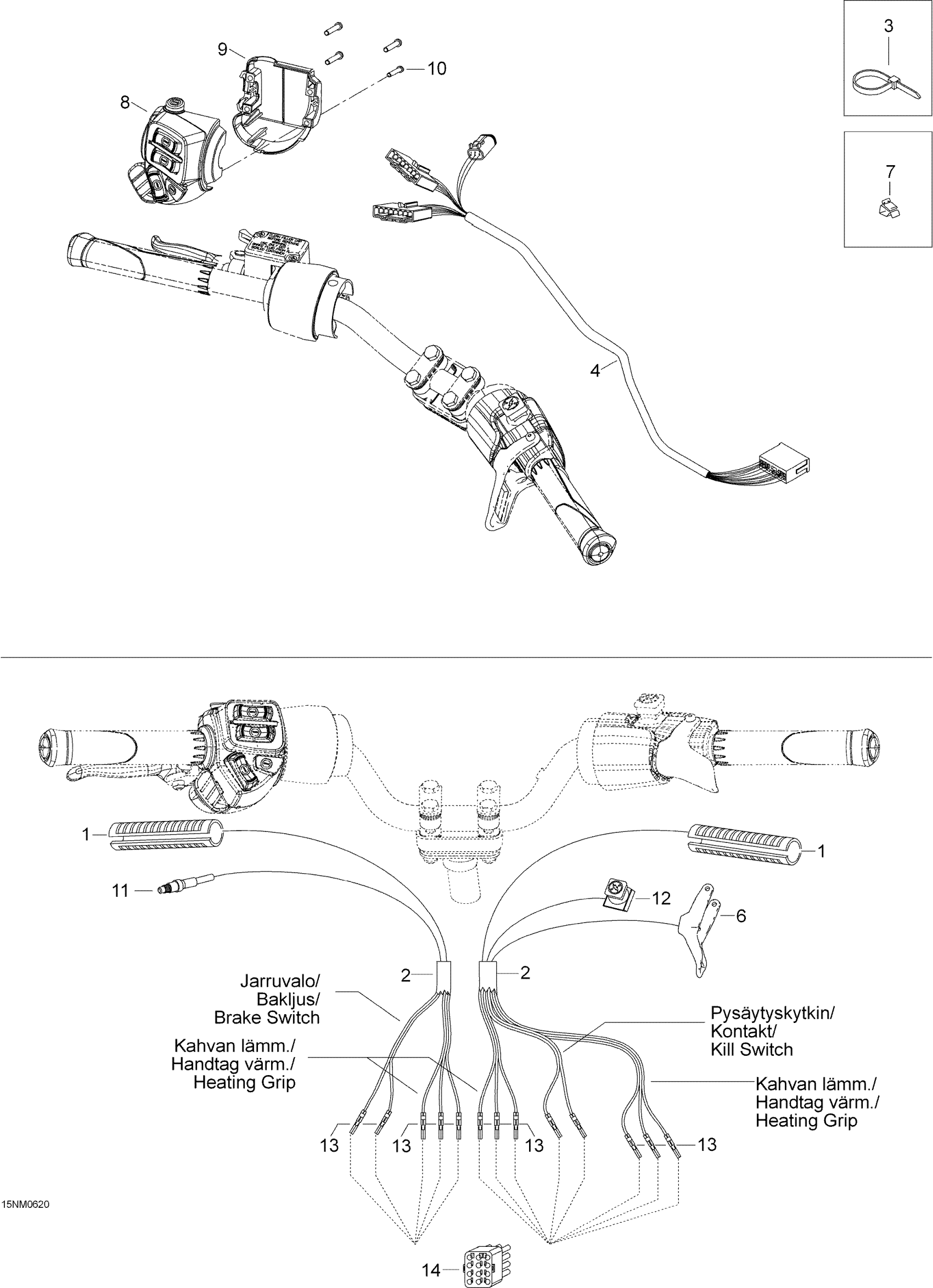

Ski-Doo Expedition 600 H.O. SDI, 2006 10- Steering Wiring Harness Diagram

#

Description
Price

1

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

2

Housing

M39023

Unavailable

3

TIE RAP 98MM - Call your local BRP dealership

M27010

Unavailable

3

Tie Rap 290 Mm

M27100

$7.86

4

Steering Harness

605353265

Unavailable

5

MAIN HARNESS - Call your local BRP dealership | Not shown in the picture

605153273

Unavailable

6

Throttle Handle

512059481

$76.99

7

Clip

414227300

$1.67

8

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

9

Switch Housing Plate

515175926

$20.99

10

Screw 3.5X25

M40903

Unavailable

11

Microswitch

507032366

$98.99

12

Kill Switch

515175410

Unavailable

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

Male Connector Housing

M42617

Unavailable
