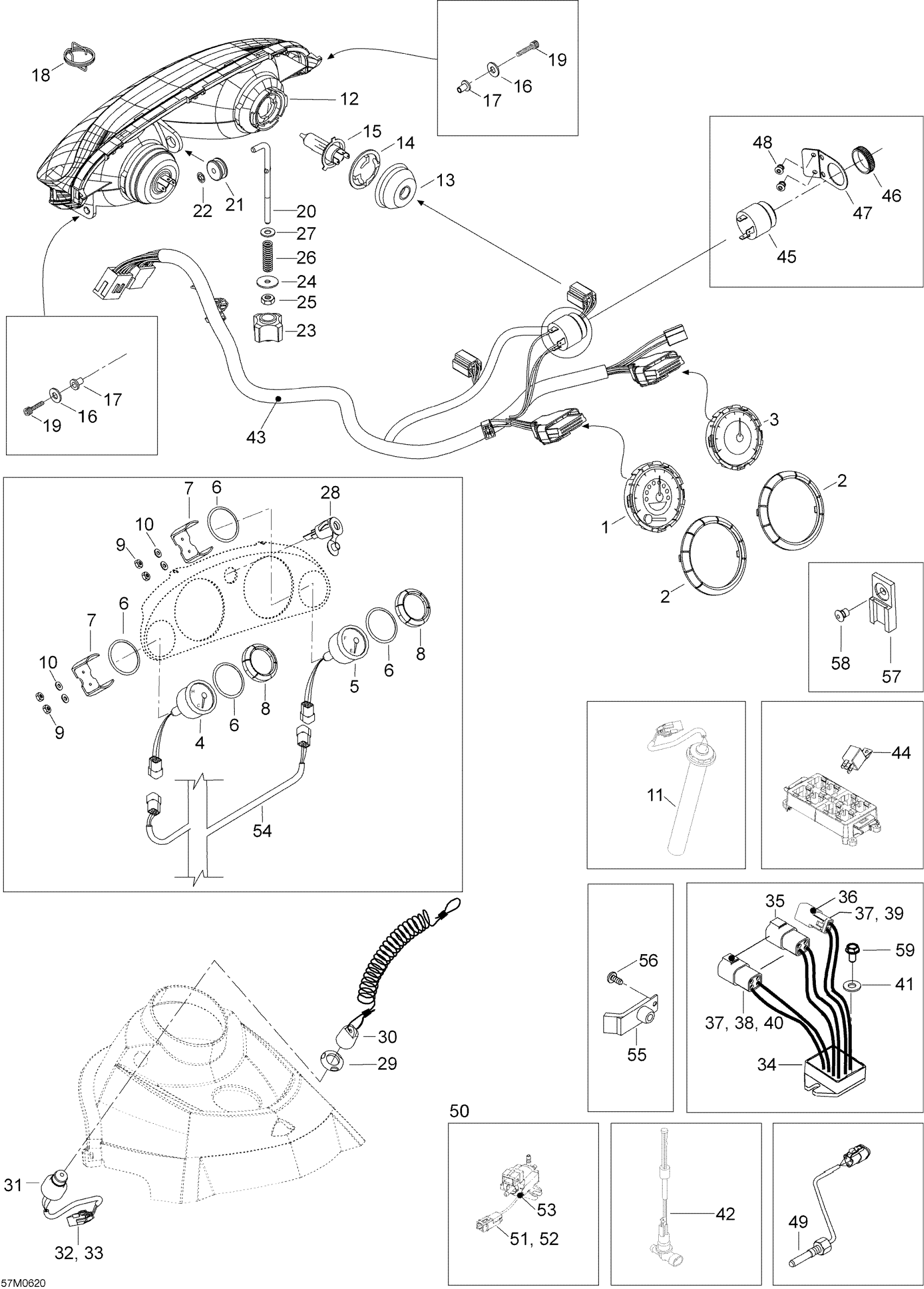

Ski-Doo Expedition 600 H.O. SDI, 2006 Electrical Accessories, Console Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176302

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.31

3

TACHOMETER - Call your local BRP dealership

515176303

Unavailable

4

Temperature Gauge

515175601

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

515175529

Unavailable

6

O-RING - Call your local BRP dealership

414807200

Unavailable

7

Case Holder

415099800

Unavailable

8

RING GAUGE - Call your local BRP dealership

515175711

Unavailable

9

Elastic Stop Nut M4

232541414

$0.55

10

Washer

20037

$1.99

11

Fuel Sensor

605253587

Unavailable

12

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$279.82

13

COVER - Call your local BRP dealership

515175911

Unavailable

14

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

16

Washer 5,3 mm

20008

$0.70

17

NUT M5 - Call your local BRP dealership

250100018

$6.25

18

SPRING - Call your local BRP dealership

M5447238

Unavailable

19

Screw M5X35

M40235

Unavailable

20

ADJUSTER ROD - Call your local BRP dealership

605450023

Unavailable

21

Grommet - Call your local BRP dealership

415100800

Unavailable

22

Push Nut

732610072

$1.97

23

Handle - Call your local BRP dealership

515175548

Unavailable

24

WASHER - Call your local BRP dealership

M20038

Unavailable

25

Elastic Stop Nut M6

232561414

$1.78

26

SPRING - Call your local BRP dealership

415100600

Unavailable

27

Flat Washer 6 mm

234061410

$1.19

28

DC Outlet

710001248

$35.79

29

Safety Nut (DESS Switch)

278002963

$3.12

30

DESS

515178284

$79.07

31

DESS Switch

515177249

$102.96

32

Male Terminal

515175232

$1.45

33

Male Housing, 3 Circuits

515175494

$14.90

34

Voltage Regulator | Includes 32 to 38

515176243

$335.04

35

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

36

Mâle Terminal Housing, 2 Circuits

278001674

$29.07

37

Male Terminal

515175568

$7.25

38

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

39

Male Lock, 2 Circuits

278001672

$2.93

40

Sealing Cap

293000052

$2.93

41

Flat Washer 6 mm

234062410

$0.73

42

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

43

Harness Ass'y

605153275

Unavailable

44

Relais *Relay This part replaces 410113604.

515177672

$43.25

45

HORN - Call your local BRP dealership

515176035

Unavailable

46

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

47

Holder

M5447941

Unavailable

48

Rivet

36005

$1.96

49

Temperature Sensor

515176132

Unavailable

50

Heater Element

515176256

Unavailable

51

Male Terminal Housing, 2 Circuits

515175654

$7.25

52

Male Terminal

515175232

$1.45

53

Heating Element Bracket

512059809

Unavailable

54

Harness Ass'y

605153859

Unavailable

55

Pressure Sensor

270600040

$181.31

56

Screw Plastofast Mp 6 X 16 Pz

293700048

$2.00

57

Clip

270000141

$9.57

58

Rivet

36005

$1.96

59

Screw

M40322

Unavailable
