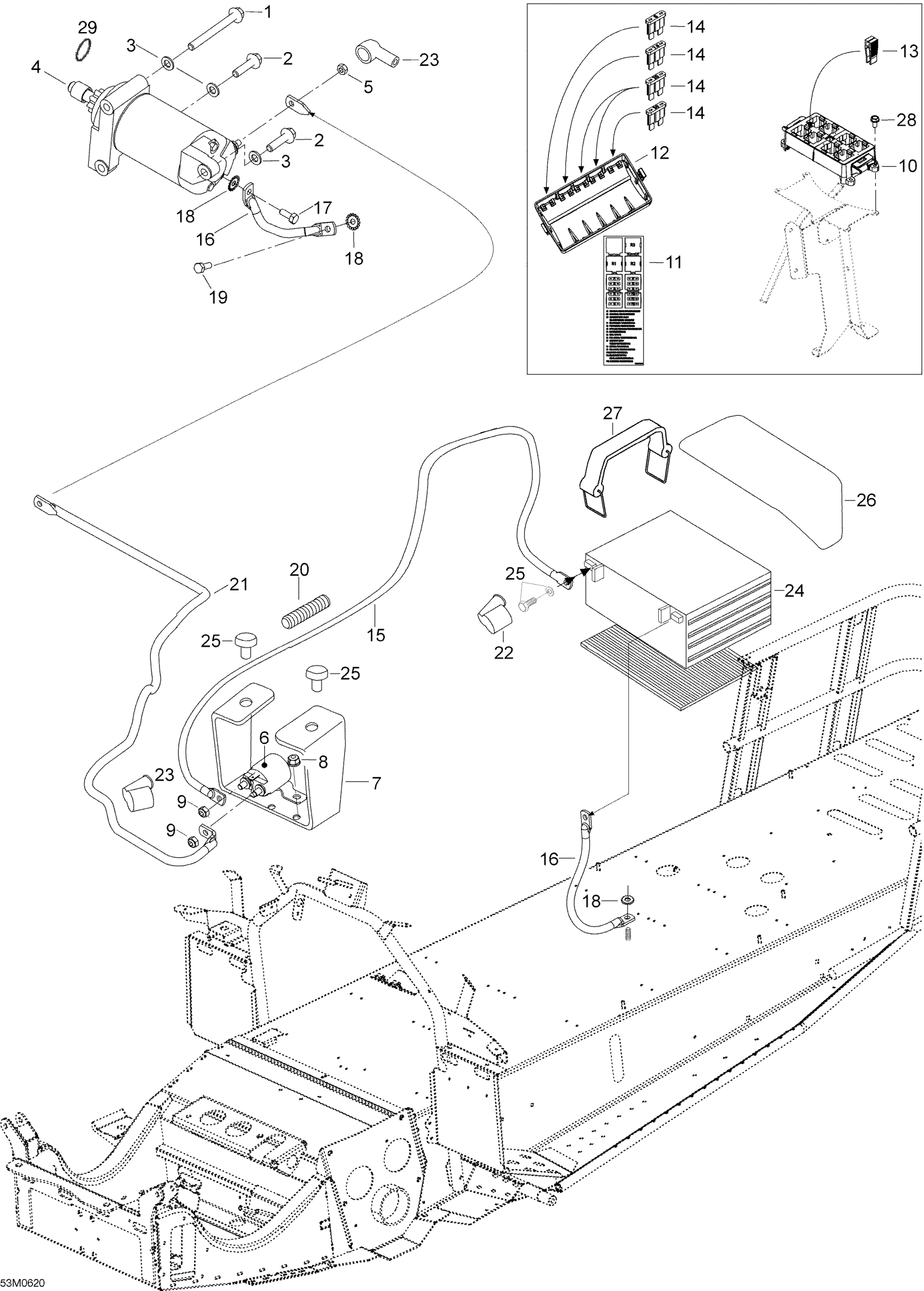

Ski-Doo Expedition 600 H.O. SDI, 2006 10- Electrical Accessories Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

2

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

3

Flat Washer With Teflon 8 mm

250200008

$3.80

4

Electric Starter Ass'y

515176133

$319.49

5

Elastic Stop Nut M6

232561414

$0.55

6

Starter Relay

515176011

$62.49

7

BRACKET - Call your local BRP dealership

605351708

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Elastic Stop Nut M6

232561414

$0.55

10

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

COVER - Call your local BRP dealership

515176066

Unavailable

13

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

14

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

14

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

14

Fuse 1 A

M42044

Unavailable

15

Battery Wire

605151524

Unavailable

16

GROUND WIRE - Call your local BRP dealership

515175483

Unavailable

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

18

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

19

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

20

HOUSING - Call your local BRP dealership

M28015

Unavailable

21

BATTERY WIRE - Call your local BRP dealership

M5348358

Unavailable

22

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

23

Protection Cap

570151000

$21.99

24

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

25

Battery Bolt Kit

250000282

$7.29

26

Rubber Bumper

570044700

$13.10

27

COVER - Call your local BRP dealership

605352572

Unavailable

28

STEEL STRIP - Call your local BRP dealership

605352573

Unavailable

29

O-RING - Call your local BRP dealership

278001159

Unavailable
