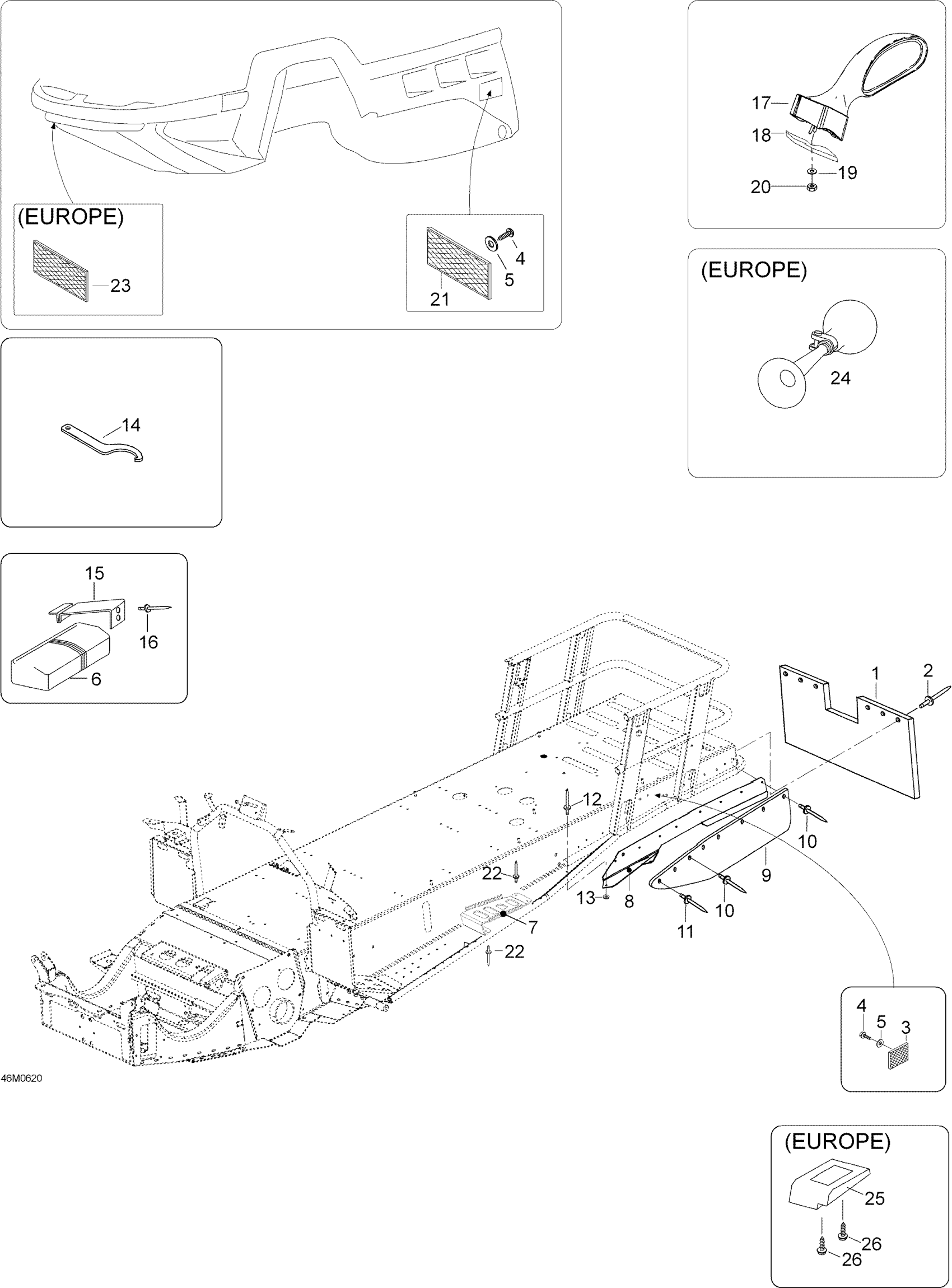

Ski-Doo Expedition 600 H.O. SDI, 2006 09- Utilities Diagram

#

Description
Price

1

Snow guard This part replaces M538629.

538629

$95.99

2

Black, Rivet

M36036

$1.69

3

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

3

Reflector, Amber | Europe

M21121

Unavailable

4

Screw

M40070

Unavailable

5

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

6

TOOL KIT - Call your local BRP dealership

605350525

Unavailable

7

Footrest

520000492

$19.99

8

RH SIDE SNOW GUARD - Call your local BRP dealership

605251249

Unavailable

8

LH SIDE SNOW GUARD - Call your local BRP dealership

605251248

Unavailable

9

Side Snowguard This part replaces M5142828.

5142828

$30.49

10

RIVET - Call your local BRP dealership

M36097

Unavailable

11

Rivet *Rivet

M36891

Unavailable

12

Rivet

36005

$2.11

13

Washer 5,3 mm

20008

$0.74

14

ADJUSTMENT WRENCH - Call your local BRP dealership

529035582

Unavailable

15

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable

16

Rivet

36108

$1.90

17

RH Mirror

605250583

Unavailable

17

LH Mirror

605250582

Unavailable

18

RH ADAPTOR - Call your local BRP dealership

605350577

Unavailable

18

LH Adaptor

605350576

Unavailable

19

Washer

20037

$2.11

20

Elastic Stop Nut M4

232541414

$0.58

21

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

22

Rivet

M36489

Unavailable

23

REFLECTOR, WHITE - Call your local BRP dealership | Europe

M21060

Unavailable

24

Horn

549011291

$35.99

25

RH Rear Footrest | Europe

414975300

Unavailable

25

LH Rear Footrest | Europe

414975400

Unavailable

26

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable
