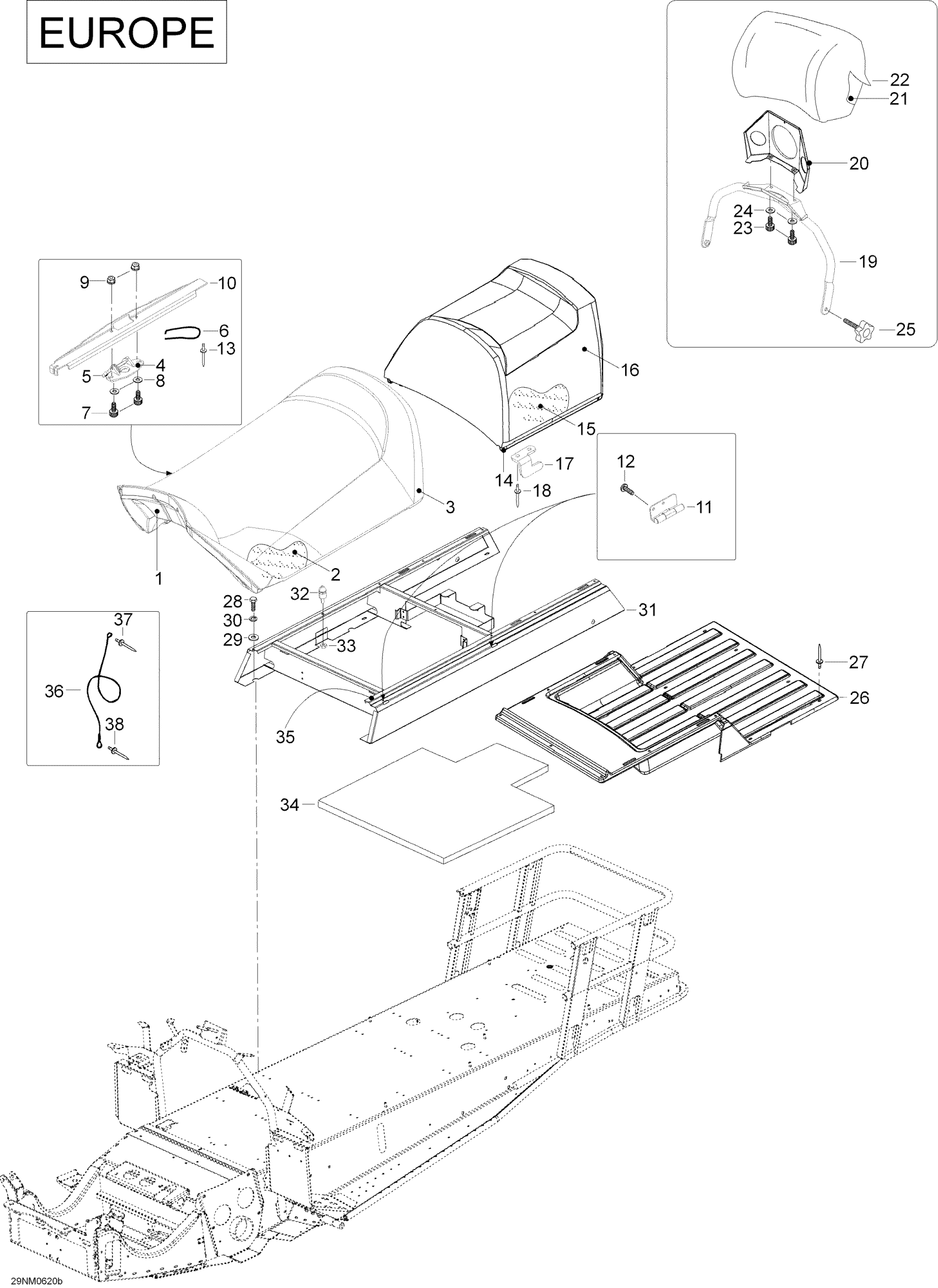

Ski-Doo Expedition 600 H.O. SDI, 2006 Seat 2 Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Foam. Front

605251389

Unavailable

3

Cover, Front

605251422

Unavailable

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Spring

269700017

$8.34

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.19

9

Elastic Stop Nut M6

232561414

$1.78

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Hinge

605351798

$38.78

12

Screw 4,2 X 16

M40890

Unavailable

13

Rivet

M36088

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

Foam, Rear

605251391

Unavailable

16

Cover

605251425

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$0.99

19

Backrest

605251730

Unavailable

20

Support Plate

605252096

Unavailable

21

FOAM - Call your local BRP dealership

605252104

Unavailable

22

COVER - Call your local BRP dealership

605251431

Unavailable

23

Hex. Screw M8 X 16

M40066

Unavailable

24

Lock Washer 8 mm

234181401

$0.87

25

Handle M8 X 35 | Model-T3

510003533

$41.76

26

COVER - Call your local BRP dealership

605151397

Unavailable

27

Rivet

36036

Unavailable

28

Hex. Screw M6 X 16

207161644

$0.70

29

Flat Washer 6 mm

234062410

$0.73

30

Lock Washer M6, Black

234161471

$0.51

31

Seat Base

605252651

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

33

Elastic Stop Nut M6

232561414

$1.78

34

FOAM - Call your local BRP dealership

605352460

Unavailable

35

Sealing Strip

M28413

Unavailable

36

Seat Retainer Cable

293750070

$9.93

37

Black Rivet

36037

$1.43

38

Rivet

M36489

Unavailable
