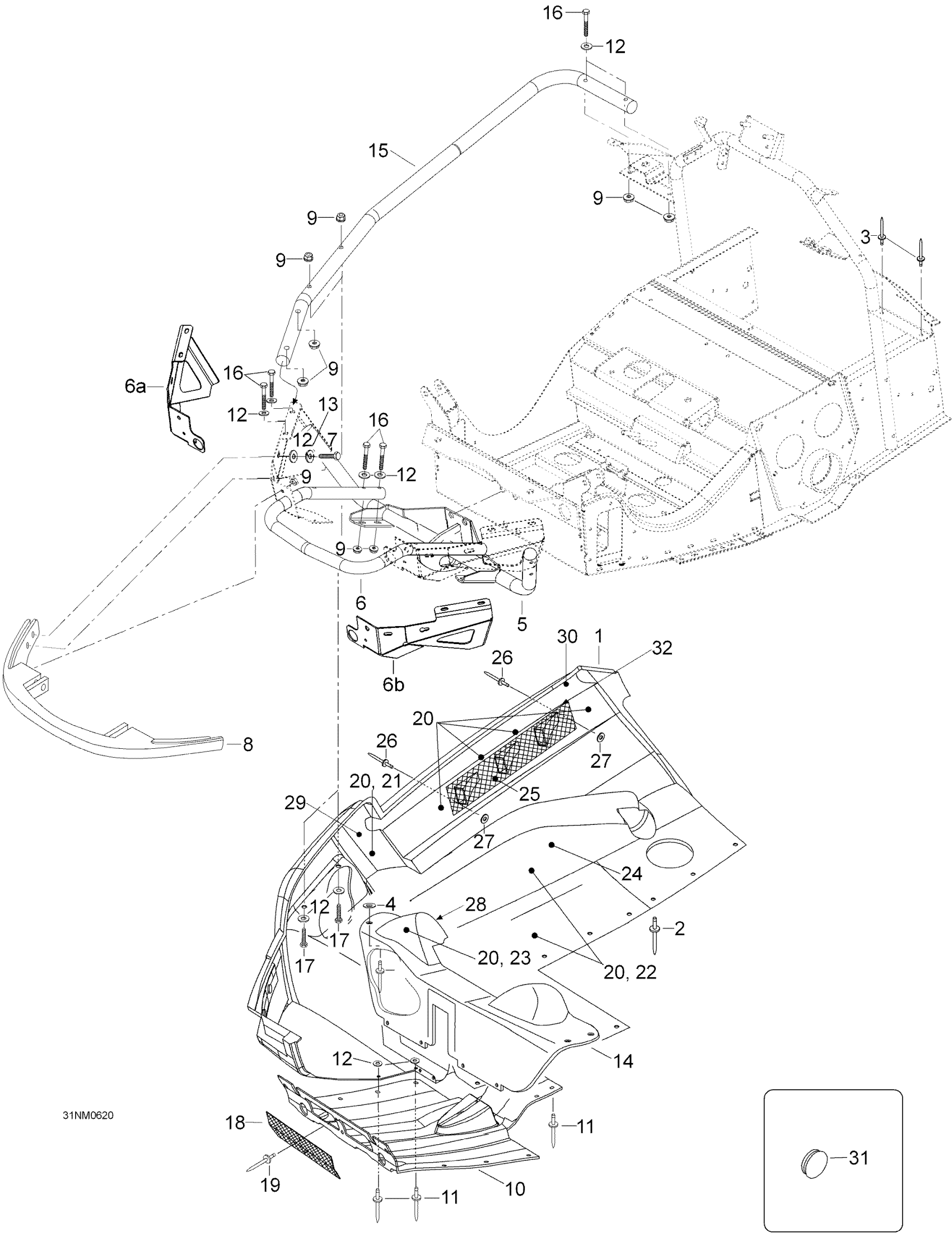

Ski-Doo Expedition 600 H.O. SDI, 2006 09- Bottom Pan Diagram

#

Description
Price

1

LH BOTTOM PAN - Call your local BRP dealership

605152578

Unavailable

1

LH Boyyom Pan

605149805

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.90

4

Washer 5,3 mm

20008

$0.74

5

Bumper Support

605350850

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

6a

RH Bumper Support

605250848

Unavailable

6b

LH Bumper Support

605250847

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

Bumper, Black

502006719

$101.49

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

BOTTOM PAN, MIDDLE - Call your local BRP dealership

605152620

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.77

13

Lock Washer M6, Black

234161471

$0.53

14

Cover

605252530

Unavailable

15

SIDE BUMPER - Call your local BRP dealership

605152371

Unavailable

16

Hex. Screw M6 X 40

207064044

$1.48

17

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

18

Grille

605252587

Unavailable

19

Black Rivet

36037

$1.48

20

Reflective Sheet, 1000mm X 1000mm

M40001

Unavailable

21

Heat Protection Tap

605351212

Unavailable

22

Heat Protection Tap

605351213

Unavailable

23

Heat Protection Tap

605351214

Unavailable

24

L.h Acoustic Foam

605351367

Unavailable

25

GRILL - Call your local BRP dealership

605351546

Unavailable

26

Black, Rivet

M36036

$1.69

27

Washer 5,3 mm

20008

$0.74

28

REFLECTIVE SHEET - Call your local BRP dealership

605451560

Unavailable

29

HEAT PROTECTOR - Call your local BRP dealership

605451561

Unavailable

30

Heat Protector

605451562

Unavailable

31

Bottom Pan Cap

570277300

Unavailable

32

Reflective Sheet

605351616

Unavailable
