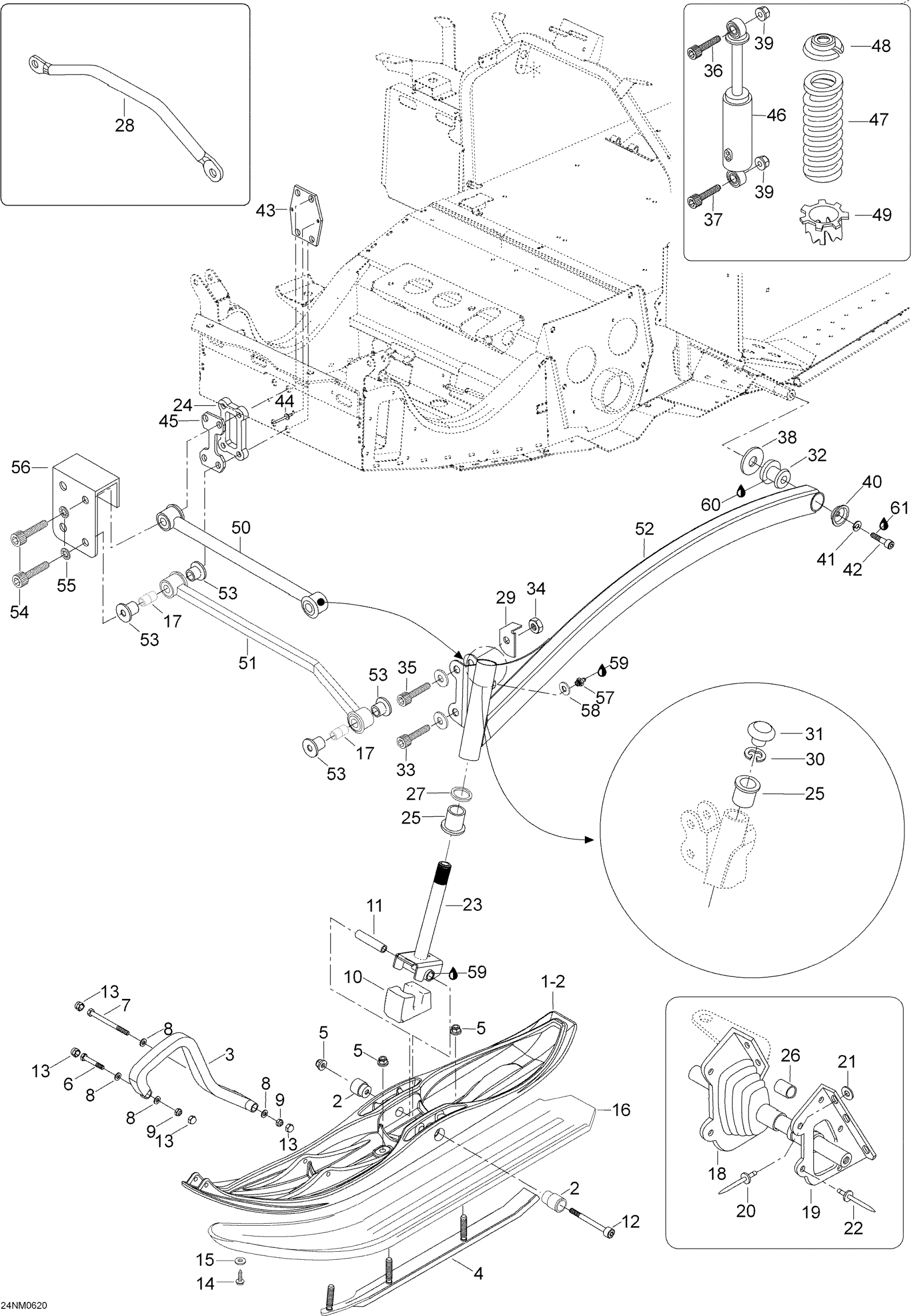

Ski-Doo Expedition 600 H.O. SDI, 2006 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski | Europe models

505073034

$238.49

2

Bushing | Europe models

605348392

$52.99

3

Black, Handle

505070963

$35.99

4

RUNNER CARBIDE KIT - Call your local BRP dealership

619400005

Unavailable

5

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

6

Hex. Screw M8 X 50

207085044

$1.48

7

Hex. Screw M8 X 90

207089044

$3.48

8

Flat Washer 8 mm

234081410

$0.83

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

11

Spacer

506133300

$23.99

12

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$14.22

13

Cover | Model-T3

28056

$5.89

14

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

15

Washer

20037

$2.11

16

Ski Liner

605153964

$106.49

17

BUSHING - Call your local BRP dealership

605450024

$20.99

18

RH Tie Rod Cap

570024800

Unavailable

18

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

19

RH COVER PLATE - Call your local BRP dealership

605350120

Unavailable

19

LH COVER PLATE - Call your local BRP dealership

605350119

Unavailable

20

Black Rivet

36037

$1.48

21

Washer 5,3 mm

20008

$0.74

22

Rivet This part replaces M36009.

36009

$1.15

23

Ski Leg

506151234

Unavailable

24

Spacer 17.5

605350191

Unavailable

25

Cushion

505070003

$9.23

26

BUSHING - Call your local BRP dealership

572036500

Unavailable

27

WASHER - Call your local BRP dealership

505070004

Unavailable

28

SUPPORT SHAFT - Call your local BRP dealership

605352875

Unavailable

29

RH Plate Locking

605448861

Unavailable

29

LH Plate Locking

605448862

Unavailable

30

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

31

Cap

572091300

$12.99

32

DAMPER - Call your local BRP dealership

570062200

Unavailable

33

Screw Allen M12 X 55

M40371

Unavailable

34

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

35

Allen Screw M12 X 60

M40306

Unavailable

36

Screw M10 X 55

M40837

Unavailable

37

Socket Head Screw. M10 X 50

M40136

Unavailable

38

WASHER - Call your local BRP dealership

503146700

Unavailable

39

Elastic Locking Nut M10 X 1.5

233601416

$1.69

40

Cup | Package Hunter

705007171

$7.89

41

Lock Washer 8 mm

234181401

$0.92

42

Screw Allen M8 X 20

M40810

Unavailable

43

Plate

605450675

Unavailable

44

Rivet

36005

$2.11

45

MIDDLE PLATE - Call your local BRP dealership

605450900

Unavailable

46

Shock This part replaces M23183.

23183

$248.99

47

White Spring

M25067

Unavailable

48

Spring Seat

230076

$9.69

49

CAM - Call your local BRP dealership

M230078

Unavailable

50

UPPER ARM ASSY - Call your local BRP dealership

605350022

$119.99

51

LOWER ARM - Call your local BRP dealership

605252224

$149.99

52

Swing Arm Weld RH

605251768

$275.49

52

LH SWING ARM - Call your local BRP dealership

605251499

Unavailable

53

CUSHION - Call your local BRP dealership

506149100

$14.49

54

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

55

Lock Washer

M20074

Unavailable

56

PLATE - Call your local BRP dealership

605350192

Unavailable

57

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

$11.99

58

Flat Washer 6 mm

234061410

$1.36

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

60

Grease, Super Lube

293550030

$28.99

61

Loctite 243, 10 ml

293800060

$21.49
