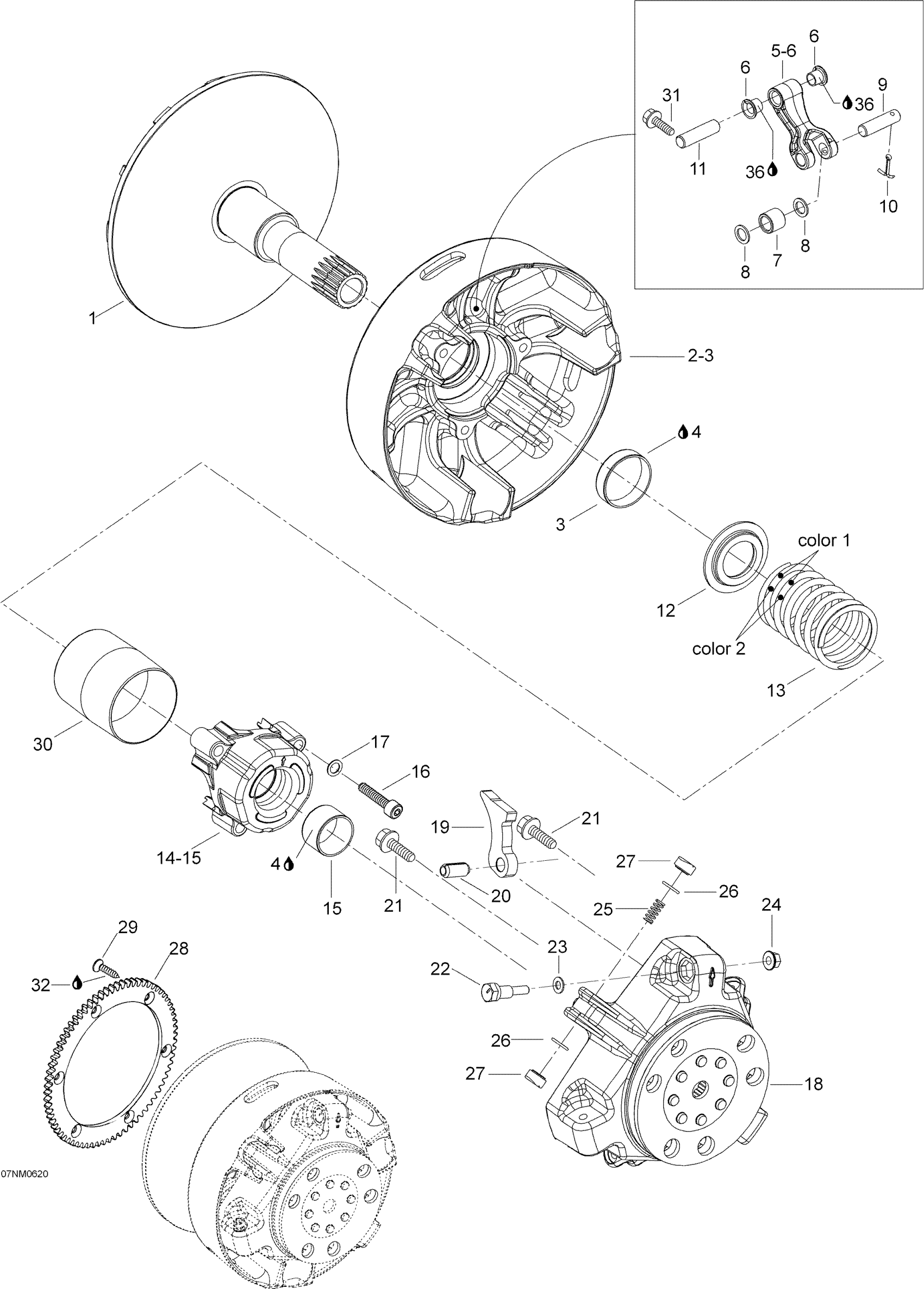

Ski-Doo Expedition 600 H.O. SDI, 2006 Drive Pulley Diagram

#

Description
Price

-

Not Available As Spare Part - Friction Washer

Unavailable

-

Drive pulley ass'y | Europe, Includes 1 to 32

605614001

Unavailable

1

FIXE FLANGE - Call your local BRP dealership

417222777

Unavailable

2

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

3

Bushing

417222758

$20.12

4

Loctite 609, 10 ml

413703100

$23.85

5

Lever | Includes 10f to 10g

417222671

$46.24

6

Bushing

417004305

$8.76

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417004308

$12.79

9

Pin

417222594

$13.69

10

Cotter Pin

250400060

$1.84

11

Lever Axle

417223164

$4.12

12

Spring Seat

417222312

$8.03

13

SPRING YELLOW/GREEN - Call your local BRP dealership

414742100

Unavailable

13

Tra Spring

414993000

$52.96

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

15

Bushing

417009204

$15.64

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

17

Lock Washer 8 mm

250200009

$2.00

18

Governor Cup

417222213

Unavailable

19

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

19

Ramp 600

417222444

$32.81

20

Spring Pin M10 X 22

250400050

$2.73

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

22

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

23

Washer

417005600

$3.75

24

Hex. Flange Nut M6

233061414

$1.54

25

Spring

417005700

$4.51

26

O-Ring

732401030

$0.93

27

Slider Shoe This part replaces 420460045.

417223021

$5.99

28

RING GEAR - Call your local BRP dealership

417223043

Unavailable

29

HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership

250000049

Unavailable

30

Guard

417009205

$16.39

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

32

Loctite 271, 10 ml

293800005

$23.85
