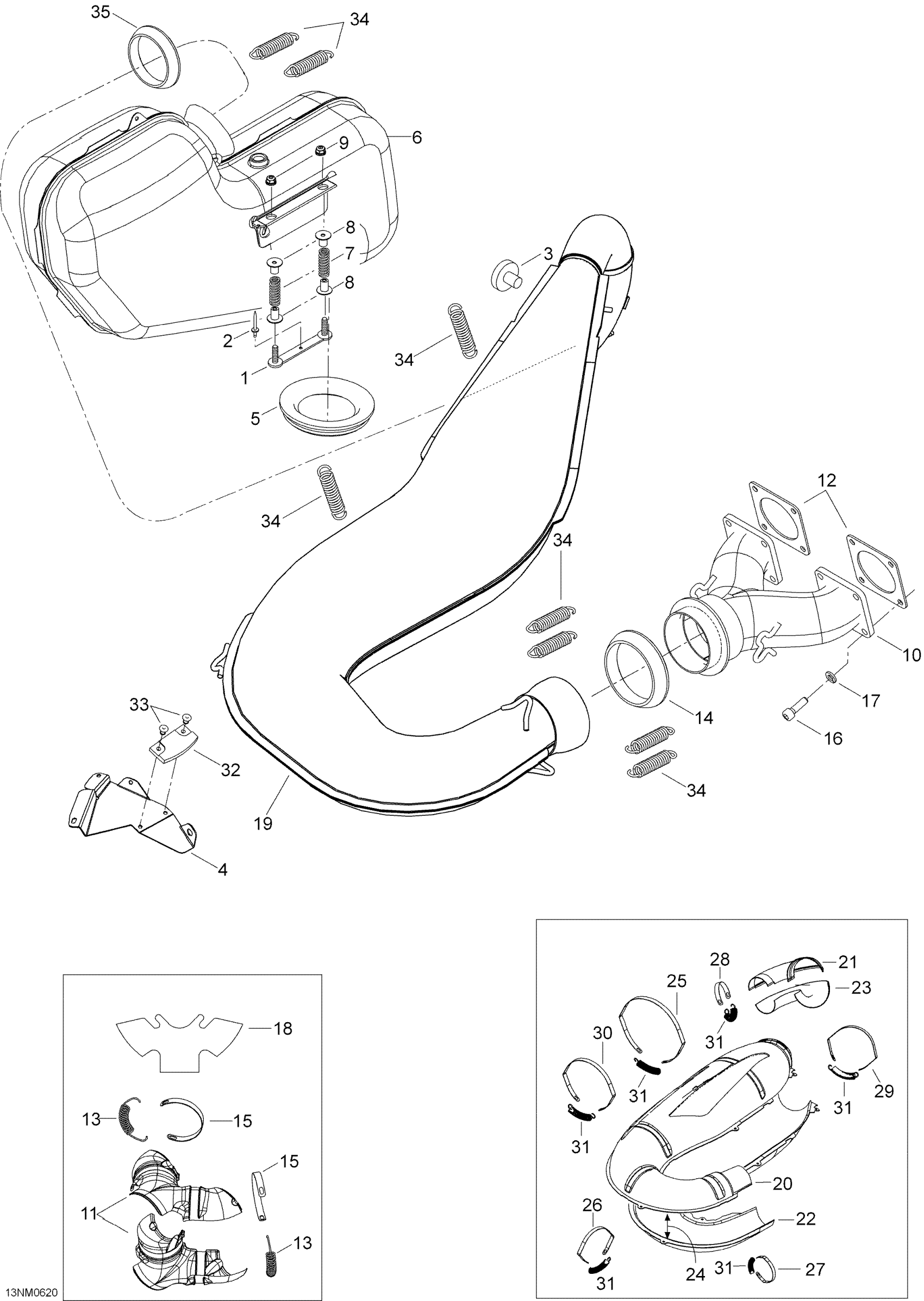

Ski-Doo Expedition 600 H.O. SDI, 2006 01- Exhaust System Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

605453843

Unavailable

2

Rivet

M36489

Unavailable

3

Rubber Bumper

514053654

$50.99

4

SUPPORT - Call your local BRP dealership

605351705

Unavailable

5

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

6

Muffler Ass'y

605153845

Unavailable

7

SPRING - Call your local BRP dealership

414913700

Unavailable

8

GUIDE - Call your local BRP dealership

514053343

Unavailable

9

Lock Nut Vm8

M33029

Unavailable

10

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

11

Enveloppe, Exhaust Manifold

514053593

Unavailable

12

Gasket

420850552

$8.85

13

Spring

514053643

$6.35

14

Exhaust Gasket

514053487

$26.49

15

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

16

Socket Head Screw M6 X 20

M40052

Unavailable

17

Lock Washer M6, Black

234161471

$0.53

18

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable

19

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 19 to 31

514054003

Unavailable

20

UPPER FRONT HALF ENVELOPPE - Call your local BRP dealership

514053181

Unavailable

21

UPPER REAR HALF ENVELOPPE - Call your local BRP dealership

514054008

Unavailable

22

LOWER ENVELOPE - Call your local BRP dealership

514053367

Unavailable

23

LOWER REAR HALF ENVELOPPE - Call your local BRP dealership

514054009

Unavailable

24

INSULATIN WOOL - Call your local BRP dealership

514054010

Unavailable

25

RETAINING STRAP - Call your local BRP dealership

514053540

Unavailable

26

Retaining Strap

514053501

$9.27

27

Retaining Strap

514053498

$11.47

28

Retaining Strap

514053492

$13.10

29

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

30

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

31

Spring

514053643

$6.35

32

BUMPER - Call your local BRP dealership

514053352

Unavailable

33

Black Rivet

36037

$1.48

34

Spring

415107100

$6.35

35

Exhaust Gasket

514053677

$24.99
