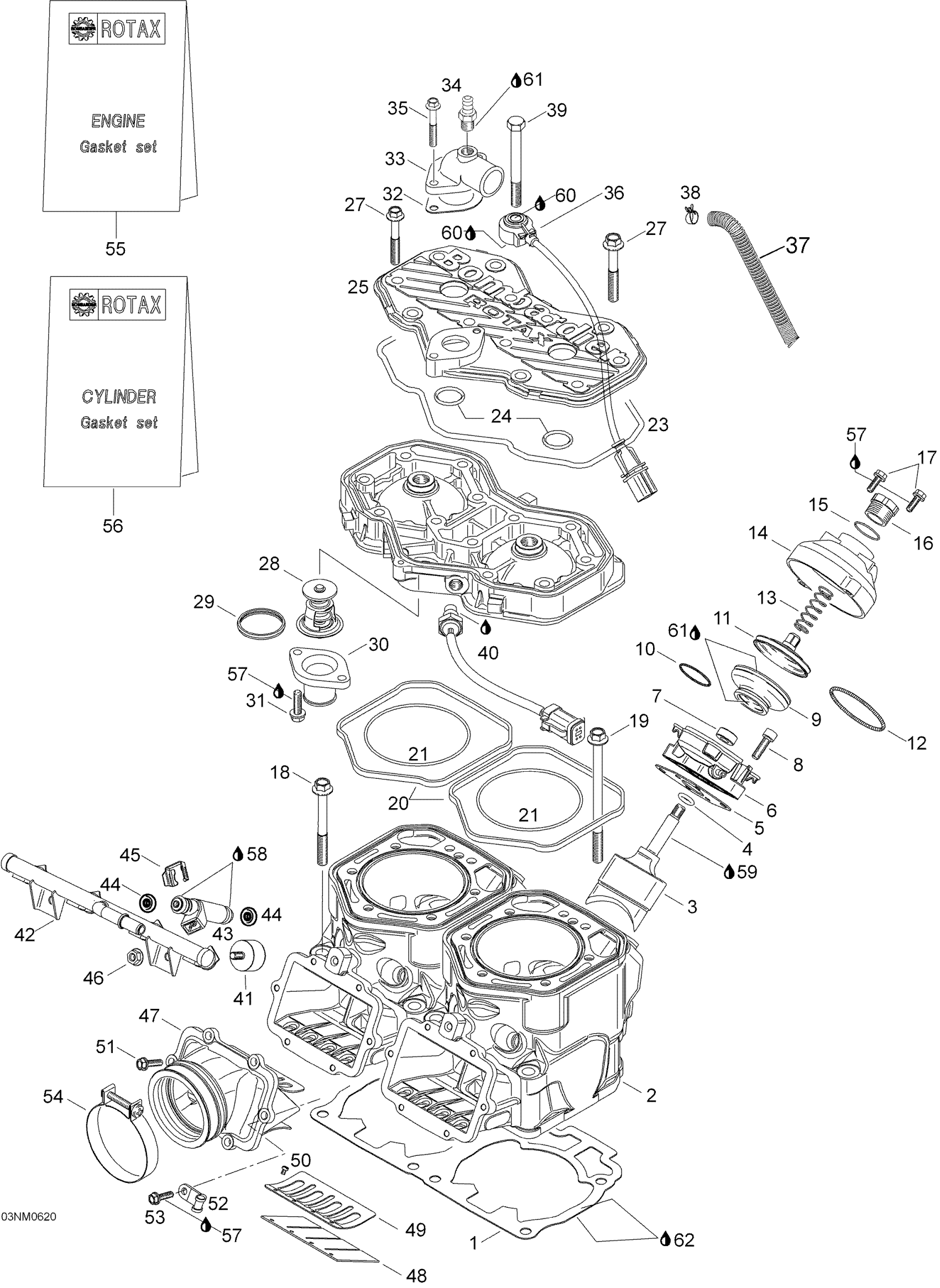

Ski-Doo Expedition 600 H.O. SDI, 2006 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$17.53

1

Gasket 0.6 mm

420431161

$23.49

1

Gasket 0.7 mm

420431162

$23.49

1

Double Gasket 0.8 mm

420431163

$23.49

2

CYLINDER H.O. SDI - Call your local BRP dealership

420613944

Unavailable

3

Exhaust Valve

420854650

$67.99

4

O-Ring

420430110

$4.44

5

Gasket

420931542

$7.37

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$9.27

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Bellows

420260729

$38.99

10

Hose Spring This part replaces 420838253.

420838255

$7.41

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Hose Spring This part replaces 420239048.

420939281

$7.41

13

SPRING - Call your local BRP dealership

420239942

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$29.49

15

O-Ring

420430220

$8.26

16

Adjuster Screw

420241221

$14.22

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

18

Hex. Collar Screw

420640524

$13.16

19

Hex. Collar Screw

420640534

$14.28

20

Rubber Ring

420931590

$6.19

21

O-Ring This part replaces 420850540.

293300026

$3.39

22

Cylinder Head

420613702

Unavailable

23

O-Ring This part replaces 290950320.

420950320

$14.28

24

O-Ring

420430782

$5.39

25

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

26

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

27

Hex. Screw M8 X 56.5

420941627

$8.57

28

Thermostat This part replaces 414834100.

420922519

$63.99

29

Sealing Ring

420931272

$15.89

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

32

Gasket

420850338

$11.60

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

Hose Nipple

420822340

Unavailable

35

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

36

Noise Sensor

270000484

$82.99

37

TUBE - Call your local BRP dealership

420460010

Unavailable

38

CLIP - Call your local BRP dealership

420960890

Unavailable

39

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

40

Temperature Sensor This part replaces 515176043.

515177835

$92.99

41

STOPPER - Call your local BRP dealership

420960065

Unavailable

42

RAIL FUEL - Call your local BRP dealership

420874490

Unavailable

43

Fuel Injectors

420874485

$238.49

44

O-Ring

420631220

$14.28

45

CLIP - Call your local BRP dealership

420851800

Unavailable

46

NUT - Call your local BRP dealership

420442172

Unavailable

47

SOCKET CARBURETOR - Call your local BRP dealership | Includes 47 to 50

420867240

Unavailable

48

Reed Pedal

420924680

$38.99

49

Reed Pedal Stop

420924695

$15.28

50

Phillips Screw M3 X 5

420941215

$1.69

51

Taptite Screw M5 X 16

420941928

Unavailable

52

Cable Clamp

420851115

Unavailable

53

Tapping Screw M5 X 22

420841550

$1.69

54

Clamp

420851065

$14.28

55

Gasket Set, Engine

420889931

$253.99

56

Gasket Set, Cylinder

420889936

$174.99

57

Loctite 243, 10 ml

293800060

$21.49

58

Dow Corning 111, 150 g

413707000

$59.99

59

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

60

Loctite 5910, 300 ml

293800081

$57.99

61

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

62

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
