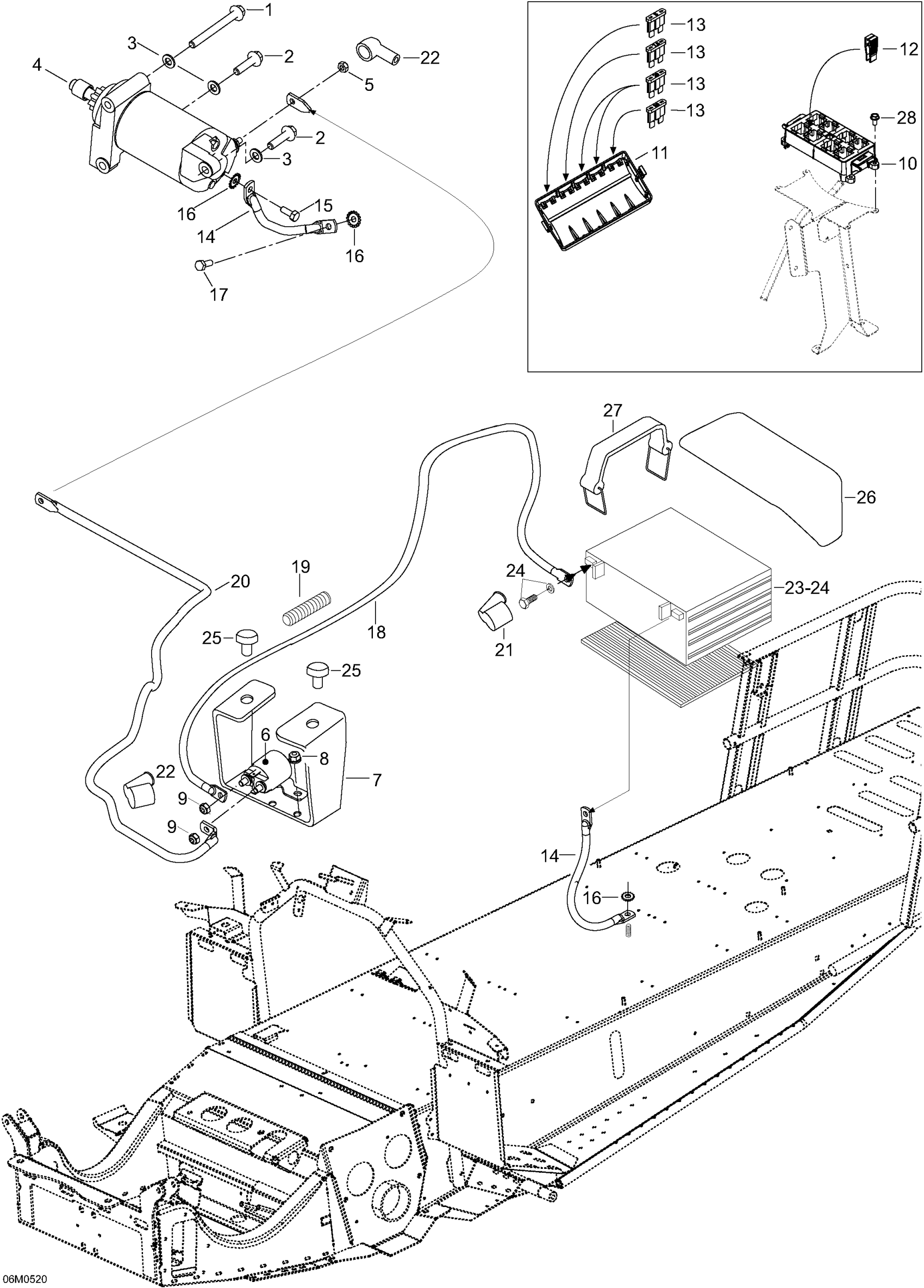

Ski-Doo Expedition 600 H.O. SDI, 2005 Electric Starter Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.80

2

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

3

Flat Washer With Teflon 8 mm

250200008

$3.12

4

Electric Starter Ass'y

515176133

$319.49

5

Elastic Stop Nut M6

232561414

$1.55

6

Starter Relay

515176011

$51.97

7

BRACKET - Call your local BRP dealership

605351708

$33.05

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Elastic Stop Nut M6

232561414

$1.55

10

FUSE BOX BASE - Call your local BRP dealership

515176065

$21.51

11

COVER - Call your local BRP dealership

515176066

$14.63

12

FUSE TOOL - Call your local BRP dealership

515175811

$6.62

13

Fuse, 20 Amperes

409003900

$3.22

13

Fuse, 5 Amperes | CE

278000344

$3.22

13

Fuse, 30 Amperes

410917200

$3.22

13

Fuse 1 A

M42044

$6.37

13

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

16

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

$1.92

17

SCREW-M6X12 - Call your local BRP dealership

M40327

$1.09

18

Battery Wire

605151524

Unavailable

19

HOUSING - Call your local BRP dealership

M28012

$12.77

20

Not Available As Spare Part - Friction Washer

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

22

Protection Cap

570151000

$18.43

23

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

24

Battery Bolt Kit

250000282

$2.95

25

Rubber Bumper

570044700

$10.55

26

COVER - Call your local BRP dealership

605352572

Unavailable

27

STEEL STRIP - Call your local BRP dealership

605352573

Unavailable

28

Hex. Forming Screw M5 X 16

210251650

$0.92
