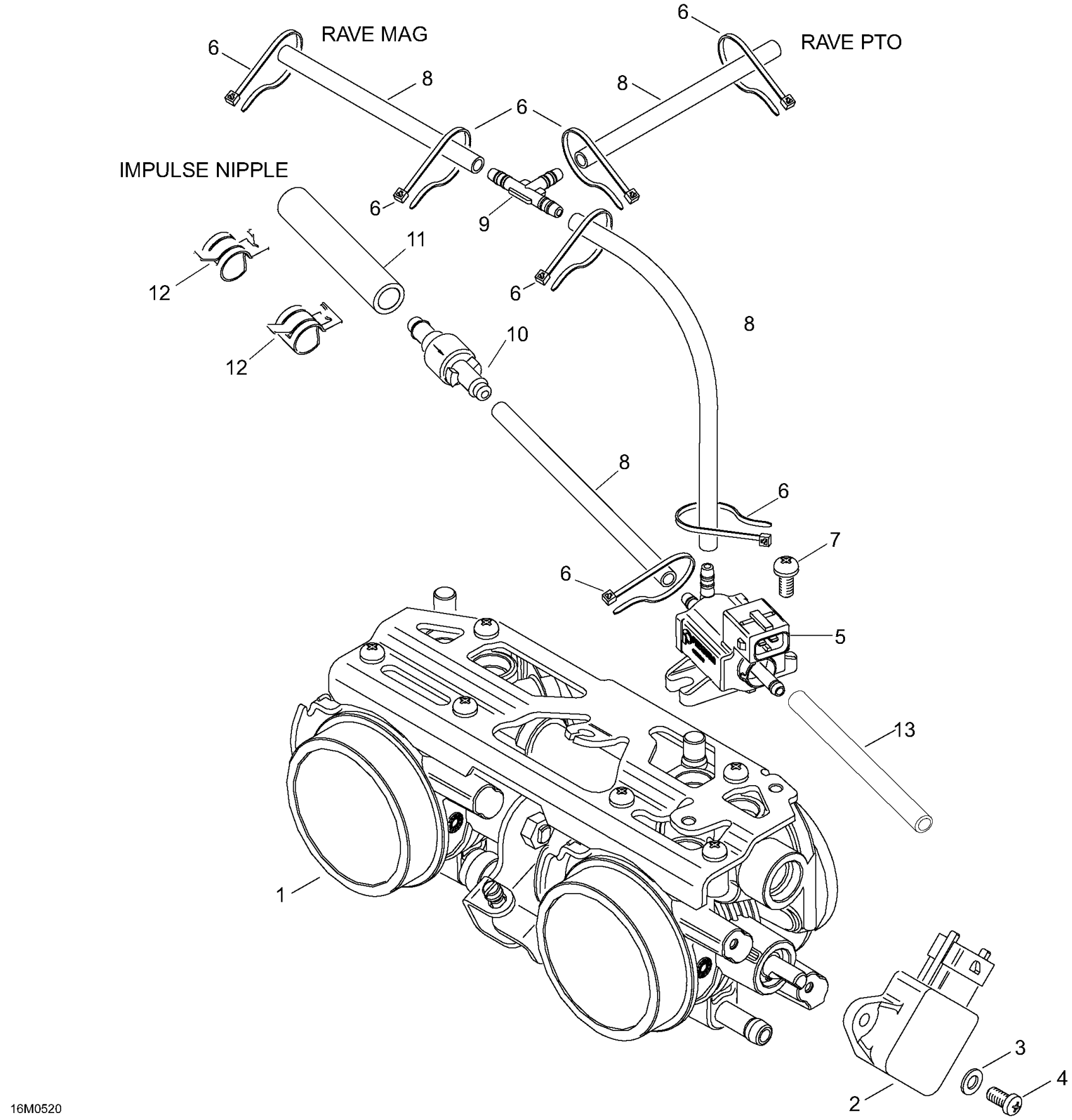

Ski-Doo Expedition 600 H.O. SDI, 2005 Throttle Body Diagram

#

Description

Price

1

Throttle Body

420889195

Unavailable

2

Position Sensor

420866120

$77.97

3

Flat Washer 4 mm, Stainless

234041600

$0.91

4

Phillips Screw M4 X 16

208641660

$0.74

5

Solenoïd Valve

420664630

Unavailable

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

SCREW M5 X 10 - Call your local BRP dealership

420940011

Unavailable

8

High Pressure Air Hose, 180 mm

420660571

$12.55

9

T-Fitting

293710068

$6.59

10

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

11

PRESSURE LINE - Call your local BRP dealership

420660562

Unavailable

12

Norma Spring Clamp

293650214

$15.35

13

High Pressure Air Hose, 180 mm

420660571

$12.55
