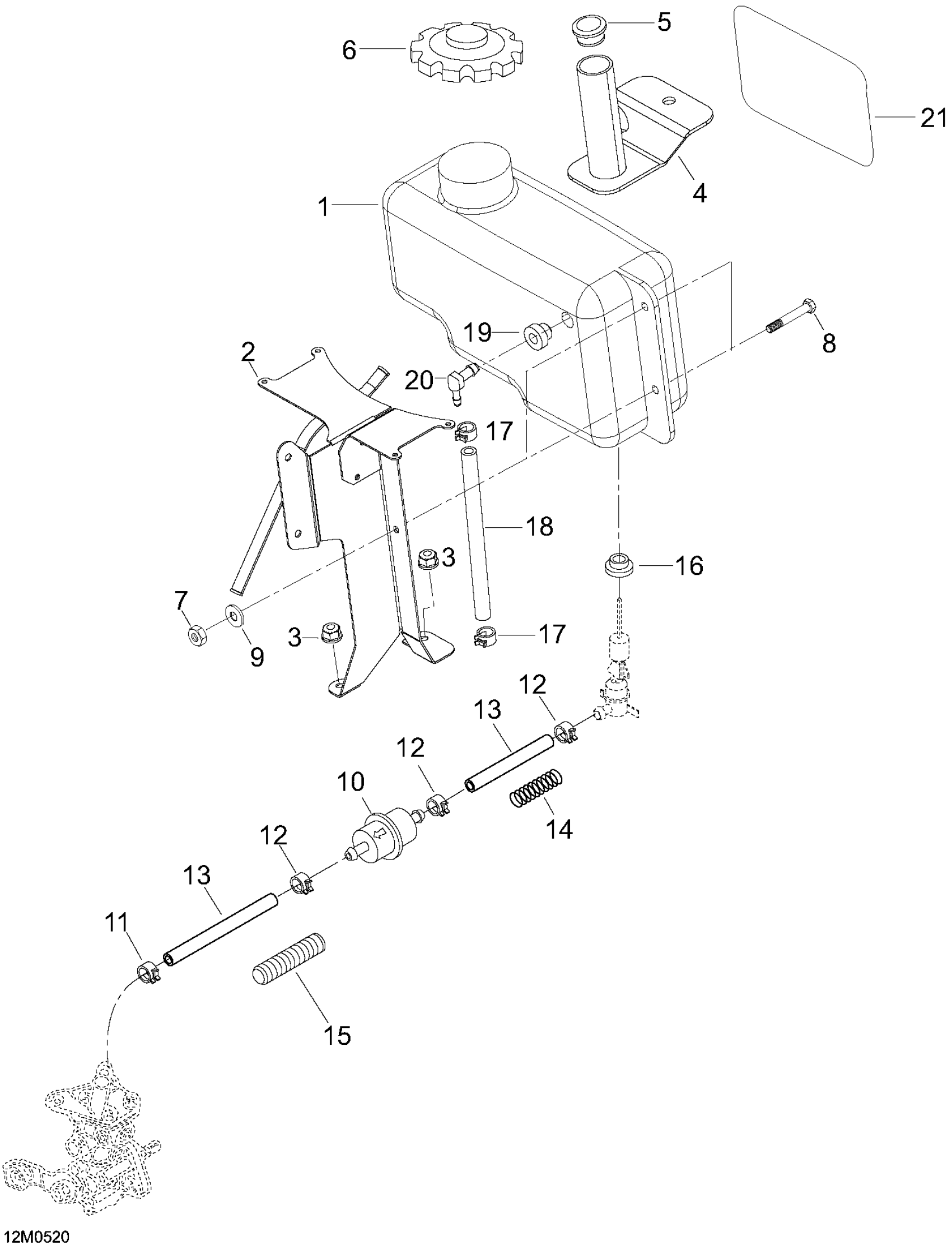

Ski-Doo Expedition 600 H.O. SDI, 2005 Oil System Diagram

#

Description
Price

1

Oil Tank

605351449

Unavailable

2

BRACKET - Call your local BRP dealership

605352356

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

4

BRACKET - Call your local BRP dealership

605351804

Unavailable

5

PLUG - Call your local BRP dealership

M28136

Unavailable

6

CAP - Call your local BRP dealership

519000042

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Hex. Screw M6 X 16

207161644

Unavailable

9

Flat Washer 6 mm

234062410

$0.64

10

Filter

414536500

$3.25

11

Spring Clamp

414420700

Unavailable

12

Spring Clamp

414415200

$0.83

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

14

SPRING - Call your local BRP dealership

519000065

Unavailable

15

HOUSING - Call your local BRP dealership

M28015

Unavailable

16

Insulating Ring

570023000

Unavailable

17

Spring Clamp

414554800

$0.83

18

Polyurethane Hose 10000Mm Long

219704410

Unavailable

19

Grommet

709200285

$8.38

20

Male Connector

414580700

Unavailable

21

Reflecting Sheet

M5443578

Unavailable
