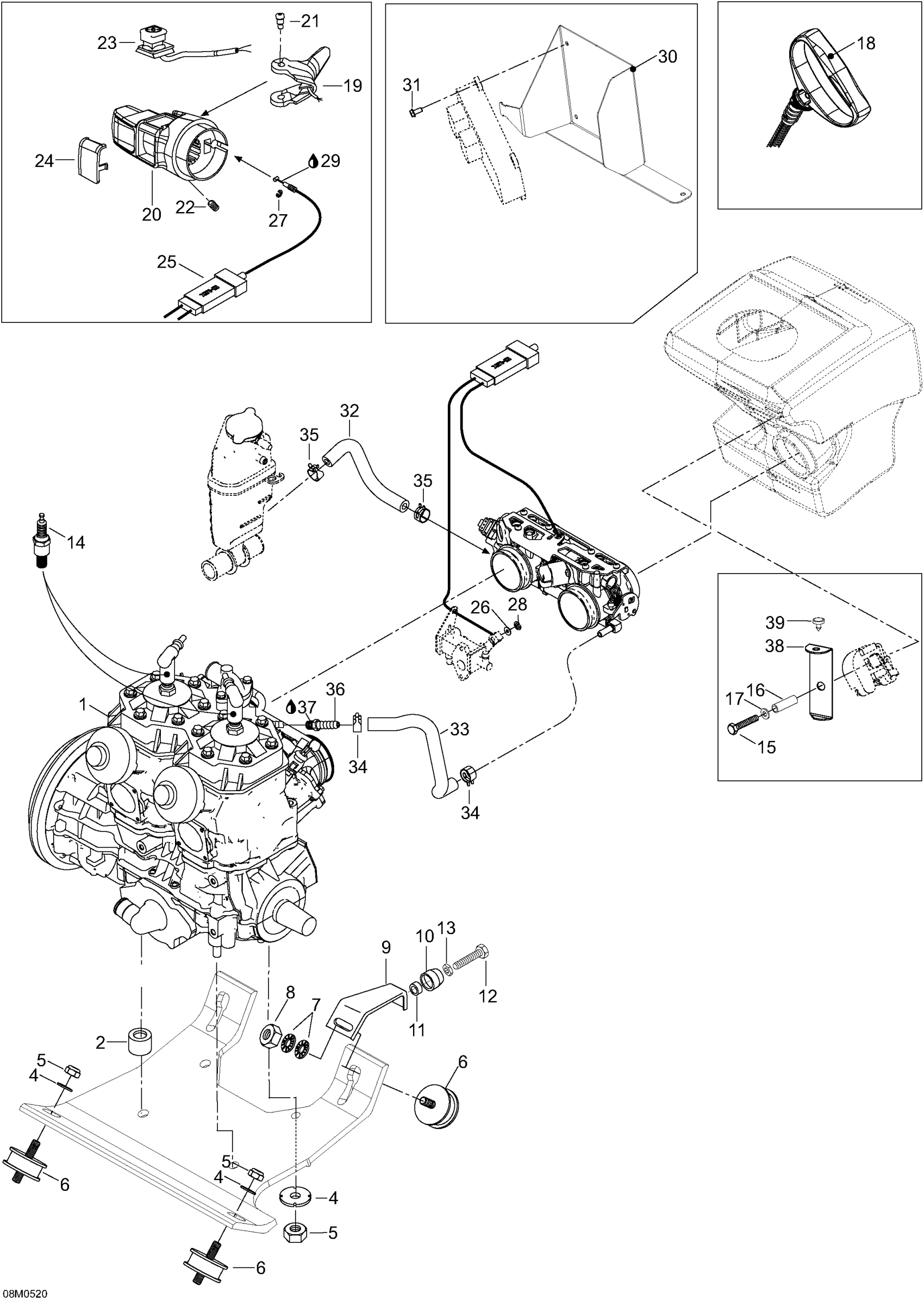

Ski-Doo Expedition 600 H.O. SDI, 2005 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

3

Engine Support

605251437

Unavailable

4

Lock Washer

512056700

$3.11

5

Elastic Locking Nut M10 X 1.5

233601416

$1.68

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Lock Washer D10

20068

$1.97

8

Hex. Nut M10 X 1.5

232006414

$1.11

9

Support

605352447

Unavailable

10

SLEEVE - Call your local BRP dealership

605449240

Unavailable

11

Rubber Washer

M2846014

Unavailable

12

Hex. Screw M8 X 25

M40121

Unavailable

13

NUT - Call your local BRP dealership

M33003

Unavailable

14

Spark Plug NGK BR9ECS

415128524

$9.70

15

SCREW - Call your local BRP dealership

M40193

Unavailable

16

SPACER - Call your local BRP dealership

512059812

Unavailable

17

Lock Washer M6, Black

234161471

$0.52

18

Starter Grip

572084400

$14.54

19

Throttle Handle

512059481

$72.28

20

THROTTLE HOUSING - Call your local BRP dealership

512059763

Unavailable

21

Flange Screw

732601143

$4.02

22

Socket Set Screw M8 X 10

414440800

$4.00

23

Kill Switch

515175410

Unavailable

24

Switch Cover

572100901

$14.54

25

THROTTLE CABLE - Call your local BRP dealership

512059362

Unavailable

26

Flat Washer 8 mm, Nylon

234081100

$1.00

27

Circlip

414753500

$0.59

28

Circlip

M31038

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

30

Support Plate, Ecu

605351707

Unavailable

31

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

32

Hose 8 mm

509000093

Unavailable

33

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

34

Spring Clamp

414655700

$0.68

35

Tridon Gear Clamp

293650170

$1.74

36

Male Connector 1/8"-27 NPT

512060196

Unavailable

37

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

38

SUPPORT, HOOD - Call your local BRP dealership

605352895

Unavailable

39

Plug

605452114

$8.60
