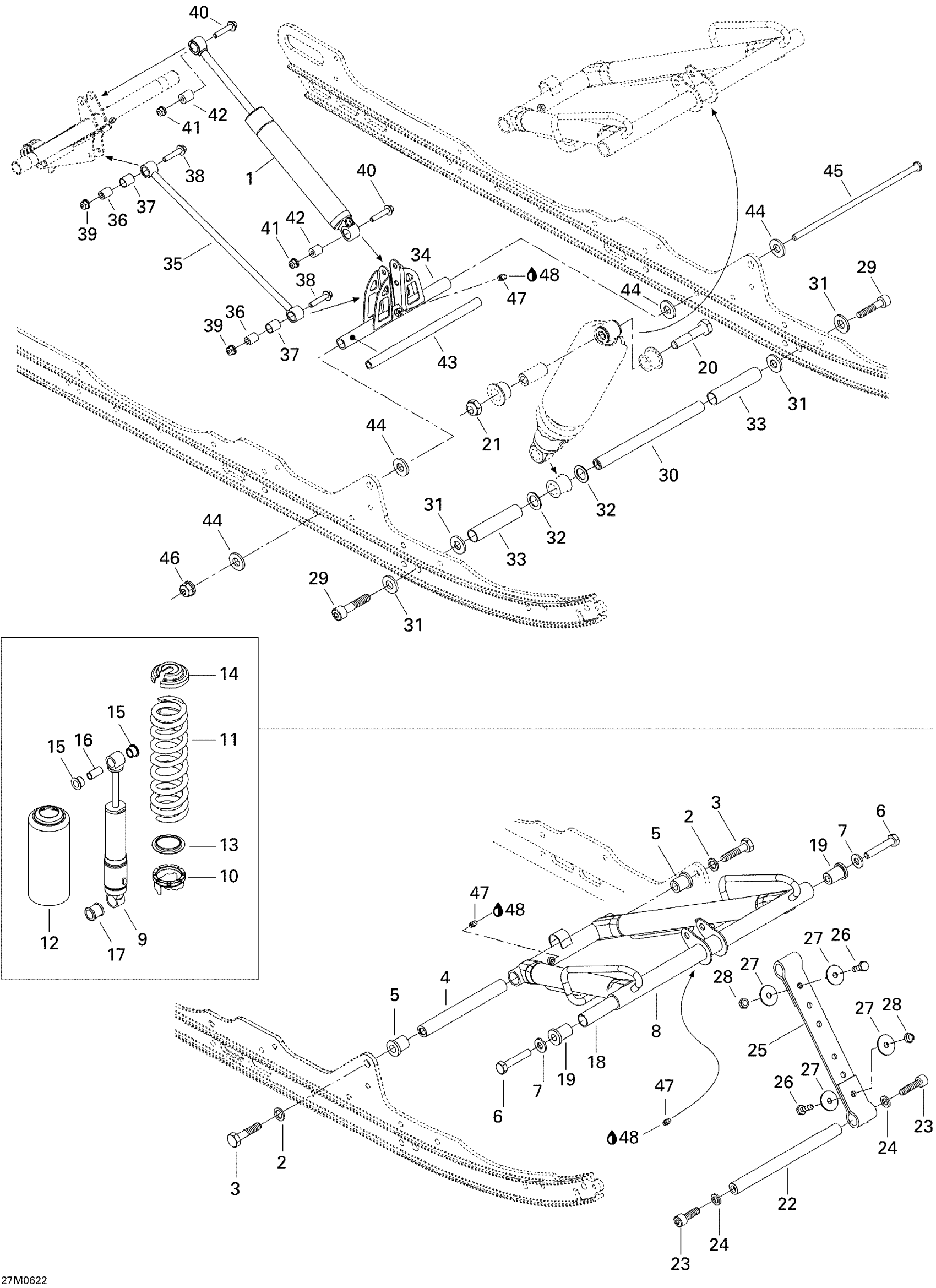

Ski-Doo Expedition 550F, 2006 08- Front Arm Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Except Europe

503191223

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

7

Washer

732900049

$0.58

8

FRONT ARM - Call your local BRP dealership

503191080

Unavailable

9

Center Shock

503190657

Unavailable

10

WASHER - Call your local BRP dealership

505070401

Unavailable

11

SPRING - Call your local BRP dealership

503189325

Unavailable

12

Protector

503193663

$37.99

13

Spring Guide

503187500

$10.49

14

Spring Stopper

706200881

$12.99

15

Urethane Bushing

503189117

$8.19

16

Bushing | Includes 240d to 240d1

503189282

$4.34

17

Bushing

503189271

$13.99

18

SHAFT - Call your local BRP dealership

503190387

Unavailable

19

Bushing

503189324

$14.15

20

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

21

Elastic Stop Nut M10

232500416

$1.90

22

AXLE - Call your local BRP dealership

503189562

Unavailable

23

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

24

Washer

503189564

$0.74

25

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

26

Hex. Flange Screw M8 X 25

207682544

$1.35

27

Flat Washer

224081301

$0.88

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

30

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

31

Washer

503189276

$3.28

32

Washer

503189273

$3.28

33

SPACER - Call your local BRP dealership

503189274

Unavailable

34

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

35

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

36

BUSHING - Call your local BRP dealership

503189133

Unavailable

37

CUSHION - Call your local BRP dealership

503189625

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

$1.48

39

Elastic Flange Nut M8

250100025

$1.48

40

Hex. Flange Screw M8 X 40

207684044

$1.48

41

Elastic Flange Nut M8

250100025

$1.48

42

Bushing

414936000

$13.99

43

Pivot Arm Axle

503189156

$21.99

44

Washer

503189157

$3.28

45

Bolt M8 X 248mm

503192440

$30.49

46

Elastic Flange Nut M8

250100025

$1.48

47

Grease Fitting

408200700

$3.49

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
